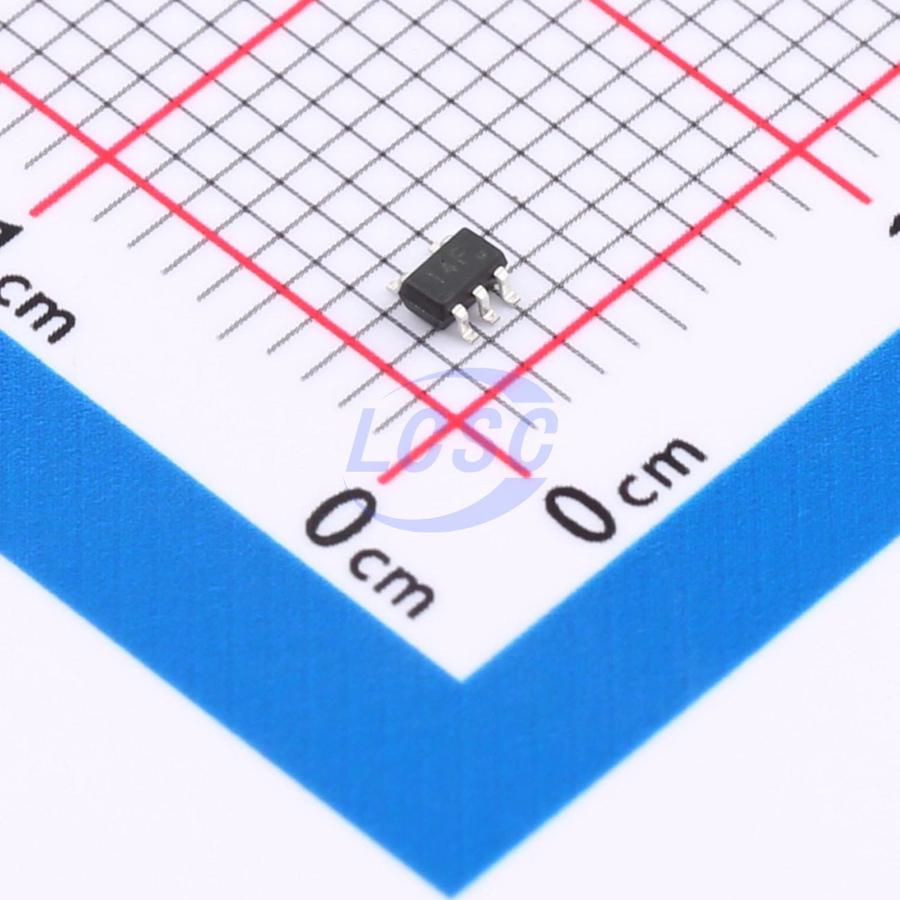

TLV521DCKR(UMW)

11mA 1 3mV 2.9V/ms 1pA 90dB 350nA 6kHz Rail-to-Rail Input, Rail-to-Rail Output SC-70-5 Instrumentation, Op Amps, Buffer Amps

SC-70-5RoHSActive

Micropower, 350nA, RRIO, CMOS Input Operational Amplifier

Manufacturer: UMW
Manufacturer part #: TLV521DCKR(UMW)
Store part #: C22365305
Package / case: SC-70-5
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

3,000 in stock

#C22365305

Stock & price checked 3 days ago

Quantity	Unit price	Pack price
5+	₹27.97	₹139.85
50+	₹21.83	₹1,091.50
150+	₹19.21	₹2,881.50
500+	₹15.93	₹7,965.00
3,000+	₹14.47	₹43,410.00
6,000+	₹13.59	₹81,540.00

Quantity (min 5, multiples of 5)

5 × ₹27.97

₹139.85

excl. GST

₹165.02 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

TLV521DCKR(UMW)

₹139.85 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Output Current: 11mA
Number of Channels: 1
Vos - Input Offset Voltage: 3mV
Slew Rate: 2.9V/ms
Input Offset Current(Ios): 0.05pA
Operating Temperature: -40℃~+125℃
Ib - Input Bias Current: 1pA
Common Mode Rejection Ratio(CMRR): 90dB
Input Offset Voltage Drift(Vos TC): 1.5uV/℃
Quiescent Current: 350nA
Gain Bandwidth Product: 6kHz
Features: EMI filtering/RF suppression
Input Voltage Noise Density: 300nV/√Hz@100Hz
Rail to Rail: Rail-to-Rail Input, Rail-to-Rail Output
Single Supply: 1.7V~5.5V

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Moisture sensitivity: MSL 3 (168 hours)
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.037 g

Overview

The TLV521 350 nA nanopower op amp offers optimum price performance in T's nanopower family of operational amplifiers. The TLV521 has a carefully designed CMOS input stage enabling very low Ibias of 1 pA, thereby reducing IBIAS and 105 errors that would otherwise impact sensitive applications like Megaohm resistance, high- impedance photodiode and charge sense situations. Additionally, built- in EMI protection reduces sensitivity to unwanted RF signals from sources like mobile phones and RFID readers. The TLV521 is offered in the 5- pin SC70 package, and operates from - 40℃ to 125℃

Applications

Wireless Remote Sensors
Powerline Monitoring
Power Meters
Battery Powered Industrial Sensors
Micropower Oxygen Sensor and Toxic Gas Sensor
Active RFID Readers
Zigbee Based Sensors for HVAC Control
Sensor Network Powered by Energy Scavenging
Current Sensing
Glucose Monitoring

Key features

Unmatched Price Performance For VS = 3.3V, Typical Unless Otherwise Noted
Ultra- low Supply Current 350 nA Typical, 500 nA Maximum
Wide Operating Voltage Range 1.7 V to 5.5 V
Low TCVOS 1.5μV/°C
ΔVOS 3mV (Max)
Input Bias Current 1 pA
PSRR 100 dB
CMRR 90 dB
Open- Loop Gain 110 dB
Gain Bandwidth Product 6 kHz
Slew Rate 2.5 V/ms
Input Voltage Noise at f = 100Hz 300nV/√Hz
Temperature Range - 40°C to 125°C
Rail to Rail Input and Output (RRIO)
