TIDatasheet (PDF)

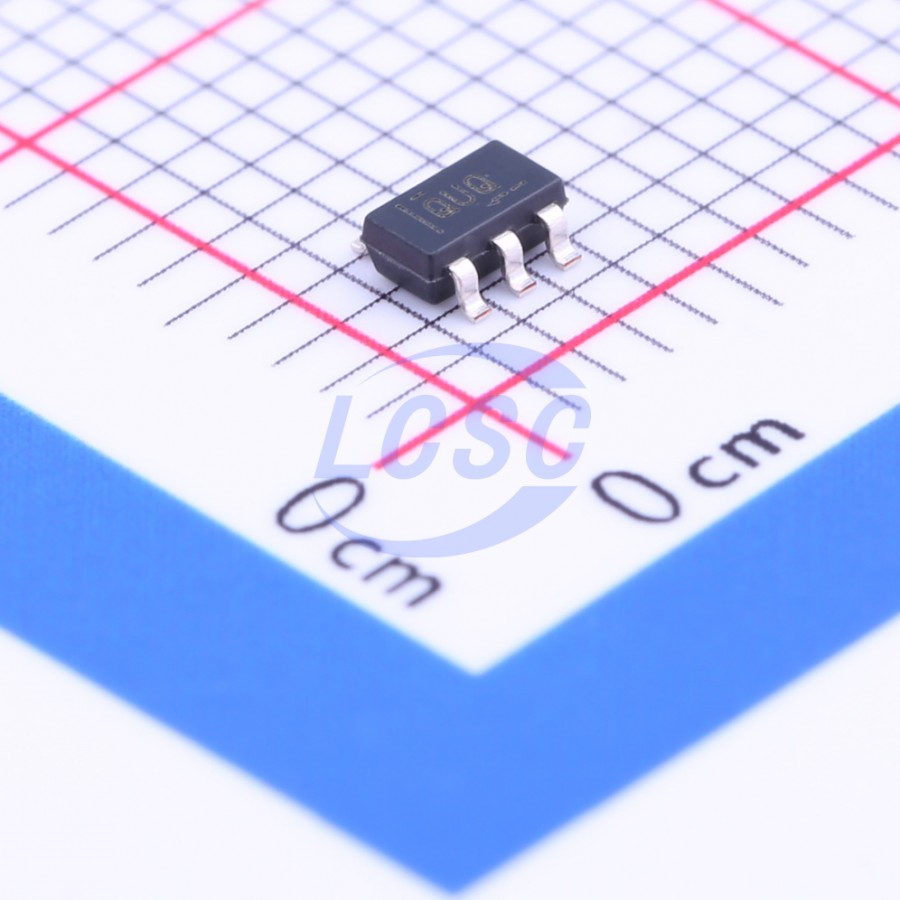

TLV70430DBVR
3V Positive Fixed SOT-23-5 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
SOT-23-5ROHS CompliantActive
150mA, 24V, ultra-low IQ, low-dropout regulator
- Manufacturer
- TI
- Manufacturer part #
- TLV70430DBVR
- Store part #
- C133625
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
241 in stock
#C133625
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹89.28 | ₹89.28 |
| 10+ | ₹74.54 | ₹745.40 |
| 30+ | ₹67.17 | ₹2,015.10 |
| 100+ | ₹60.02 | ₹6,002.00 |
| 500+ | ₹55.47 | ₹27,735.00 |
| 1,000+ | ₹53.30 | ₹53,300.00 |
1 × ₹89.28
₹89.28
excl. GST
₹105.35 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TLV70430DBVR
₹89.28 for 1 + GST
Specifications
- Output Voltage
- 3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Tj)
- Supply Current (Iq)
- 3.4uA
- Output Configuration
- Positive
- Operating Voltage
- 24V
- Output Current
- 150mA
- Features
- Over Current Protection;Enable control
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.033 g
Overview
The TLV704 series of low-dropout (LDO) regulators are ultralow quiescent current devices designed for extremely power-sensitive applications. Quiescent current is virtually constant over the complete load current and ambient temperature range. These devices are an ideal power-management attachment to low-power microcontrollers, such as the MSP430. The TLV704 operates over a wide operating input voltage of 2.5 V to 24 V. Thus, the device is an excellent choice for both battery-powered systems as well as industrial applications that undergo large line transients. The TLV704 is available in a 3-mm × 3-mm SOT23-5 package, which is ideal for cost-effective board manufacturing.
Applications
- Ultralow Power Microcontrollers
- E-Meters
- Fire Alarms and Smoke Detector Systems
- Handset Peripherals
- Industrial and Automotive Applications
- Remote Controllers
- Zigbee Networks
- Portable, Battery-Powered Equipment
Key features
- Wide Input Voltage Range: 2.5 V to 24 V
- Low 3.2–μA Quiescent Current
- Ground Pin Current: 3.4 μA at 100-mA IOUT
- Stable With a Low-ESR, 1 μF Typical Output Capacitor
- Operating Junction Temperature: -40°C to 125°C
- Available in SOT23-5 Package
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TLV70130DBVR#C2870570TI · SOT-23-5 | TI | SOT-23-5 | 9 | ₹206.27 · 9 in stock | View |
 | PJ72AL30SE-A#C41367951PJSEMI · SOT-23-5 | PJSEMI | SOT-23-5 | 500 | ₹10.60 · 500 in stock | View |
| TPS70930QDBVRQ1#C2864240TI · SOT-23-5 | TI | SOT-23-5 | 2,501 | ₹189.28 · 2,501 in stock | View | |
 | TPLP2992IM5X-3.0#C18212638TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 3,445 | ₹15.40 · 3,445 in stock | View |
 | TPNCP718ASN300T1G#C18212641TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 2,815 | ₹14.83 · 2,815 in stock | View |
