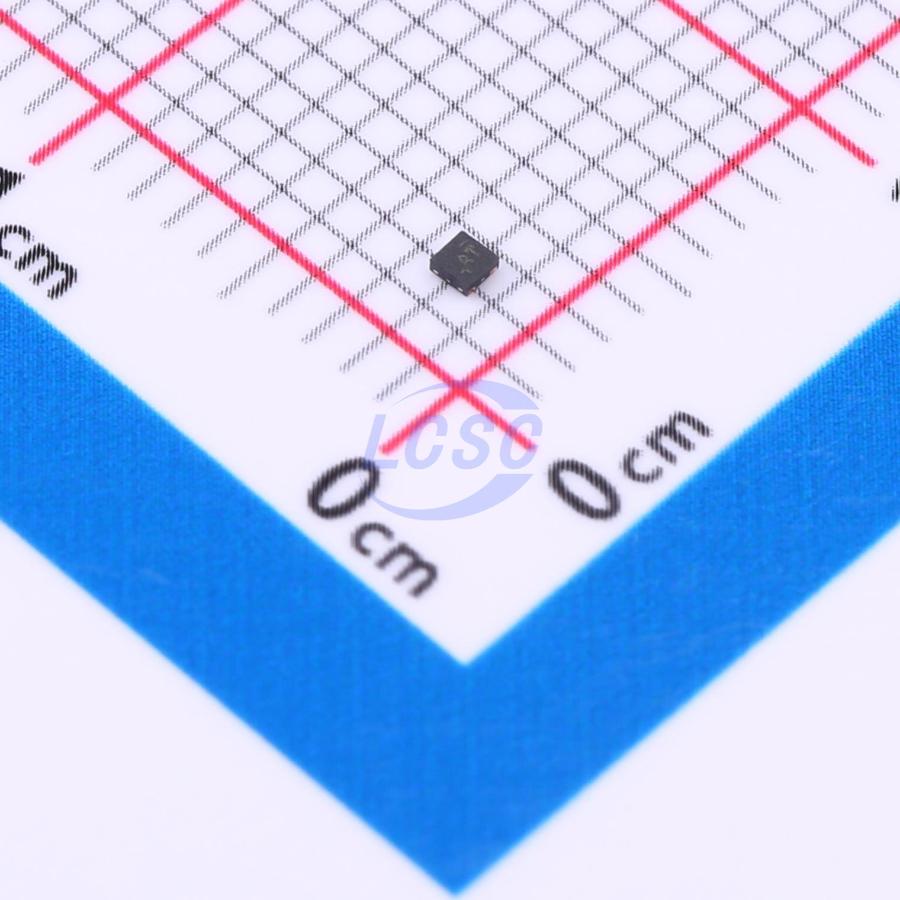

TLV70725PDQNR
Linear Voltage Regulator IC Positive Fixed 1 Output 200mA X2-SON-4-EP(1x1)
X2-SON-4-EP(1x1)ROHS3 CompliantActive
200mA, low IQ, low-dropout regulator with enable and active output discharge functionality
- Manufacturer
- TI
- Manufacturer part #
- TLV70725PDQNR
- Store part #
- C2872472
- Package / case
- X2-SON-4-EP(1x1)
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
260 in stock
#C2872472
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹22.60 | ₹113.00 |
| 50+ | ₹17.77 | ₹888.50 |
| 150+ | ₹15.41 | ₹2,311.50 |
| 500+ | ₹13.30 | ₹6,650.00 |
| 3,000+ | ₹12.73 | ₹38,190.00 |
| 6,000+ | ₹12.38 | ₹74,280.00 |
5 × ₹22.60
₹113.00
excl. GST
₹133.34 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TLV70725PDQNR
₹113.00 for 5 + GST
Specifications
- Output Voltage
- 2.5V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Tj)
- Supply Current (Iq)
- 50uA
- Output Configuration
- Positive
- Operating Voltage
- 5.5V
- Output Current
- 200mA
- Output Type
- Fixed
- Features
- Enable control;Output discharge;Thermal shutdown;Over Current Protection
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.074 g
Overview
The TLV707 series (TLV707 and TLV707P) LDO regulators feature low quiescent current and excellent line and load transient performance, making them ideal for power-sensitive applications. These devices offer a typical accuracy of 0.5%. All versions include thermal shutdown and overcurrent protection for safety. Additionally, these devices remain stable with an effective output capacitance of only 0.1μF. This allows the use of cost-effective capacitors with higher bias voltage and temperature derating. These devices also regulate to rated accuracy under no-load conditions. Furthermore, the TLV707P provides an active pull-down circuit for fast output discharge. The TLV707 series LDOs are available in a 1mm × 1mm DQN (X2SON) package, making them suitable for handheld applications.
Applications
- Smartphones and wireless earphones
- Gaming and toys
- WLAN and other PC add-in cards
- TV and set-top boxes
- Wearable electronics
Key features
- Typical accuracy: 0.5%
- 200mA output support
- Low IQ: 25μA
- Fixed output voltage combinations from 0.85V to 5.0V
- High PSRR:
- 70dB at 100Hz
- 50dB at 1MHz
- Stable with 0.1μF ceramic capacitor
- Thermal shutdown and overcurrent protection
- Package: 1mm × 1mm DQN (X2SON)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TLV70725DQNR#C2869017TI · X2-SON-4-EP(1x1) | TI | X2-SON-4-EP(1x1) | 55 | ₹10.66 · 55 in stock | View |
| NCP115CMX250TCG#C603508onsemi · XDFN-4-EP(1x1) | onsemi | XDFN-4-EP(1x1) | 180 | ₹26.78 · 180 in stock | View | |
 | NCP115AMX250TCG#C892044onsemi · XDFN-4-EP(1x1) | onsemi | XDFN-4-EP(1x1) | 395 | ₹25.68 · 395 in stock | View |
 | NCP114BMX250TCG#C603498onsemi · XDFN-4-EP(1x1) | onsemi | XDFN-4-EP(1x1) | 1,000 | ₹29.86 · 1,000 in stock | View |
 | NCP114AMX250TBG#C892022onsemi · UDFN-4-EP(1x1) | onsemi | UDFN-4-EP(1x1) | 670 | ₹17.25 · 670 in stock | View |
