TIDatasheet (PDF)

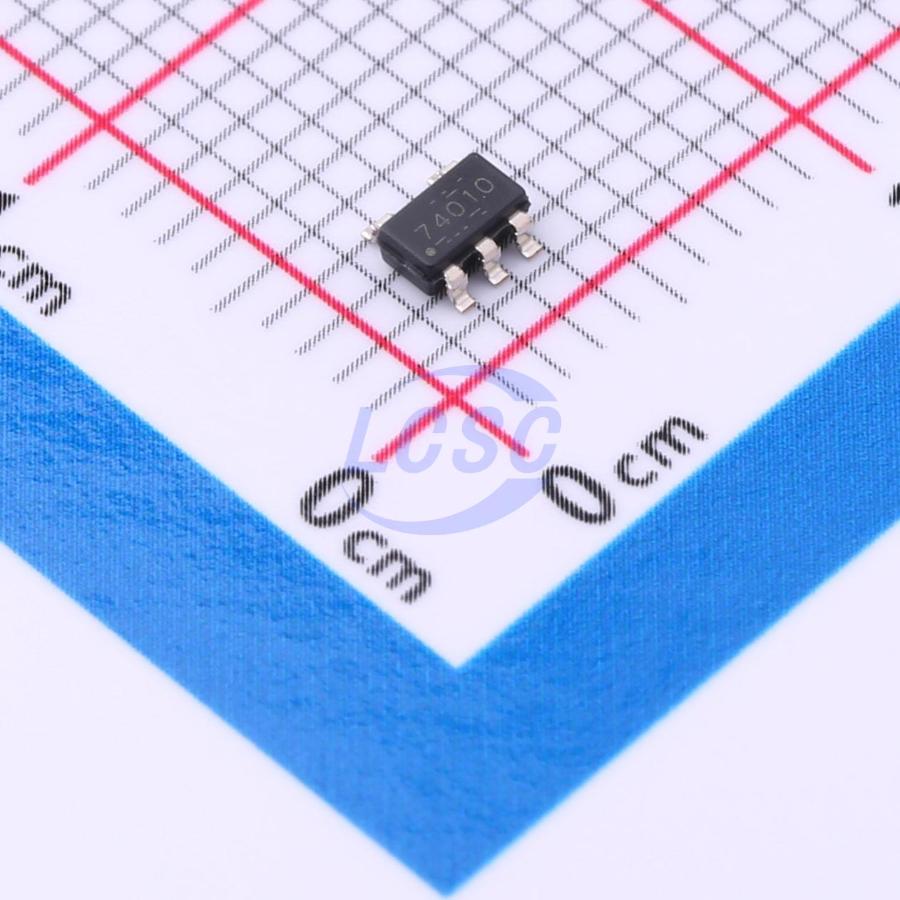

TLV74010PDBVR
Linear Voltage Regulator IC Positive Fixed 1 Output 300mA SOT-23
SOT-23ROHS3 CompliantActive
300mA Low Dropout (LDO) Regulator with Foldback Current Limiting
- Manufacturer
- TI
- Manufacturer part #
- TLV74010PDBVR
- Store part #
- C880338
- Package / case
- SOT-23
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
905 in stock
#C880338
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹9.63 | ₹48.15 |
| 50+ | ₹7.99 | ₹399.50 |
| 150+ | ₹7.14 | ₹1,071.00 |
| 500+ | ₹6.44 | ₹3,220.00 |
| 3,000+ | ₹6.20 | ₹18,600.00 |
| 6,000+ | ₹6.03 | ₹36,180.00 |
5 × ₹9.63
₹48.15
excl. GST
₹56.82 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TLV74010PDBVR
₹48.15 for 5 + GST
Specifications
- Output Voltage
- 1V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃@(Tj)
- Supply Current (Iq)
- 50uA
- Output Configuration
- Positive
- Operating Voltage
- 5.5V
- Output Current
- 300mA
- Features
- Enable control;Over Current Protection;Output discharge;Input under-voltage protection;Thermal shutdown
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.069 g
Overview
The TLV740P low-dropout (LDO) linear regulator is a low quiescent current LDO with excellent line and load transient performance, designed for power-sensitive applications. It provides a typical accuracy of 1%. It also offers inrush current control during device power-up and enable events, limiting input current to a defined current threshold to prevent excessive current draw from the input supply. Available in standard DQN and DBV packages, it also features an active pull-down circuit for rapid output load discharge.
Applications
- Portable media players
- General-purpose laptops
- Streaming media players
- Home printers
- STB and DVR
Key features
- Foldback overcurrent protection
- Package: 1mm×1mm 4-pin X2SON, 5-pin SOT-23
- Ultra-low dropout: 460mV at 300mA
- Accuracy: 1%
- Low IQ: 50μA
- Input voltage range: 1.4V to 5.5V
- Fixed output voltage options: 1V to 3.3V
- High PSRR: 65dB at 1kHz
- Active output discharge
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | AP7333-10SAG-7#C5244398DIODES · SOT-23 | DIODES | SOT-23 | On request | ₹15.62 · 0 in stock | View |
| AP2127N-1.0TRG1#C6125561DIODES · SOT-23-3 | DIODES | SOT-23-3 | On request | ₹20.92 · 0 in stock | View | |
