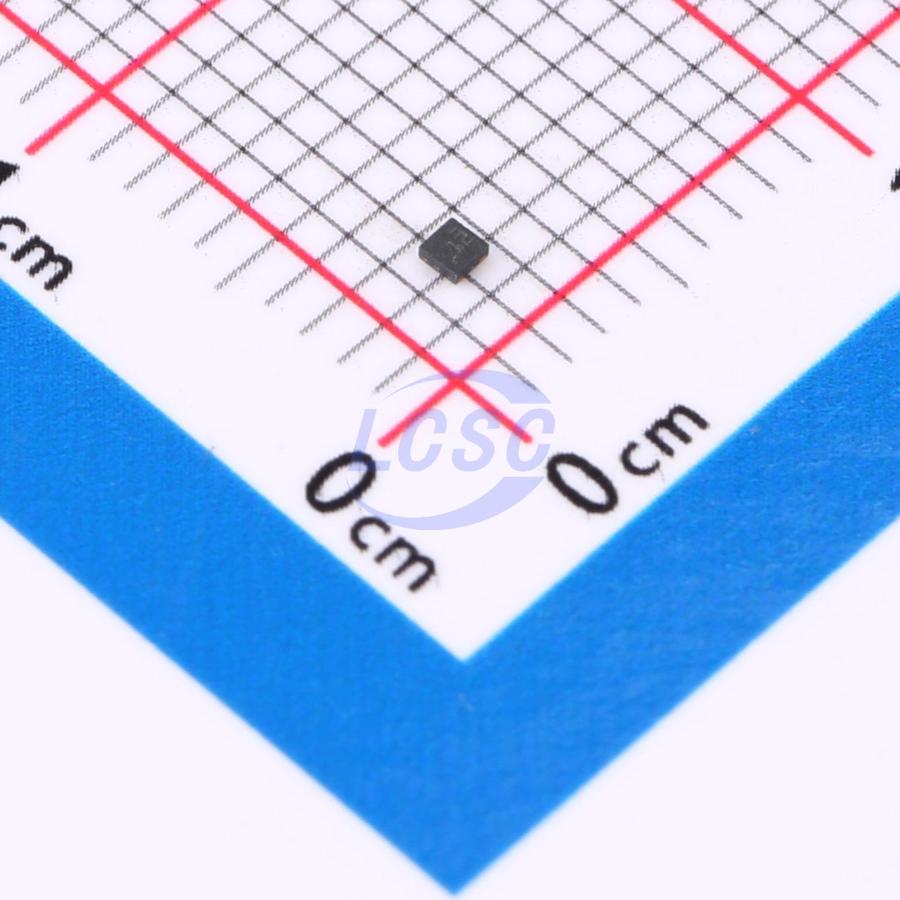

TLV74012PDQNR
Linear Voltage Regulator IC Positive Fixed 1 Output 300mA X2-SON-4(1x1)
X2-SON-4(1x1)ROHS CompliantActive
300mA Low Dropout (LDO) Regulator with Foldback Current Limiting
- Manufacturer
- TI
- Manufacturer part #
- TLV74012PDQNR
- Store part #
- C3744797
- Package / case
- X2-SON-4(1x1)
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
450 in stock
#C3744797
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹4.30 | ₹43.00 |
| 100+ | ₹4.21 | ₹421.00 |
| 300+ | ₹4.15 | ₹1,245.00 |
| 1,000+ | ₹4.09 | ₹4,090.00 |
10 × ₹4.30
₹43.00
excl. GST
₹50.74 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TLV74012PDQNR
₹43.00 for 10 + GST
Specifications
- Output Voltage
- 1.2V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃@(Tj)
- Supply Current (Iq)
- 50uA
- Output Configuration
- Positive
- Operating Voltage
- 5.5V
- Output Current
- 300mA
- Features
- Over Current Protection;Enable control;Output discharge;Input under-voltage protection;Thermal shutdown
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.065 g
Overview
The TLV740P low-dropout (LDO) linear regulator is a low quiescent current LDO with excellent line and load transient performance, designed for power-sensitive applications. It provides a typical accuracy of 1%. It also offers inrush current control during device power-up and enable events, limiting input current to a defined current threshold to prevent excessive current draw from the input supply. Available in standard DQN and DBV packages, it also features an active pull-down circuit for rapid output load discharge.
Applications
- Portable media players
- General-purpose laptops
- Streaming media players
- Home printers
- STB and DVR
Key features
- Foldback overcurrent protection
- Package: 1mm×1mm 4-pin X2SON, 5-pin SOT-23
- Ultra-low dropout: 460mV at 300mA
- Accuracy: 1%
- Low IQ: 50μA
- Input voltage range: 1.4V to 5.5V
- Fixed output voltage options: 1V to 3.3V
- High PSRR: 65dB at 1kHz
- Active output discharge
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | NCP115AMX120TCG#C603500onsemi · XDFN-4-EP(1x1) | onsemi | XDFN-4-EP(1x1) | 485 | ₹41.49 · 485 in stock | View |
 | NCP115CMX120TCG#C603506onsemi · XDFN-4-EP(1x1) | onsemi | XDFN-4-EP(1x1) | 60 | ₹13.11 · 60 in stock | View |
 | NCP114AMX120TCG#C179593onsemi · UDFN-4(1x1) | onsemi | UDFN-4(1x1) | 150 | ₹19.05 · 150 in stock | View |
 | WL2836D12-4/TR#C2931315WILLSEMI · DFN1x1-4L | WILLSEMI | DFN1x1-4L | 4,765 | ₹12.22 · 4,765 in stock | View |
 | ETA5053V120DF1E#C7465530etasolution · DFN1x1-4 | etasolution | DFN1x1-4 | 8,035 | ₹7.81 · 8,035 in stock | View |
