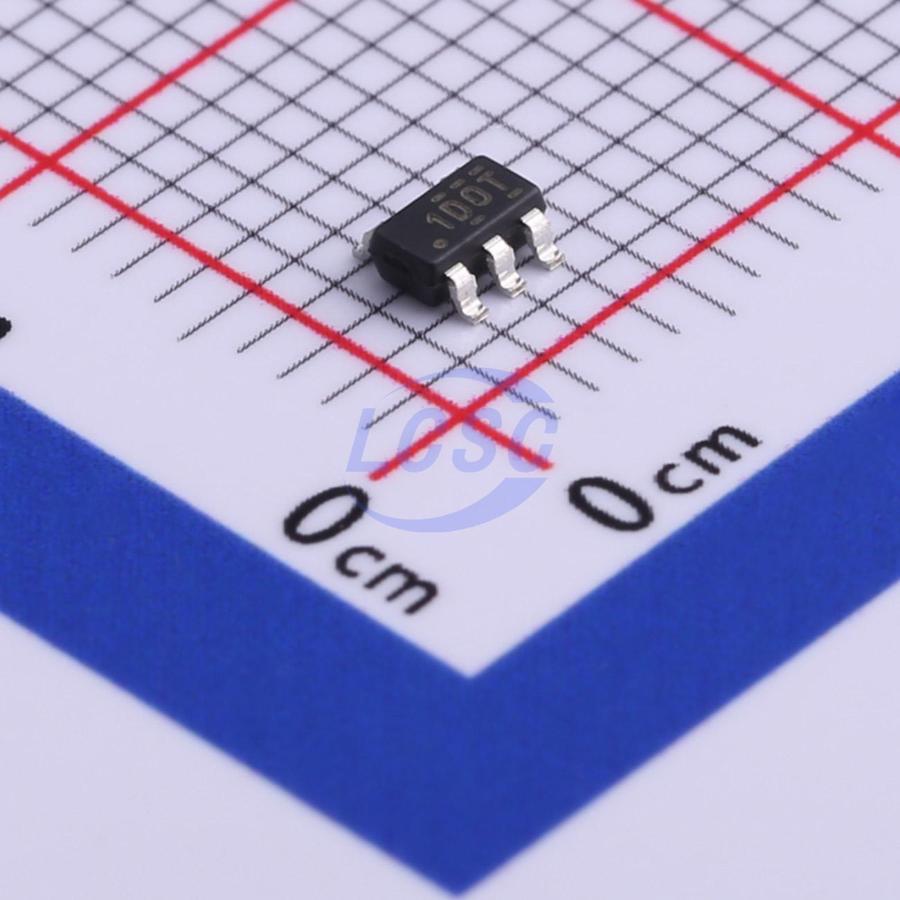

TLV74130PDBVR
3V Positive Fixed SOT-23-5 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
SOT-23-5ROHS3 CompliantActive
150mA, low-dropout regulator with active output discharge and enable functionality
- Manufacturer
- TI
- Manufacturer part #
- TLV74130PDBVR
- Store part #
- C485134
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
435 in stock
#C485134
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹11.35 | ₹56.75 |
| 50+ | ₹9.09 | ₹454.50 |
| 150+ | ₹7.95 | ₹1,192.50 |
| 500+ | ₹7.10 | ₹3,550.00 |
| 3,000+ | ₹6.42 | ₹19,260.00 |
| 6,000+ | ₹6.07 | ₹36,420.00 |
5 × ₹11.35
₹56.75
excl. GST
₹66.97 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TLV74130PDBVR
₹56.75 for 5 + GST
Specifications
- Output Voltage
- 3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Tj)
- Supply Current (Iq)
- 50uA
- Output Configuration
- Positive
- Operating Voltage
- 5.5V
- Output Current
- 150mA
- Features
- Enable control;Input under-voltage protection;Output discharge;Over Current Protection;Short Circuit Protection;Thermal shutdown
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.058 g
Overview
The TLV741P low-dropout linear regulator (LDO) is a low quiescent current device with excellent line and load transient performance for power-sensitive applications. This device provides a typical accuracy of 1%. The TLV741P is designed to be stable with a small, output capacitor. The TLV741P provides inrush current control during device power up and enabling. The TLV741P limits the input current to the defined current limit to avoid large currents from flowing from the input power source. This functionality is especially important in battery-operated devices. The TLV741P is available in standard DBV (SOT-23) and DQN (X2SON) packages. The TLV741P provides an active pulldown circuit to quickly discharge output loads.
Applications
- PDAs and Battery-Powered Portable Devices
- MP3 Players and Other Hand-Held Products
- WLAN and Other PC Add-On Cards
Key features
- Input Voltage Range: 1.4 V to 5.5 V
- Stable Operation With 1-μF Ceramic Capacitors
- Foldback Overcurrent Protection
- Very Low Dropout: 230 mV at 150 mA
- Accuracy: 1%
- Low IQ: 50 μA
- Available in Fixed-Output Voltages: 1 V to 3.3 V
- High PSRR: 65 dB at 1 kHz
- Active Output Discharge (P Version Only)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TLV71330PDBVR#C2863702TI · SOT-23-5 | TI | SOT-23-5 | 130 | ₹30.88 · 130 in stock | View |
 | TLV71330PDBVT#C2866657TI · SOT-23-5 | TI | SOT-23-5 | 245 | ₹44.77 · 245 in stock | View |
 | MIC5365-3.0YD5-TR#C626097MICROCHIP · TSOT-23-5 | MICROCHIP | TSOT-23-5 | 320 | ₹69.01 · 320 in stock | View |
 | TPS79930DDCR#C201712TI · TSOT-23-5 | TI | TSOT-23-5 | 10 | ₹81.75 · 10 in stock | View |
 | TPS79930DDCT#C523773TI · TSOT-23-5 | TI | TSOT-23-5 | 18 | ₹135.58 · 18 in stock | View |
