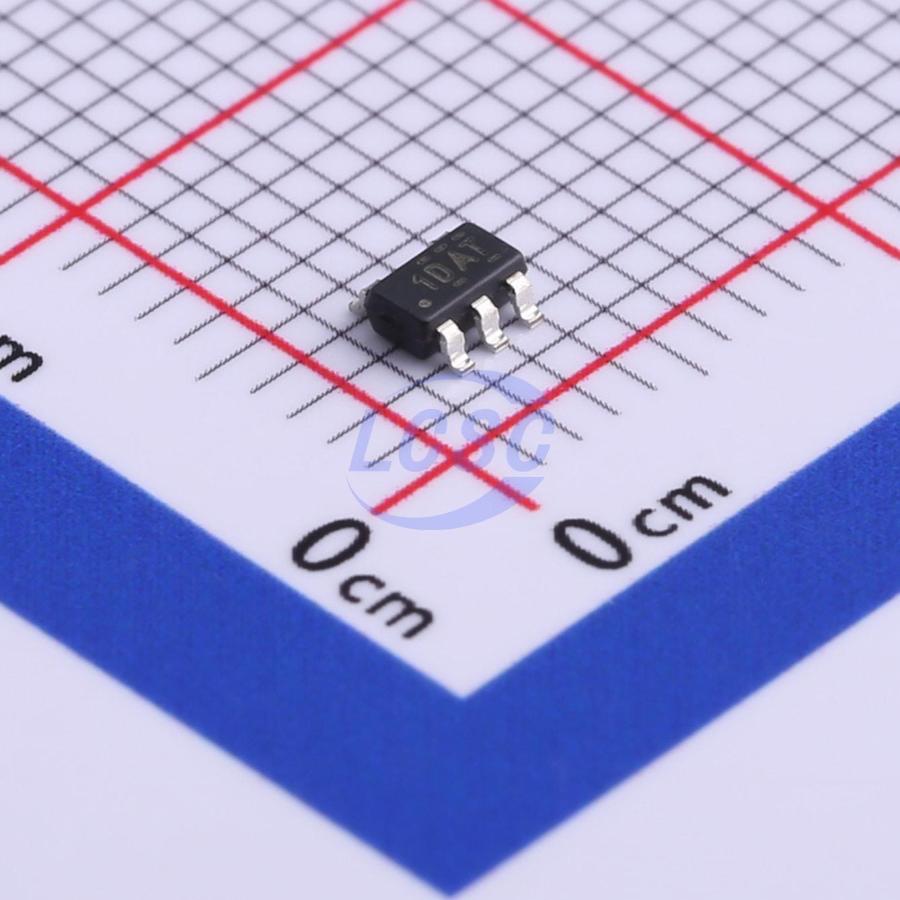

TLV74311PDBVR

1.1V Positive Fixed SOT-23-5 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS

SOT-23-5ROHS3 CompliantActive

300mA, low IQ, low dropout regulator with enable function

Manufacturer: TI
Manufacturer part #: TLV74311PDBVR
Store part #: C485147
Package / case: SOT-23-5
Category: Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,580 in stock

#C485147

Stock & price checked 9 days ago

Quantity	Unit price	Pack price
5+	₹12.42	₹62.10
50+	₹9.92	₹496.00
150+	₹8.67	₹1,300.50
500+	₹7.73	₹3,865.00
3,000+	₹6.97	₹20,910.00
6,000+	₹6.60	₹39,600.00

Quantity (min 5, multiples of 5)

5 × ₹12.42

₹62.10

excl. GST

₹73.28 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

TLV74311PDBVR

₹62.10 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Output Voltage: 1.1V
Number of Outputs: 1
Operating Temperature: -40℃~+125℃@(Tj)
Supply Current (Iq): 34uA
Output Configuration: Positive
Operating Voltage: 5.5V
Output Current: 300mA
Features: Enable control;Input under-voltage protection;Output discharge;Over Current Protection;Short Circuit Protection;Thermal shutdown
Output Type: Fixed

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
Moisture sensitivity: MSL 1 (unlimited)
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.025 g

Overview

The TLV743P low-dropout linear regulator (LDO) is an ultra-small, low quiescent current LDO that sources 300 mA with good line and load transient performance. The device provides a typical accuracy of 1%. The TLV743P is designed to be stable with a small output capacitor with a value of 1 μF. The TLV743P device provides foldback current control during device power up and enabling. This functionality is especially important in battery-operated devices. The TLV743P provides an active pulldown circuit to quickly discharge output loads when the device is disabled. The TLV743P is available in standard DBV (SOT-23) and DQN (X2SON) packages.

Applications

Tablets
Smartphones
Notebook and Desktop Computers
Portable Industrial and Consumer Products
WLAN and Other PC Add-On Cards
Camera Modules

Key features

Input Voltage Range: 1.4 V to 5.5 V
Stable Operation With 1-μF Ceramic Output Capacitor
Foldback Overcurrent Protection
Packages: SOT-23 (5), X2SON (4)
Very Low Dropout: 125 mV at 300 mA (3.3 VOUT)
Accuracy: 1% (Typical), 1.4% (Maximum)
Low IQ: 34 μA
Available in Fixed-Output Voltages: 1 V to 3.3 V
High PSRR: 50 dB at 1 kHz
Active Output Discharge
