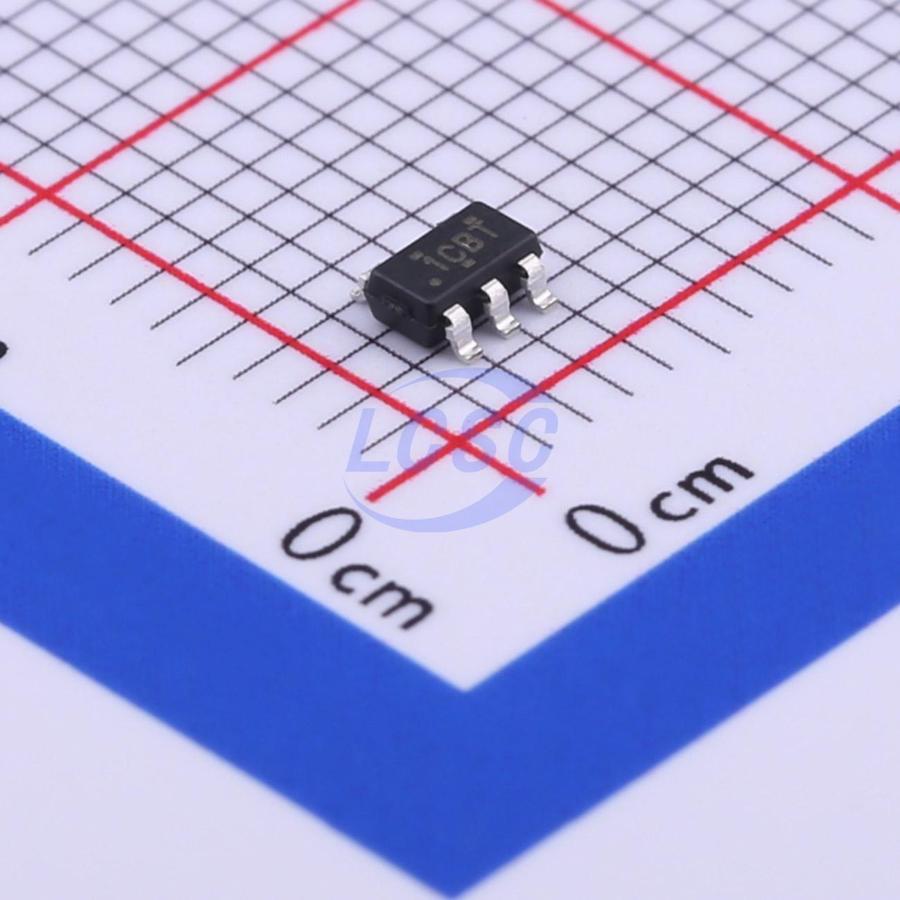

TLV74333PDBVR

3.3V Positive Fixed SOT-23-5 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS

SOT-23-5ROHS3 CompliantActive

300mA, low IQ, low dropout regulator with enable function

Manufacturer: TI
Manufacturer part #: TLV74333PDBVR
Store part #: C408972
Package / case: SOT-23-5
Category: Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

17,030 in stock

#C408972

Stock & price checked 4 days ago

Quantity	Unit price	Pack price
10+	₹11.54	₹115.40
100+	₹9.47	₹947.00
300+	₹8.44	₹2,532.00
3,000+	₹7.24	₹21,720.00
6,000+	₹6.62	₹39,720.00
9,000+	₹6.31	₹56,790.00

Quantity (min 10, multiples of 10)

10 × ₹11.54

₹115.40

excl. GST

₹136.17 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

TLV74333PDBVR

₹115.40 for 10 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Output Voltage: 3.3V
Number of Outputs: 1
Operating Temperature: -40℃~+125℃@(Tj)
Supply Current (Iq): 34uA
Output Configuration: Positive
Operating Voltage: 5.5V
Output Current: 300mA
Features: Enable control;Input under-voltage protection;Output discharge;Over Current Protection;Short Circuit Protection;Thermal shutdown
Output Type: Fixed

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
Moisture sensitivity: MSL 1 (unlimited)
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 10 (multiples of 10)
Unit weight: 0.013 g

Overview

The TLV743P low-dropout linear regulator (LDO) is an ultra-small, low quiescent current LDO that sources 300 mA with good line and load transient performance. The device provides a typical accuracy of 1%. The TLV743P is designed to be stable with a small output capacitor with a value of 1 μF. The TLV743P device provides foldback current control during device power up and enabling. This functionality is especially important in battery-operated devices. The TLV743P provides an active pulldown circuit to quickly discharge output loads when the device is disabled. The TLV743P is available in standard DBV (SOT-23) and DQN (X2SON) packages.

Applications

Tablets
Smartphones
Notebook and Desktop Computers
Portable Industrial and Consumer Products
WLAN and Other PC Add-On Cards
Camera Modules

Key features

Input Voltage Range: 1.4 V to 5.5 V
Stable Operation With 1-μF Ceramic Output Capacitor
Foldback Overcurrent Protection
Packages: SOT-23 (5), X2SON (4)
Very Low Dropout: 125 mV at 300 mA (3.3 VOUT)
Accuracy: 1% (Typical), 1.4% (Maximum)
Low IQ: 34 μA
Available in Fixed-Output Voltages: 1 V to 3.3 V
High PSRR: 50 dB at 1 kHz
Active Output Discharge

Alternatives

Similar parts — check the datasheet before substituting.

	Manufacturer	Package	Stock	Price from (excl. GST)	Action
TLV73333PQDBVRQ1#C2862550TI · SOT-23-5	TI	SOT-23-5	8,552	₹51.39 · 8,552 in stock	View
TLV73333PDBVT#C2865116TI · SOT-23-5	TI	SOT-23-5	142	₹96.65 · 142 in stock	View
TLV73333PDBVR#C134139TI · SOT-23-5	TI	SOT-23-5	43,920	₹13.49 · 43,920 in stock	View
SK6014AS5-33#C2682751Suntek · SOT-23-5	Suntek	SOT-23-5	2,010	₹12.54 · 2,010 in stock	View
RT9013-33GB#C47773RICHTEK · SOT-23-5	RICHTEK	SOT-23-5	64,335	₹19.08 · 64,335 in stock	View
