MSKSEMI

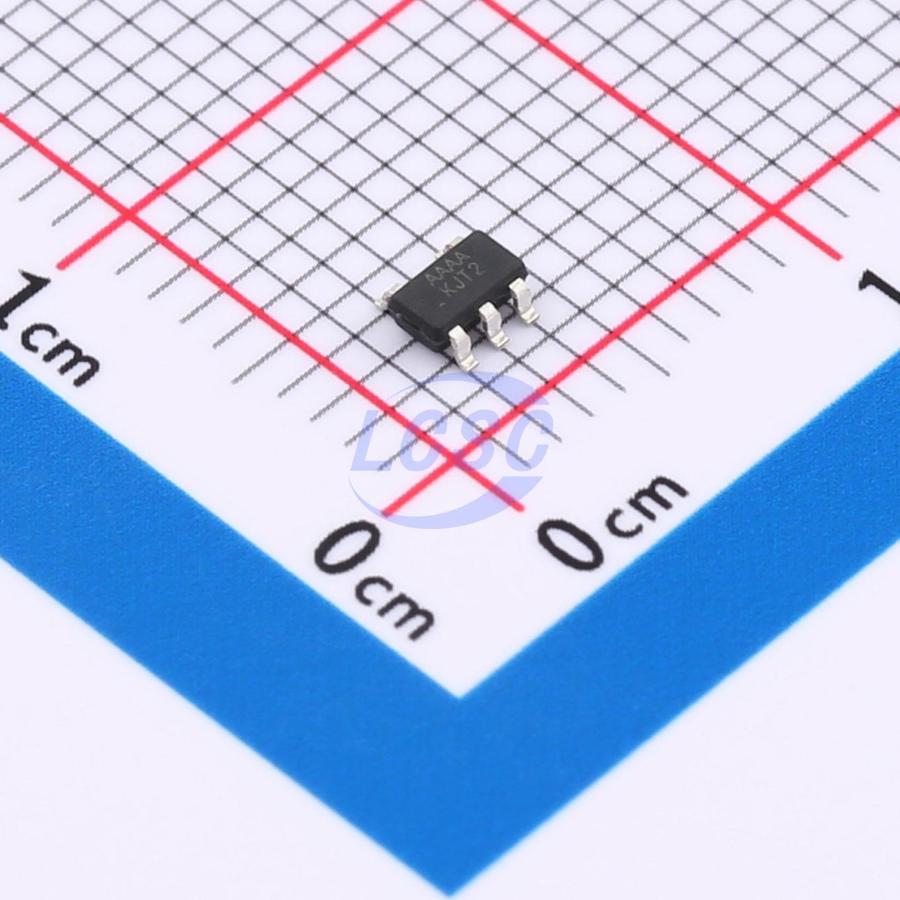

TLV75533PDBVR-MS

Linear Voltage Regulator IC Positive Fixed 1 Output 600mA SOT-23-5

SOT-23-5RoHSActive

Low-dropout converter, wide voltage input range

Manufacturer: MSKSEMI
Manufacturer part #: TLV75533PDBVR-MS
Store part #: C30197532
Package / case: SOT-23-5
Category: Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,875 in stock

#C30197532

Stock & price checked 4 days ago

Quantity	Unit price	Pack price
5+	₹19.73	₹98.65
50+	₹15.33	₹766.50
150+	₹13.45	₹2,017.50
500+	₹11.11	₹5,555.00
2,500+	₹10.50	₹26,250.00
5,000+	₹9.88	₹49,400.00

Quantity (min 5, multiples of 5)

5 × ₹19.73

₹98.65

excl. GST

₹116.41 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

TLV75533PDBVR-MS

₹98.65 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Output Voltage: 3.3V
Number of Outputs: 1
Operating Temperature: -40℃~+125℃@(Tj)
Supply Current (Iq): 2uA
Output Configuration: Positive
Operating Voltage: 6V
Output Current: 600mA
Output Type: Fixed
Features: Enable control;Over Current Protection;Short Circuit Protection;Thermal shutdown

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Moisture sensitivity: MSL 3 (168 hours)
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.04 g

Overview

The TLV755XXPDBVR-MS series is a family of low-dropout (LDO) regulators featuring a wide input voltage range of 1.2V to 6V, low dropout voltage, low power consumption, and compact packaging. The TLV755XXPDBVR-MS offers an ultra-low quiescent current of 2µA, making it particularly well-suited for battery-powered devices and long-term standby applications — helping reduce system standby power consumption while effectively extending standby time and battery life. The TLV755XXPDBVR-MS is available in a version with an EN enable pin; pulling EN low enters shutdown mode, in which quiescent current drops to as low as 10nA (typical). The TLV755XXPDBVR-MS series supports ceramic output capacitors and operates stably across a wide input voltage range of 1.2V to 6V with output load currents from 0mA to 600mA.

Applications

Handheld, battery-powered devices
Low-power microprocessors
Laptops, palmtop computers, and PDAs
Wireless communication devices
Audio/video equipment
Automotive navigation systems

Key features

2µA quiescent current (no load)
±2% output voltage accuracy
600mA output current capability
10nA shutdown current (optional version)
Wide input voltage range: 1.2V to 6V
Low dropout: 0.32V (at ΔVO = 3.3V / Io = 600mA)
Fixed output voltage options: 1.2V, 1.5V, 1.8V, 2.5V, 2.8V, 3.0V, 3.3V; ADJ adjustable output with 0.8V reference voltage
Ceramic or tantalum capacitor compatible
Current limiting protection
Over-temperature protection
Available in SOT-23-5 package
