TLV75733PDBVR

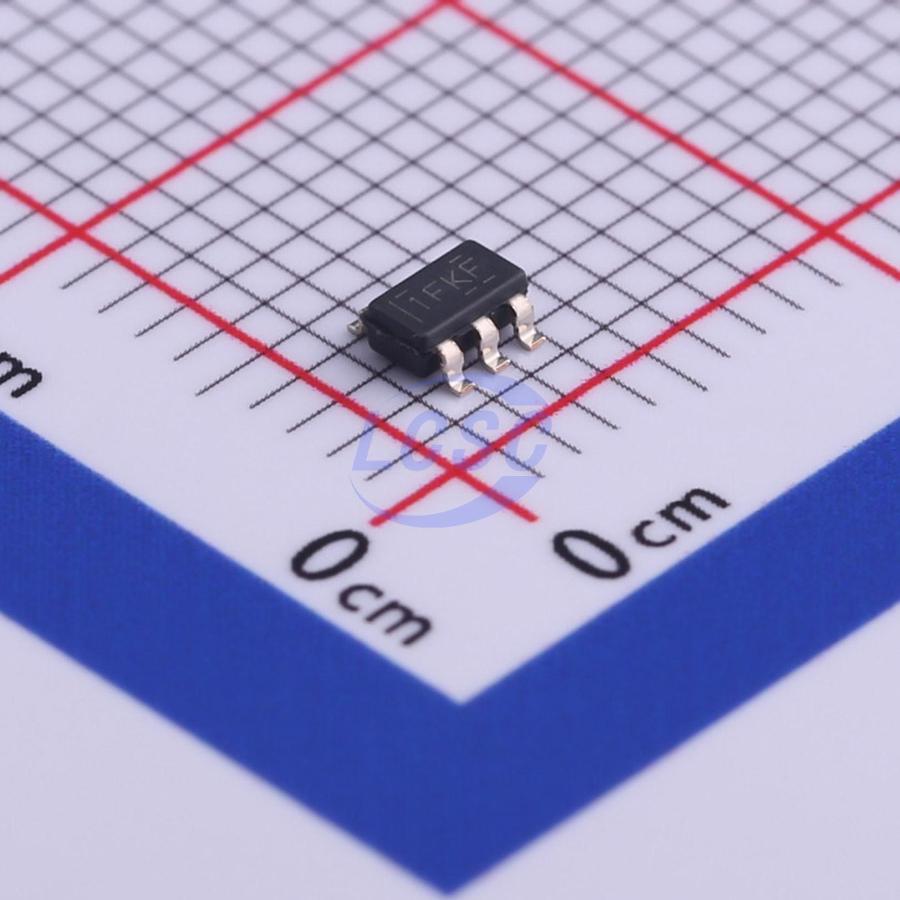

3.3V Positive Fixed SOT-23-5 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
PopularSOT-23-5ROHS3 CompliantActive
1A, low IQ, high precision, low dropout voltage regulator with enable function
- Manufacturer
- TI
- Manufacturer part #
- TLV75733PDBVR
- Store part #
- C485517
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
81,835 in stock
#C485517
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹26.65 | ₹133.25 |
| 50+ | ₹20.92 | ₹1,046.00 |
| 150+ | ₹18.13 | ₹2,719.50 |
| 500+ | ₹15.64 | ₹7,820.00 |
| 3,000+ | ₹14.95 | ₹44,850.00 |
| 6,000+ | ₹14.54 | ₹87,240.00 |
5 × ₹26.65
₹133.25
excl. GST
₹157.23 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TLV75733PDBVR
₹133.25 for 5 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Tj)
- Supply Current (Iq)
- 40uA
- Output Configuration
- Positive
- Operating Voltage
- 5.5V
- Output Current
- 1A
- Features
- Enable control;Built-in soft-start;Output discharge;Input under-voltage protection;Thermal shutdown;Over Current Protection;Short Circuit Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.025 g
Overview
The TLV757P low-dropout regulator (LDO) is an ultrasmall, low quiescent current LDO that sources 1 A with good line and load transient performance. The TLV757P is optimized for wide variety of applications by supporting an input voltage range from 1.45 V to 5.5 V. To minimize cost and solution size, the device is offered in fixed output voltages ranging from 0.6 V to 5 V to support the lower core voltages of modern MCUs. Additionally, the TLV757P has a low IQ with enable functionality to minimize standby power. This device features an internal soft-start to lower the inrush current which provides a controlled voltage to the load and minimizes the input voltage drop during start up. When shutdown, the device actively pulls down the output to quickly discharge the outputs and ensure a known start-up state. The TLV757P is stable with small ceramic output capacitors allowing for a small overall solution size. A precision band-gap and error amplifier provides a typical accuracy of 1%. All device versions have integrated thermal shutdown, current limit, and undervoltage lockout (UVLO). The TLV757P has an internal foldback current limit that helps to reduce the thermal dissipation during short circuit events.
Applications
- Set Top Boxes, TV, and Gaming Consoles
- Portable and Battery-Powered Equipment
- Desktop, Notebooks, and Ultrabooks
- Tablets and Remote Controls
- White Goods and Appliances
- Grid Infrastructure and Protection Relays
- Camera Modules and Image Sensors
Key features
- Input Voltage Range: 1.45 V to 5.5 V
- Available in Fixed-Output Voltages: 0.6 V to 5 V (50-mV Steps)
- Low IQ: 25 μA (Typical)
- Low Dropout: 425 mV (Maximum) at 1 A (3.3 VOUT)
- Output Accuracy: 1% (Maximum)
- Built-In Soft-Start With Monotonic VOUT Rise
- Foldback Current Limit
- Active Output Discharge
- High PSRR: 45 dB at 100 kHz
- Stable With a Ceramic Output Capacitor
- Packages: SOT-23-5 (Preview) 2 mm × 2 mm (WSON-6)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TLV75733PDYDR#C22399950TI · SOT-23-5 | TI | SOT-23-5 | 16,670 | ₹39.32 · 16,670 in stock | View |
 | MD7218E33QC3#C920494Mingda Microelectronics · SOT-23-5L | Mingda Microelectronics | SOT-23-5L | 3,350 | ₹22.93 · 3,350 in stock | View |
 | XC6220B331MR-G#C86534TOREX · SOT-25 | TOREX | SOT-25 | 27,347 | ₹63.21 · 27,347 in stock | View |
 | LW8233A23E#C47018755Lewa Micro · SOT-23-5L | Lewa Micro | SOT-23-5L | 2,790 | ₹17.42 · 2,790 in stock | View |
 | MD7219E33QC3#C2978411Mingda Microelectronics · SOT-23-5L | Mingda Microelectronics | SOT-23-5L | 150 | ₹13.79 · 150 in stock | View |
Questions about TLV75733PDBVR
What fixed output voltage, maximum load current, and input operating limits define the TLV75733PDBVR LDO regulator?
The Texas Instruments TLV75733PDBVR is a low-dropout linear regulator that provides a fixed 3.3 V output with ±1% output accuracy. It operates from an input voltage range of 1.45 V to 5.5 V and delivers up to 1.0 A of continuous output current while providing good line and load transient performance for powering microcontrollers and other low-voltage digital circuits.
What maximum dropout voltage, supply quiescent current, and power-saving features govern this power regulator?
The device features a low quiescent current of 25 µA typical (40 µA maximum over the operating temperature range) to minimize standby power consumption. At a 1.0 A load with a 3.3 V output, the maximum dropout voltage is 425 mV (or 475 mV across the full junction temperature range), helping maintain regulation when the input voltage is close to the output voltage.
Which physical package dimensions, lead layout codes, and part-number suffixes specify this component?
The orderable part number TLV75733PDBVR identifies a 3.3 V fixed-output member of the TLV757P regulator family. The "P" suffix indicates active output discharge, "DBV" specifies the 5-pin SOT-23 surface-mount package, and "R" denotes reel packaging (3,000 pieces). The SOT-23 package has nominal body dimensions of 2.90 mm × 1.60 mm with a 0.95 mm pin pitch.
What active protections, internal soft-start mechanisms, and output capacitor requirements ensure safe operation?
The TLV75733PDBVR integrates active output discharge, thermal shutdown, undervoltage lockout (UVLO), internal foldback current limiting, and built-in soft-start for reliable operation and short-circuit protection. It supports a junction temperature range of −40°C to +125°C and is stable with a 0.47 µF or larger ceramic output capacitor, with 1 µF commonly recommended for typical applications.
What packaging options and factory reel quantities apply to the TLV75733PDBVR?
The "R" suffix indicates reel packaging, with a standard quantity of 3,000 devices per reel. The device is supplied in a 5-pin SOT-23 (DBV) surface-mount package suitable for automated PCB assembly and is qualified for lead-free reflow soldering with a peak body temperature of 260°C.
