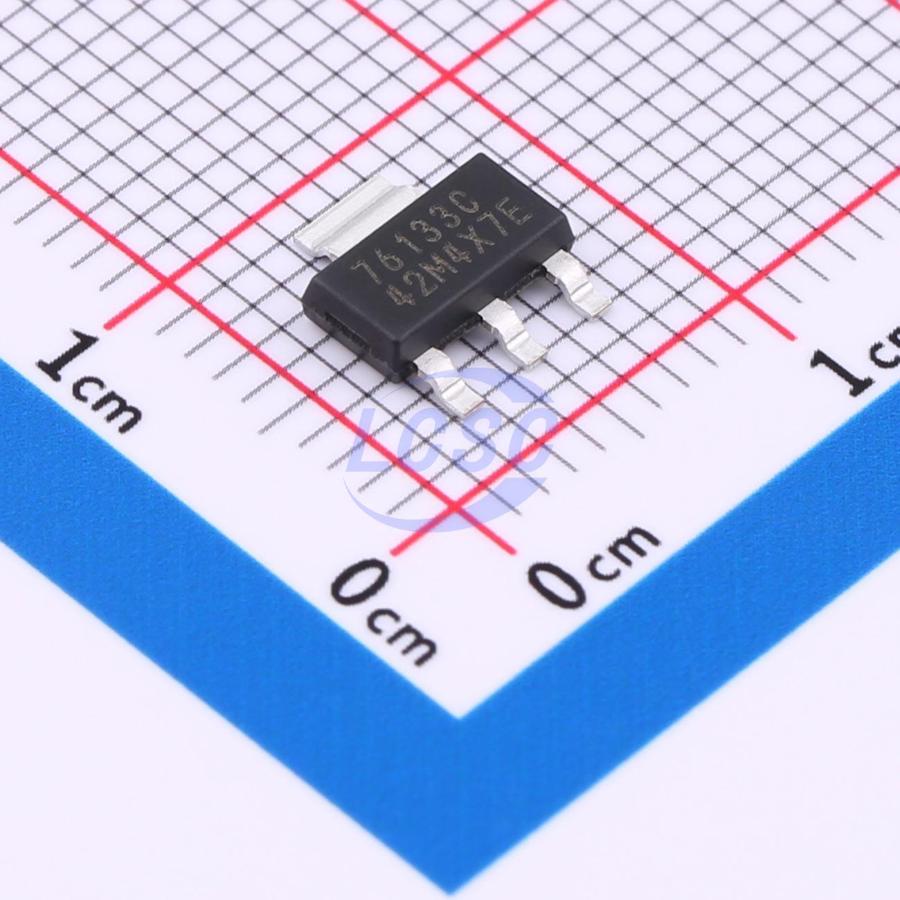

TLV76133DCYR

The TLV761 is a linear voltage regulator that improves the functionality of a traditional x1117 regulator (TLV1117 or LM1117) with tighter output accuracy and low quiescent current (I_Q) to lower the standby power consumption. The TLV761 is pin-to-pin compatible with other fixed SOT-223, TO-252 regulators. The TLV761 input voltage range is from 2.5V to 16V and provides an output voltage range from 0.8V to 13V to support a wide variety of applications. The wide bandwidth PSRR performance of the TLV761 is typically greater than 60dB at 1kHz and 40dB at 1MHz, which helps attenuate the switching frequency of an upstream DC/DC converter and minimizes post regulator filtering. Additionally, the TLV761 has an internal soft start feature to reduce inrush current during start-up, which can help save space and cost in a design by minimizing input capacitance. The TLV761 features a foldback current limit that limits the power dissipation of the device during high-load current faults or shorting events.

Applications

• Appliances
• Home theater and entertainment
• Motor drives
• HVAC and building security systems
• Smart meters

Key features

• Pin-compatible with industry-standard LM1117 and TLV1117 (x1117) devices in select packages
• Input voltage range V_IN: 2.5V to 16V (abs max rating of 20V)
• Output voltage range V_OUT: 0.8V to 13V (fixed, 100mV steps)
• Output current: Up to 1A
• Low quiescent current I_Q: 60μA (typical, ~1.5μA in shutdown)
• 1% output accuracy over line, load and temperature
• High PSRR: 60dB at 1kHz, 40dB at 1MHz
• Internal soft-start time: 500μs (typical)
• Foldback current limiting and thermal protection
• Stable with μF ceramic output capacitors
• Temperature range: -40°C to +125°C
