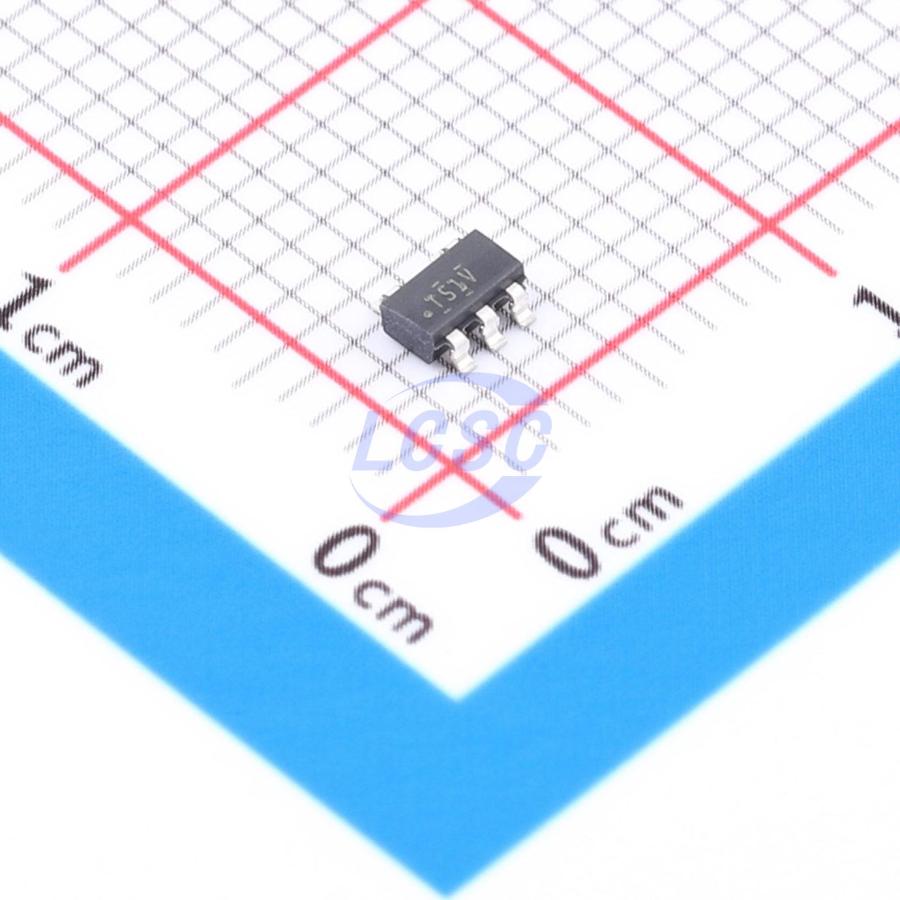

TLV9151IDBVR

Standard (General Purpose) Amplifier 1 Circuit Rail-to-Rail Input, Rail-to-Rail Output SOT-23-5

SOT-23-5ROHS3 CompliantActive

4.5-MHz, rail-to-rail input/output, low offset voltage, low noise operational amplifier

Manufacturer: TI
Manufacturer part #: TLV9151IDBVR
Store part #: C1517408
Package / case: SOT-23-5
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,098 in stock

#C1517408

Stock & price checked 13 days ago

Quantity	Unit price	Pack price
1+	₹98.43	₹98.43
10+	₹83.44	₹834.40
30+	₹72.79	₹2,183.70
100+	₹63.89	₹6,389.00
500+	₹61.28	₹30,640.00
1,000+	₹59.54	₹59,540.00

Quantity (min 1)

1 × ₹98.43

₹98.43

excl. GST

₹116.15 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

TLV9151IDBVR

₹98.43 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Output Current: 75mA
Number of Channels: 1
Vos - Input Offset Voltage: 125uV
Slew Rate: 20V/us
Input Offset Current(Ios): 10pA
Operating Temperature: -40℃~+125℃
Common Mode Rejection Ratio(CMRR): 120dB
Ib - Input Bias Current: 10pA
Input Offset Voltage Drift(Vos TC): 300nV/℃
Quiescent Current: 560uA
Gain Bandwidth Product: 4.5MHz
Features: Enable/shutdown function;EMI filtering/RF suppression
Input Voltage Noise Density: 10.5nV/√Hz@1kHz
Dual Supply: -8V~-1.35V;1.35V~8V
Rail to Rail: Rail-to-Rail Input, Rail-to-Rail Output
Single Supply: 2.7V~16V

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 2.659 g

Overview

The TLV915x product family is a 16V general-purpose operational amplifier product family. These devices feature excellent DC accuracy and AC performance, including rail-to-rail output, low offset voltage (±125μV, typical), low offset drift (±0.3μV/°C, typical), and a 4.5MHz bandwidth. Convenient features such as a wide differential input voltage range, high output current (±75mA), high slew rate (20V/μs), and low noise (10.5nV/√Hz) make the TLV915x a robust and low-noise operational amplifier suitable for industrial applications. The operational amplifiers in the TLV915x product family come in standard packages and are specified for temperatures from -40°C to 125°C.

Applications

Professional microphones and wireless systems
Multiplexed data acquisition systems
Test and measurement equipment
Factory automation and control
High-side and low-side current sensing

Key features

Low offset voltage: ±125μV
Low offset voltage drift: ±0.3μV/°C
Low noise: 10.5nV/√Hz at 1kHz
High common-mode rejection: 120dB
Low bias current: ±10pA
Rail-to-rail input and output
Wide bandwidth: 4.5MHz GBW
High slew rate: 20V/μs
Low quiescent current: 560μA per amplifier
Wide supply voltage: ±1.35V to ±8V, 2.7V to 16V
Robust EMIRR performance: EMI/RFI filter on input pins
Differential and common-mode input voltage range to supply rails
Industry-standard packages:
Single-channel: SOT-23-5, SOT-23-6, and SC70-5
Dual-channel: SOIC-8, SOT-23-8, TSSOP-8, VSSOP-8, WSON-8, and X2QFN-10
Quad-channel: SOIC-14, SOT-23-14, TSSOP-14, and X2QFN-14

Alternatives

Similar parts — check the datasheet before substituting.

	Manufacturer	Package	Stock	Price from (excl. GST)	Action
TLV9151QDBVRQ1#C4366263TI · SOT-23-5	TI	SOT-23-5	53	₹167.39 · 53 in stock	View
HT1561ARTZ#C2917533HTCSEMI · SOT-23-5	HTCSEMI	SOT-23-5	475	₹48.94 · 475 in stock	View
COS171TR#C50401306COSINE · SOT-23-5	COSINE	SOT-23-5	2,535	₹35.64 · 2,535 in stock	View
COS171TRB#C50401307COSINE · SOT-23-5	COSINE	SOT-23-5	1,370	₹32.19 · 1,370 in stock	View
TLV9161IDBVR#C4368955TI · SOT-23-5	TI	SOT-23-5	165	₹189.72 · 165 in stock	View
