VISHAYDatasheet (PDF)

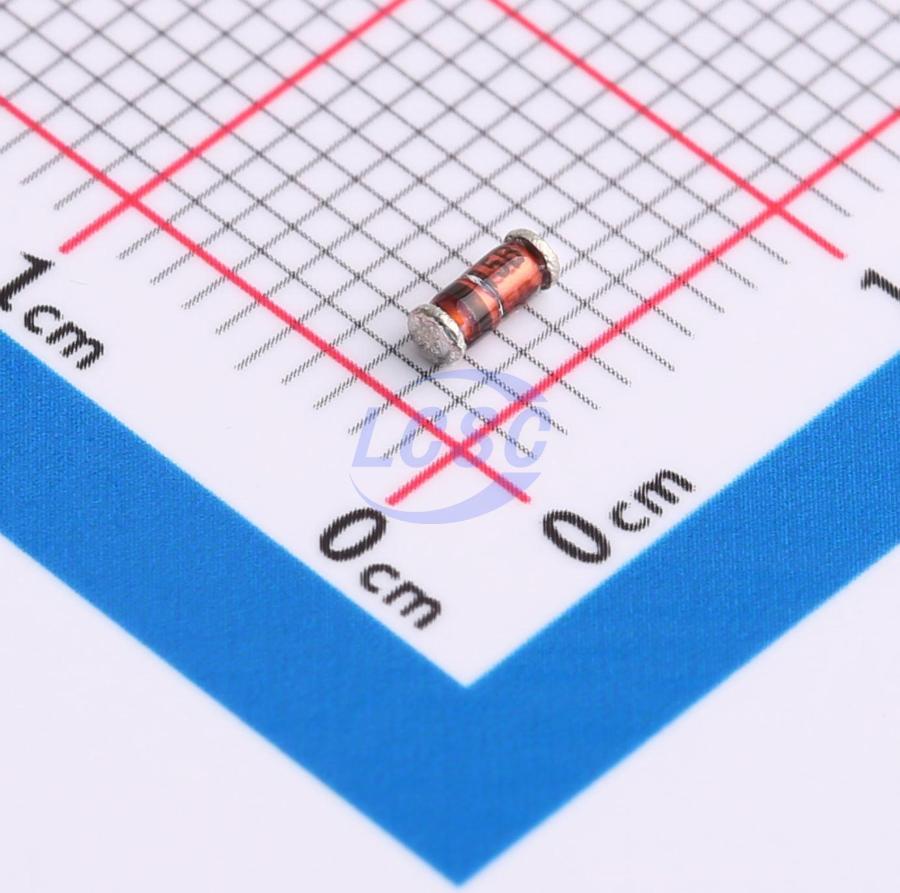

TLZ15B-GS08
Zener Diode Independent 15V 500mW SOD-80
SOD-80ROHS3 CompliantActive
DIODE ZENER 15V 500mW SOD-80
- Manufacturer
- VISHAY
- Manufacturer part #
- TLZ15B-GS08
- Store part #
- C241944
- Package / case
- SOD-80
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
260 in stock
#C241944
Stock & price checked 12 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹22.04 | ₹110.20 |
| 50+ | ₹21.58 | ₹1,079.00 |
| 150+ | ₹21.26 | ₹3,189.00 |
| 500+ | ₹20.94 | ₹10,470.00 |
5 × ₹22.04
₹110.20
excl. GST
₹130.04 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
TLZ15B-GS08
₹110.20 for 5 + GST
Specifications
- Diode Configuration
- 1 Independent
- Pd - Power Dissipation
- 500mW
- Reverse Leakage Current (Ir)
- 40nA@13.2V
- Impedance(Zzt)
- 16Ω
- Zener Voltage(Range)
- 13.89V~14.62V
- Zener Voltage(Nom)
- 15V
- Impedance(Zzk)
- 110Ω
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.053 g
Overview
Applications
- Voltage stabilization
Key features
- Very sharp reverse characteristic
- Low reverse current level
- Very high stability
- Low noise
- High reliability
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | ZMM15V#C18195349LangJie · LL-34 | LangJie | LL-34 | 1,150 | ₹1.51 · 1,150 in stock | View |
 | ZMM15#C20623291YFW · LL-34 | YFW | LL-34 | 200 | ₹2.41 · 200 in stock | View |
 | BZV55C15-MS#C20627164MSKSEMI · LL-34 | MSKSEMI | LL-34 | 1,200 | ₹1.72 · 1,200 in stock | View |
 | ZMM15#C2857258JSMSEMI · LL-34 | JSMSEMI | LL-34 | 2,800 | ₹1.27 · 2,800 in stock | View |
 | ZMM15V#C2891755YONGYUTAI · LL-34 | YONGYUTAI | LL-34 | 55,200 | ₹1.22 · 55,200 in stock | View |
