VISHAYDatasheet (PDF)

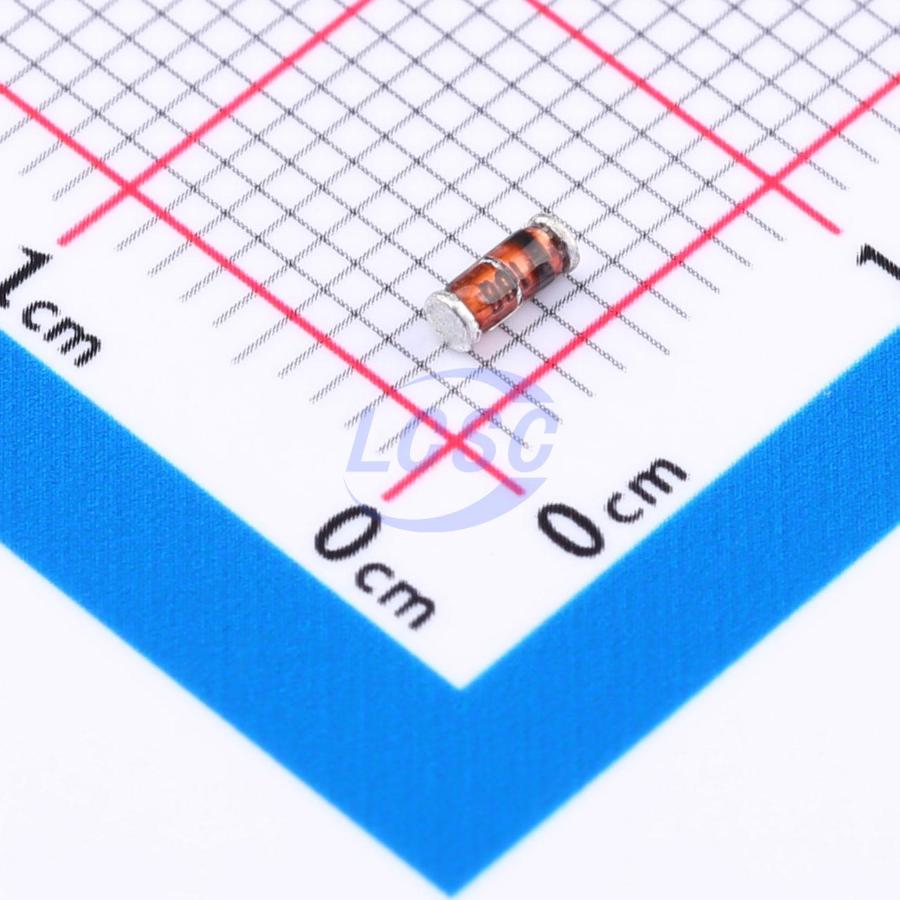

TLZ18B-GS08
Zener Diode Independent 18V 500mW SOD-80
SOD-80ROHS3 CompliantActive
DIODE ZENER 18V 500mW SOD-80
- Manufacturer
- VISHAY
- Manufacturer part #
- TLZ18B-GS08
- Store part #
- C3733886
- Package / case
- SOD-80
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,965 in stock
#C3733886
Stock & price checked 12 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹11.74 | ₹58.70 |
| 50+ | ₹9.39 | ₹469.50 |
| 150+ | ₹8.22 | ₹1,233.00 |
| 500+ | ₹7.34 | ₹3,670.00 |
| 2,500+ | ₹6.64 | ₹16,600.00 |
| 5,000+ | ₹6.28 | ₹31,400.00 |
5 × ₹11.74
₹58.70
excl. GST
₹69.27 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
TLZ18B-GS08
₹58.70 for 5 + GST
Specifications
- Diode Configuration
- 1 Independent
- Pd - Power Dissipation
- 500mW
- Reverse Leakage Current (Ir)
- 40nA@16V
- Impedance(Zzt)
- 23Ω
- Zener Voltage(Range)
- 16.82V~17.7V
- Zener Voltage(Nom)
- 18V
- Impedance(Zzk)
- 150Ω
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.05 g
Overview
Applications
- Stable voltage
Key features
- Very sharp reverse characteristics
- Low reverse current level
- Very high stability
- Low noise
- High reliability
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | ZMM5248B#C48578703LGE · LL-34 | LGE | LL-34 | 5,850 | ₹1.81 · 5,850 in stock | View |
 | ZMM5248B#C53058773luJing · LL-34 | luJing | LL-34 | 2,300 | ₹2.16 · 2,300 in stock | View |
 | ZMM5248BPF#C7497523ST(Semtech) · LL-34 | ST(Semtech) | LL-34 | 880 | ₹3.32 · 880 in stock | View |
 | ZMM18V#C18195358LangJie · LL-34 | LangJie | LL-34 | 2,200 | ₹1.51 · 2,200 in stock | View |
 | ZMM18#C20623347YFW · LL-34 | YFW | LL-34 | 1,040 | ₹3.82 · 1,040 in stock | View |
