TM(Shenzhen Titan Micro Elec)Datasheet (PDF)

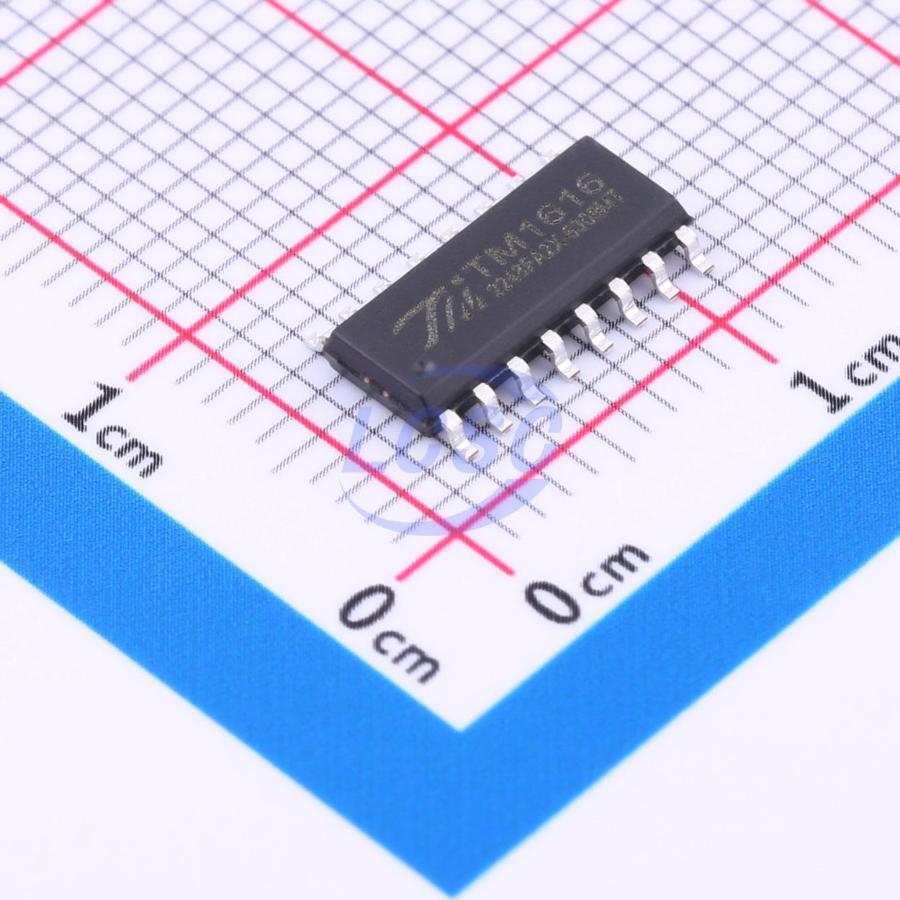

TM1616(TA1323C)
4.5V~5.5V 1MHz 20mA 80mA SOP-16 Display Drivers
SOP-16RoHSActive
- Manufacturer
- TM(Shenzhen Titan Micro Elec)
- Manufacturer part #
- TM1616(TA1323C)
- Store part #
- C5337150
- Package / case
- SOP-16
- Category
- Display Drivers
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,195 in stock
#C5337150
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹24.30 | ₹121.50 |
| 50+ | ₹18.80 | ₹940.00 |
| 150+ | ₹16.03 | ₹2,404.50 |
| 500+ | ₹13.97 | ₹6,985.00 |
| 2,500+ | ₹12.32 | ₹30,800.00 |
| 5,000+ | ₹11.50 | ₹57,500.00 |
5 × ₹24.30
₹121.50
excl. GST
₹143.37 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
TM1616(TA1323C)
₹121.50 for 5 + GST
Specifications
- Voltage - Supply
- 4.5V~5.5V
- Configuration
- 7 Segment × 4 Digit
- Operating Temperature
- -20℃~+70℃
- Clock Frequency
- 1MHz
- Pd - Power Dissipation
- 400mW
- Features
- PWM dimming;Internal reset function;Built-in display RAM
- Segment Drive Current
- 20mA
- Digit Drive Current
- 80mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 1.03 g
Overview
TM1616 is an IC dedicated to LED display driver control, integrating a microcontroller digital interface, data latches, and LED high-voltage driver circuits. This product offers excellent performance and reliable quality, primarily used for display driver applications in VCRs, VCD players, DVD players, and home theater systems. Available in SOP16 and DIP16 packages.
Applications
- Video recorders
- Video disc players
- DVD players
- Home theater systems
Key features
- Power CMOS process
- Display mode: 7-segment × 4-digit
- Brightness control circuit with 8-level adjustable duty cycle
- Serial interface with CLK, STB, and data input pins
- Built-in RC oscillator at 450kHz, ±5% accuracy
- Built-in power-on reset circuit
- SOP16 and DIP16 packages
