TM(Shenzhen Titan Micro Elec)Datasheet (PDF)

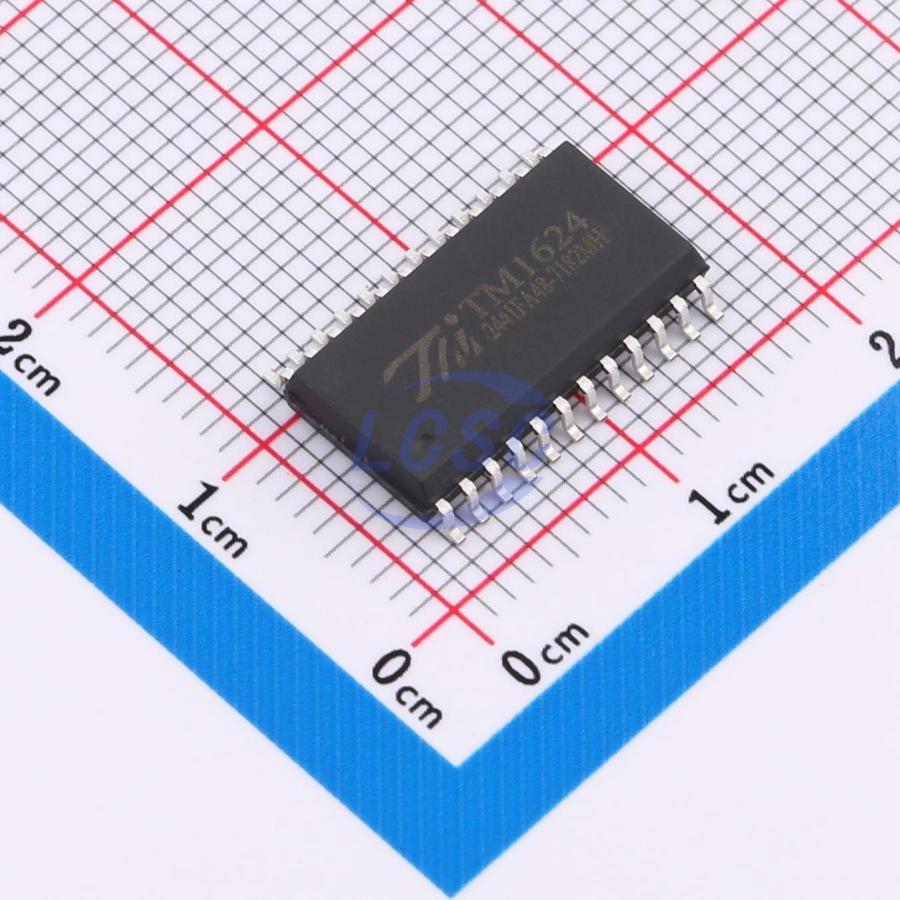

TM1624
4.5V~5.5V 1MHz 20mA 80mA SOIC-24-300mil Display Drivers
SOIC-24-300milRoHSActive
- Manufacturer
- TM(Shenzhen Titan Micro Elec)
- Manufacturer part #
- TM1624
- Store part #
- C87033
- Package / case
- SOIC-24-300mil
- Category
- Display Drivers
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,495 in stock
#C87033
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹34.81 | ₹174.05 |
| 50+ | ₹29.03 | ₹1,451.50 |
| 150+ | ₹25.85 | ₹3,877.50 |
| 510+ | ₹21.90 | ₹11,169.00 |
| 2,490+ | ₹20.14 | ₹50,148.60 |
| 5,010+ | ₹19.08 | ₹95,590.80 |
5 × ₹34.81
₹174.05
excl. GST
₹205.38 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 30 per tube
TM1624
₹174.05 for 5 + GST
Specifications
- Voltage - Supply
- 4.5V~5.5V
- Configuration
- 11 Segment x 7 Digit;12 Segment x 6 Digit;13 Segment x 5 Digit;14 Segment x 4 Digit
- Operating Temperature
- -40℃~+80℃
- Clock Frequency
- 1MHz
- Pd - Power Dissipation
- 400mW
- Features
- PWM dimming;Internal reset function
- Segment Drive Current
- 20mA
- Digit Drive Current
- 80mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tube-packed
- Standard pack
- 30 / Tube
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 1.03 g
Overview
TM1624 is a dedicated LED (Light Emitting Diode display) driver control IC, integrating an MCU digital interface, data latch, and LED high-voltage driver circuits. This product offers excellent performance and reliable quality. Primarily used for display panel driving in VCR, VCD, DVD, and home theater products. Available in SOP24 and SDIP24 packages.
Applications
- VCR
- VCD
- DVD
- Home Theater
Key features
- Power CMOS process
- Multiple display modes (11 segments × 7 digits ~ 14 segments × 4 digits)
- Brightness adjustment circuit (8-level duty cycle adjustment)
- Serial interface (CLK, STB, DIN, DOUT)
- Oscillation method: built-in RC oscillator (450KHz±5%)
- Built-in power-on reset circuit
- Package: SOP24, SDIP24
