TM(Shenzhen Titan Micro Elec)Datasheet (PDF)

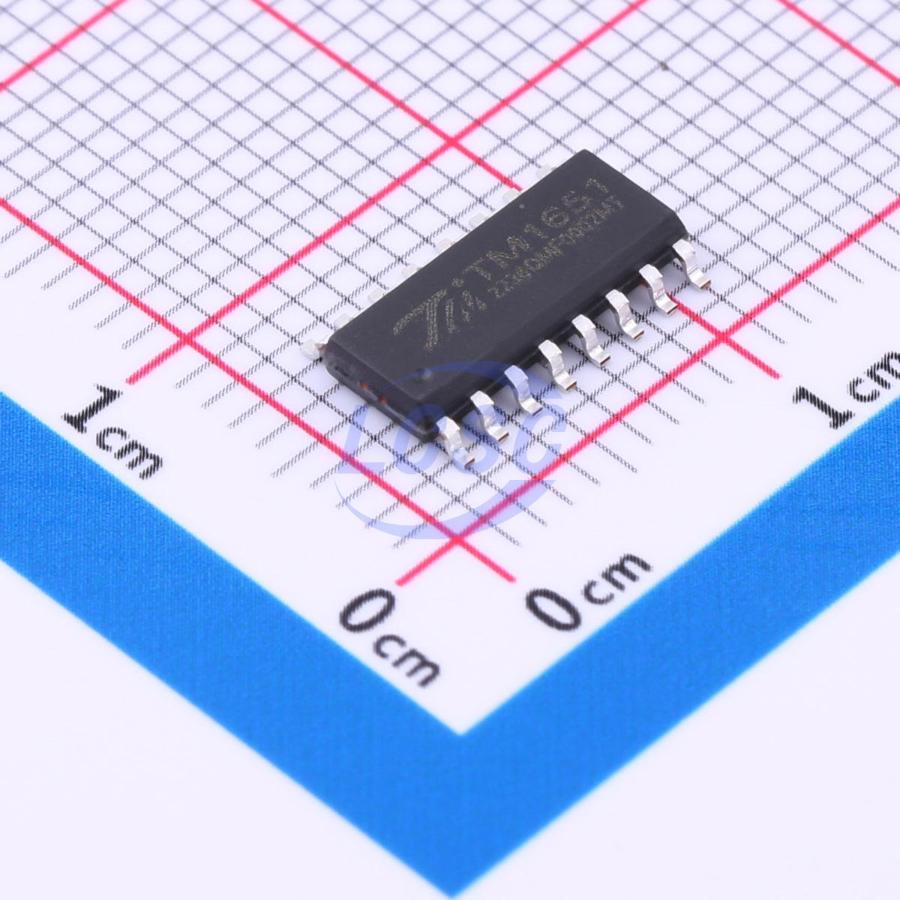

TM1651(TA2007)
4.5V~5.5V 500kHz 20mA 80mA SOP-16 Display Drivers
SOP-16RoHSActive
Special-purpose circuit for LED driver control
- Manufacturer
- TM(Shenzhen Titan Micro Elec)
- Manufacturer part #
- TM1651(TA2007)
- Store part #
- C5337227
- Package / case
- SOP-16
- Category
- Display Drivers
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,435 in stock
#C5337227
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹15.17 | ₹75.85 |
| 50+ | ₹11.74 | ₹587.00 |
| 150+ | ₹10.02 | ₹1,503.00 |
| 500+ | ₹8.73 | ₹4,365.00 |
| 2,500+ | ₹7.70 | ₹19,250.00 |
| 5,000+ | ₹7.18 | ₹35,900.00 |
5 × ₹15.17
₹75.85
excl. GST
₹89.50 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
TM1651(TA2007)
₹75.85 for 5 + GST
Specifications
- Voltage - Supply
- 4.5V~5.5V
- Configuration
- 7 Segment × 4 Digit
- Operating Temperature
- -40℃~+85℃
- Clock Frequency
- 500kHz
- Pd - Power Dissipation
- 400mW
- Features
- Built-in auto blanking;PWM dimming;Internal reset function
- Segment Drive Current
- 20mA
- Digit Drive Current
- 80mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.29 g
Overview
TM1651 is a dedicated LED display driver control IC with a keyboard scanning interface, integrating an MCU digital interface, data latch, LED high-voltage driver, and keyboard scanning circuitry. This product offers excellent performance and reliable quality. Primarily used for display panel driving in induction cookers, microwave ovens, and small household appliances. Available in SOP16/DIP16 packages.
Applications
- Induction cooktop
- Microwave oven
- Display driver for small home appliances
Key features
- Power CMOS process
- Display mode (7 segments × 4 digits), common-anode LED output
- Key scan (7×1bit), enhanced anti-interference key recognition circuit
- Brightness adjustment circuit (8-level duty cycle control)
- Serial interface (CLK, DIO)
- Oscillation: built-in RC oscillator (450KHz±5%)
- Built-in power-on reset circuit
- Built-in auto-blanking circuit
- Package: DIP16/SOP16
