TMIDatasheet (PDF)

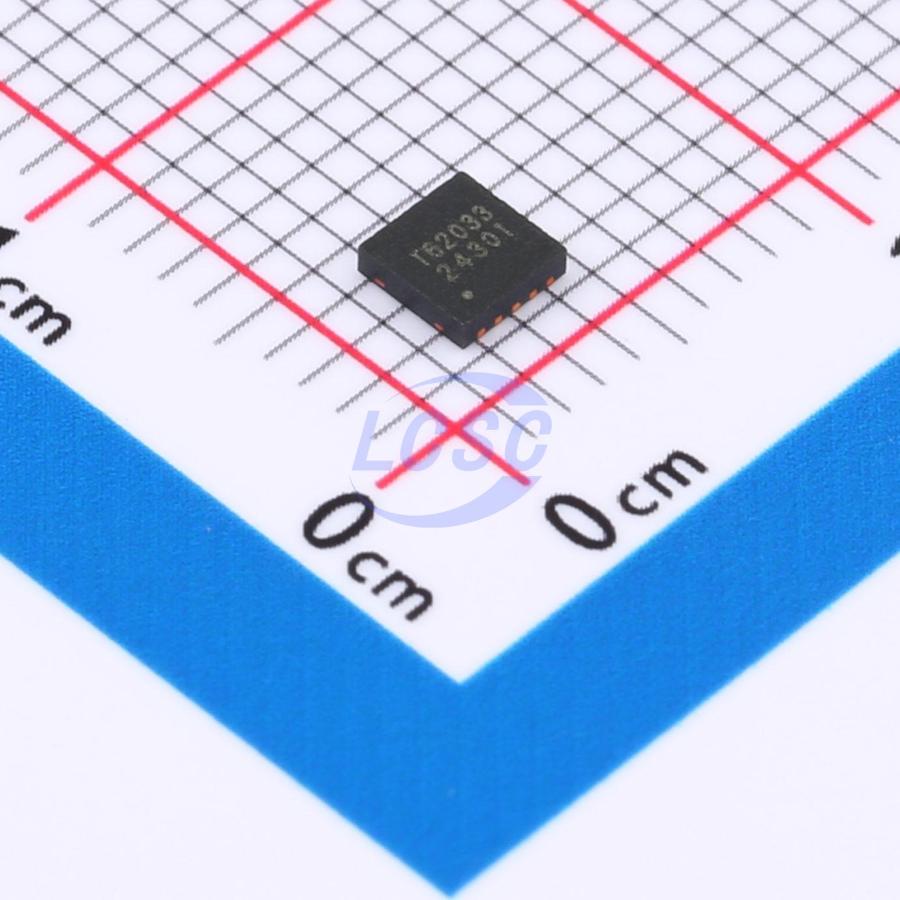

TMI62033
1.1V~3.5V Positive Adjustable DFN-10(3x3) Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
DFN-10(3x3)ROHS CompliantActive
3A Sink and Source DDR Termination Regulator
- Manufacturer
- TMI
- Manufacturer part #
- TMI62033
- Store part #
- C29779862
- Package / case
- DFN-10(3x3)
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
9,114 in stock
#C29779862
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹78.32 | ₹78.32 |
| 10+ | ₹62.22 | ₹622.20 |
| 30+ | ₹55.26 | ₹1,657.80 |
| 100+ | ₹46.56 | ₹4,656.00 |
| 500+ | ₹42.64 | ₹21,320.00 |
| 1,000+ | ₹40.25 | ₹40,250.00 |
1 × ₹78.32
₹78.32
excl. GST
₹92.42 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
TMI62033
₹78.32 for 1 + GST
Specifications
- Output Voltage
- 1.1V~3.5V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Tj)
- Supply Current (Iq)
- 1mA
- Output Configuration
- Positive
- Operating Voltage
- 3.5V
- Output Current
- 3A
- Features
- Enable control;Built-in soft-start;Operating status indication;Input under-voltage protection;Over Current Protection;Thermal shutdown;Output discharge
- Output Type
- Adjustable
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.132 g
Overview
The TMI62033 is a 3A sink and source double data rate (DDR) termination regulator. It supports a remote sensing function and all power requirements for DDR, DDR2, DDR3, DDR3L, Low-Power DDR3 and DDR4 VTT bus termination. The TMI62033 maintains a fast transient response and requires a minimum output capacitance of only 20μF for low-cost, low-noise systems where space is a key consideration. In addition, the TMI62033 provides an open-drain PGOOD signal to monitor the output regulation for VTT regulation indication and an EN signal that can be used to discharge VTT for DDR applications.
Applications
- Memory Termination Regulator for DDR, DDR2, DDR3, DDR3L, Low-Power DDR3 and DDR4 Notebooks, Desktops, and Servers
- Telecom, Datacom and Base Stations
- LCD-TVs and PDP-TVs
- Copiers and Printers, Set-Top Boxes
Key features
- VIN Voltage: Supports 2.5V or 3.3V Power Rail
- VLDOIN Voltage Range: 1.1V to 3.5V
- Sink and Source Termination Regulator Includes Droop Compensation
- PGOOD to Monitor Output Regulation
- Remote Sensing (VOSNS)
- REFIN Input Allows for Flexible Input Tracking Either Directly or Through Resistor Divider
- ±25mA Buffered Reference (REFOUT)
- Built-in Soft Start, UVLO, and OCL
- Supports DDR, DDR2, DDR3, DDR3L, Low-Power DDR3, and DDR4 VTT Applications
- Thermal Shutdown
