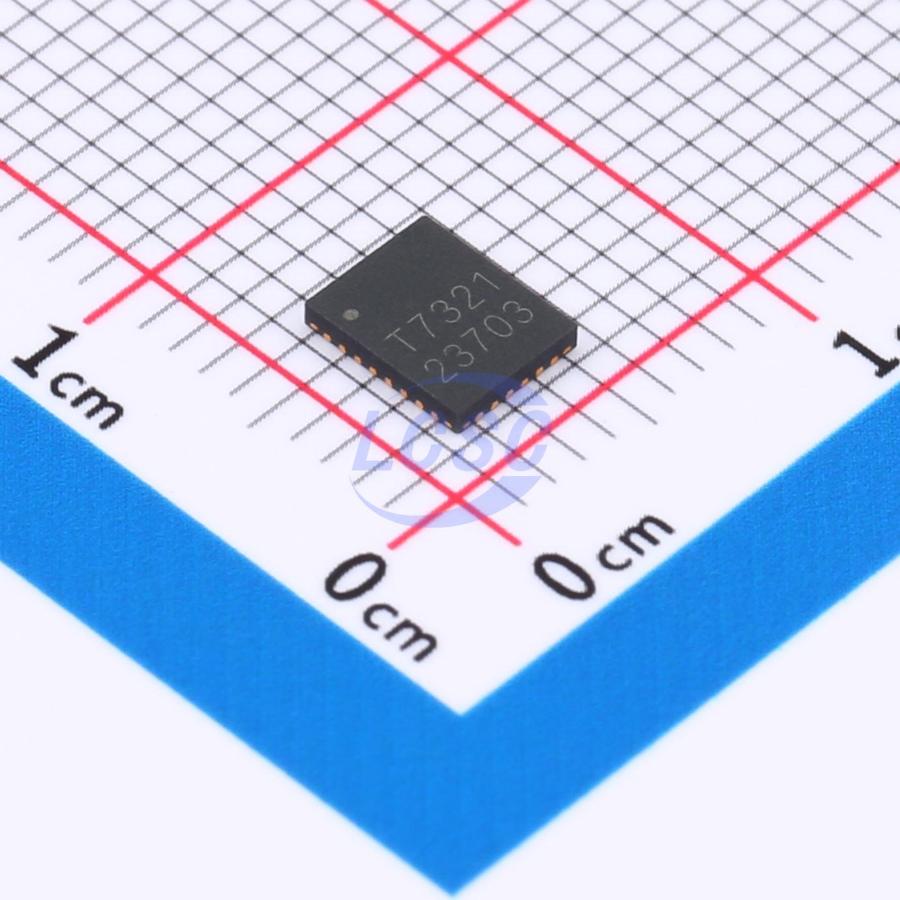

TMI7321
Powered Device (PD) 160V 13W QFN-28(4x5) Power Over Ethernet (PoE) Controllers RoHS
QFN-28(4x5)ROHS CompliantActive
13W 802.3af PoE Powered Device Interface with Flyback/Buck DC/DC Converter
- Manufacturer
- TMI
- Manufacturer part #
- TMI7321
- Store part #
- C29779857
- Package / case
- QFN-28(4x5)
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,184 in stock
#C29779857
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹115.95 | ₹115.95 |
| 10+ | ₹94.41 | ₹944.10 |
| 30+ | ₹83.53 | ₹2,505.90 |
| 100+ | ₹72.87 | ₹7,287.00 |
| 500+ | ₹66.35 | ₹33,175.00 |
| 1,000+ | ₹63.09 | ₹63,090.00 |
1 × ₹115.95
₹115.95
excl. GST
₹136.82 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TMI7321
₹115.95 for 1 + GST
Specifications
- Features
- Built-in LDO;PGOOD status indication;Overvoltage protection;Undervoltage Protection;Thermal Protection;Overcurrent Protection;PD detection and disconnect identification
- Type
- Powered Device (PD)
- Voltage - Supply (IC)
- 4.5V
- Voltage - Breakdown
- 160V
- Operating Temperature
- -40℃~+125℃
- Support PoE standard
- IEEE 802.3 af(PoE)
- Power - Max
- 13W
- limiting current
- 450mA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.164 g
Overview
The TMI7321 is an integrated IEEE 802.3af PoE compliant Powered Device (PD) power supply solution. It includes a PD interface and an isolated/non-isolated fly-back or Buck converter. The PD interface includes detection and all the functions of IEEE 802.3af, classification, 150mA inrush current, 450mA operation current limit as well as 100V Hot-swap MOSFET. The DC/DC converter uses fixed peak current and variable frequency discontinuous conduction mode (DCM) to regulate constant output voltage. The primary-side regulation without opto-coupler feedback in fly-back mode simplifies the design while buck mode continues minimizes the solution size for non-isolated applications. A 160V integrated power MOSFET optimizes the device for various wide voltage applications It incorporates over current, open-circuit, and overvoltage protection and thermal shutdown. The TMI7321 supports a front-end solution for PoE-PD application with minimal external components and is available in QFN4x5-28 package.
Applications
- IEEE 802.3af-Compliant Devices
- Security Camera
- VoIP Phones
- WLAN Access Points
- IoT Devices
Key features
- Compatible with 802.3af Specifications
- Support 13W PoE Power Application
- 100V, 0.6Ω Integrated Pass Switch
- 150mA DC Input Current Limit
- 450mA PD Operation Current Limit
- Intelligent Maintain Power Signature (MPS)
- Integrated 160V Switching Power MOSFET
- Supports Primary-Side Regulated Flyback without Opto-Coupler Feedback
- Supports Low-side Switch Buck Converter
- 3A Programmable Switching Current Limit
- OLP, OVP, OTP and Open-Circuit Protection
- Minimal External Components
- QFN4x5-28 Package
