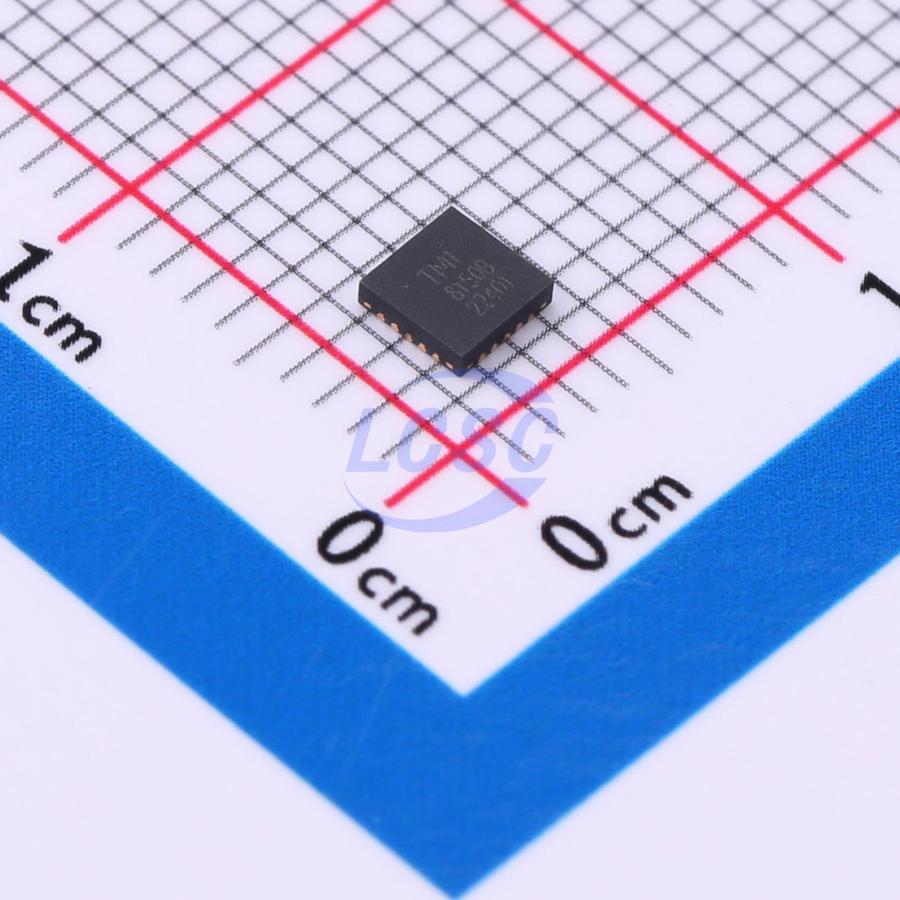

TMI8150B
QFN-20L-EP(3x3) Motor Drivers, Controllers RoHS
5-Channel Micro STM&DC Motor Driver
- Manufacturer
- TMI
- Manufacturer part #
- TMI8150B
- Store part #
- C5181768
- Package / case
- QFN-20L-EP(3x3)
- Category
- Motor Drivers, Controllers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,580 in stock
#C5181768
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹32.80 | ₹164.00 |
| 50+ | ₹26.00 | ₹1,300.00 |
| 150+ | ₹23.09 | ₹3,463.50 |
| 500+ | ₹19.46 | ₹9,730.00 |
| 2,500+ | ₹17.83 | ₹44,575.00 |
| 5,000+ | ₹16.87 | ₹84,350.00 |
5 × ₹32.80
₹164.00
excl. GST
₹193.52 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
TMI8150B
₹164.00 for 5 + GST
Specifications
- Drive Type
- Bipolar Driver
- Number of H-bridges
- 5
- Features
- Motor step-out prevention function;Under-voltage lockout;Over temperature protection
- Technology
- Yes
- Interface
- SPI
- Operating Temperature
- -40℃~+85℃
- Step Resolution
- 512
- Output Current
- 700mA
- Control Voltage
- 1.8V~5.5V
- RDS(on)
- 1.3Ω
- Motor Drive Voltage(Vm)
- 2.5V~5.5V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.13 g
Overview
The TMI8150B is an integrated DC motor driver, applied to low input voltage working system. The TMI8150B uses serial communication to control 5 channels of motors, which supports PTZ motor and IR cut filter change motor. 1~4CH can drive 2 stepper motor of PTZ (X and Y axis), X-axis and Y-axis are controlled by orthogonal SPWM and support forward and reverse rotation. 5CH control IR-cut. The current consumption can be hold at quite low level during standby or operation. In low-power sleep mode, the current is only 16μA. The package form of TMI8150B is QFN3x3-20L, which conforms to ROHS specifications, and the frame is 100% lead-free.
Applications
- DC motor & STM motor
- PTZ of IPC
- Robot
Key features
- Built-in 5-channel Motor Driver
- 1~4CH Control Two Stepper Motors or Four DC Motor, and the 5CH Channel Control One DC Motor or Coil
- 1CH/2CH & 3CH/4CH are Capable of Micro-steps Mode to Drive Maximum 512 Resolution Micro-steps
- 2.4V to 5.5V Operating Voltage
- Maximum Continuous Current: 0.7A
- VM Under-voltage Lockout (UVLO)
- Thermal Shutdown (TSD)
- Low-power Sleep Mode
- Automatic Fault Recovery
- A Small 20-pin QFN Package Type Has Been Adopted
