TMIDatasheet (PDF)

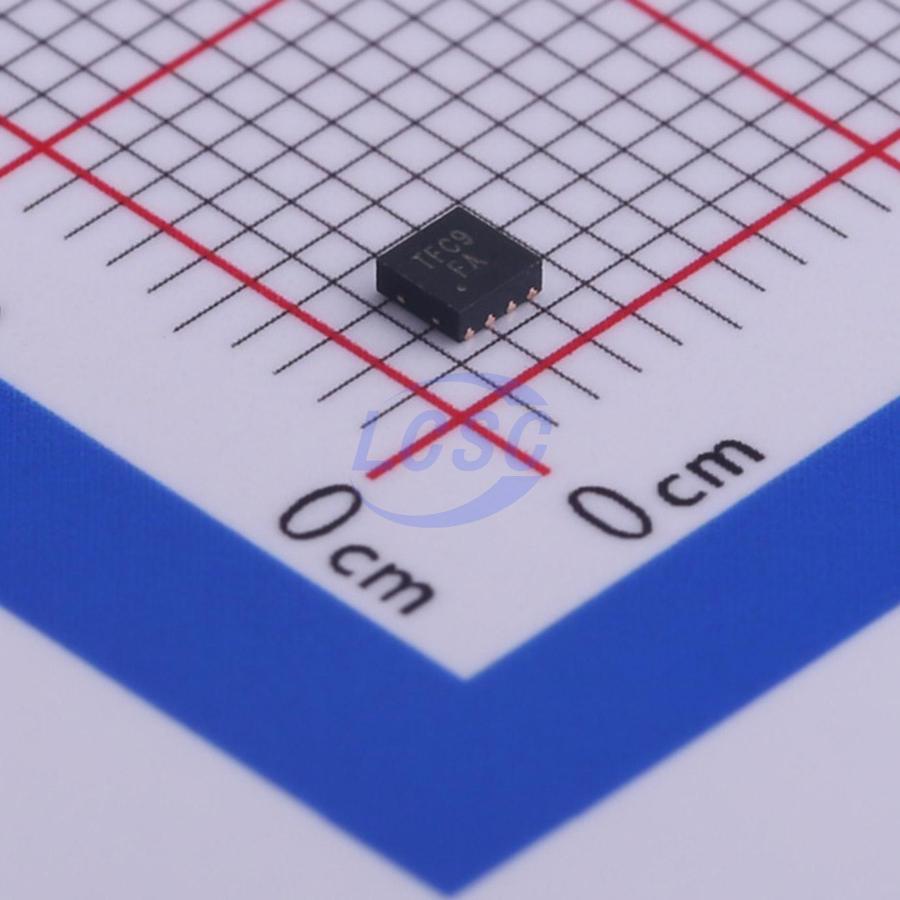

TMI8837
1.8V~7V DFN-8-EP(2x2) Motor Drivers, Controllers RoHS
DFN-8-EP(2x2)ROHS CompliantActive
Low Voltage H-Bridge Motor Drive
- Manufacturer
- TMI
- Manufacturer part #
- TMI8837
- Store part #
- C478955
- Package / case
- DFN-8-EP(2x2)
- Category
- Motor Drivers, Controllers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
7,498 in stock
#C478955
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹15.27 | ₹15.27 |
| 10+ | ₹12.18 | ₹121.80 |
| 30+ | ₹10.64 | ₹319.20 |
| 100+ | ₹9.49 | ₹949.00 |
| 500+ | ₹8.56 | ₹4,280.00 |
| 1,000+ | ₹8.10 | ₹8,100.00 |
1 × ₹15.27
₹15.27
excl. GST
₹18.02 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TMI8837
₹15.27 for 1 + GST
Specifications
- Features
- Current sensing/regulation function
- Technology
- Yes
- Voltage - Supply
- 1.8V~7V
- Operating Temperature
- -40℃~+125℃
- Supply Current (Iq)
- 45nA
- Peak Current
- 1.5A
- RDS(on)
- 650mΩ
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.018 g
Overview
TMI8837 and TMI8837S are low voltage DC motor driver IC. Internal integration 650mΩ (HS+LS typical) H bridge NMOS switch, which can support the 1.8V~11V input voltage range. The Peak current capacity is up to 1.5A, support for ultra-low power sleep mode; built-in UVLO, Thermal Shutdown, OCP protection circuit. TMI8837 and TMI8837S can be used in camera, toys and consumer products.
Applications
- Cameras
- Toys
- Consumer Products
Key features
- Support the input voltage range: Motor power: 1.8V~11V Control power supply: 1.8V~7V
- LDMOS RDS(ON) (HS+LS) 650mΩ (typical)
- Ultra-low power sleep mode 45nA (typical)
- VM sleep mode current 17nA (typical)
- VCC sleep mode current
- Up to 1.5A Peak current output capacity
- Built-in UVLO Protection
- Built-in Over Temperature Protection
- Built-in Short Circuit Protection
- Built-in Over Current Protection
- Built-in Charge Pump
- TMI8837: DFN2x2-8 package
- TMI8837S: SOP8 package
