TECH PUBLICDatasheet (PDF)

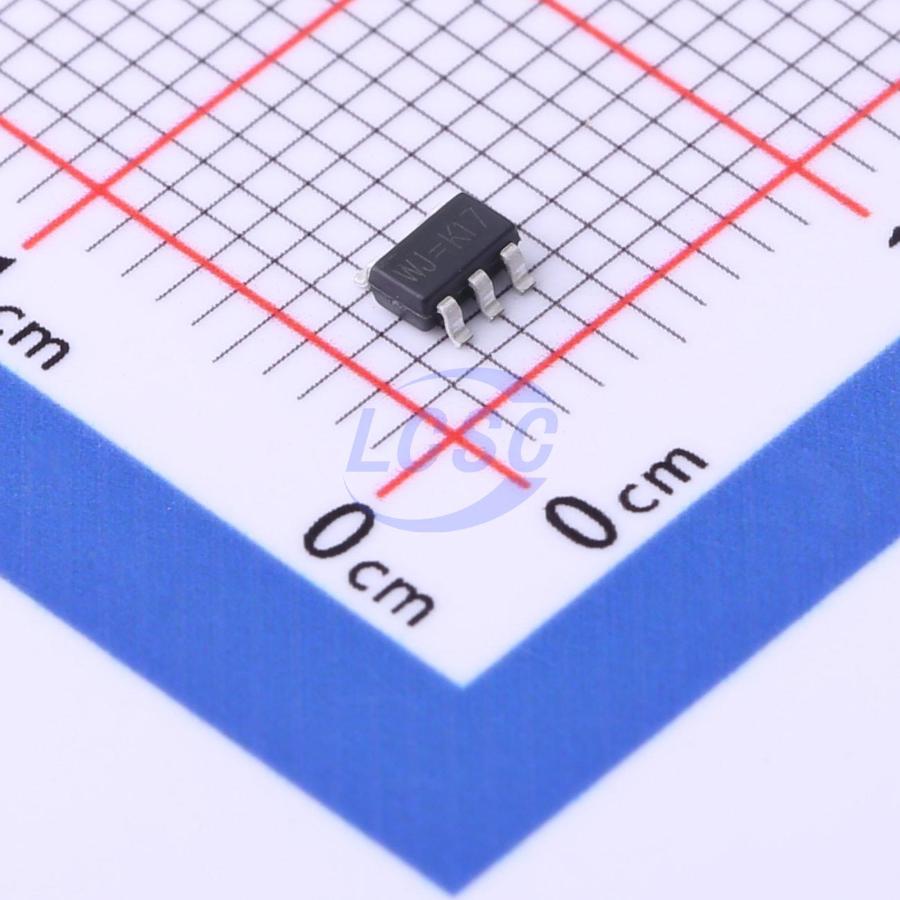

TP151C33S5
3.3V Positive Fixed SOT-23-5 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
SOT-23-5RoHSActive
500mA High PSRR Voltage Regulators
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TP151C33S5
- Store part #
- C2844725
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,960 in stock
#C2844725
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹14.79 | ₹73.95 |
| 50+ | ₹11.88 | ₹594.00 |
| 150+ | ₹10.41 | ₹1,561.50 |
| 500+ | ₹9.31 | ₹4,655.00 |
| 3,000+ | ₹7.59 | ₹22,770.00 |
| 6,000+ | ₹7.16 | ₹42,960.00 |
5 × ₹14.79
₹73.95
excl. GST
₹87.26 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TP151C33S5
₹73.95 for 5 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃@(Ta)
- Supply Current (Iq)
- 70uA
- Output Configuration
- Positive
- Output Current
- 500mA
- Operating Voltage
- 7V
- Features
- Enable control
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.035 g
Overview
The TP151C is a high-performance, 500mA LDO regulator, offering extremely high PSRR and ultra-low dropout. Ideal for portable RF and wireless applications with demanding performance and space requirements. The TP151C is available in 5-pin SOT23-5 Package. The output standards of 1.2V, 1.5V, 1.8V, 2.5V, 2.8V, 3.0V, 3.3V
Applications
- CDM/GSM mobile phone
- PDAs/MP3
- Audio/Video equipment
Key features
- Quiescent Current: 70uA
- PSRR: 75dB@1KHz
- <1uA current at shutdown mode
- Output voltage accuracy: tolerance ±2%
- Output current: 500mA (Typ.)
- SOT23-5 package
- SOT23-3 package
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | RT9013-33GB#C19268157TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 24,970 | ₹10.91 · 24,970 in stock | View |
 | WL2803E33#C41408122TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 1,780 | ₹14.01 · 1,780 in stock | View |
 | TP9001-33S5#C708748TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 1,610 | ₹11.50 · 1,610 in stock | View |
 | TPRT9013-33GB#C587158TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 72,505 | ₹12.37 · 72,505 in stock | View |
 | TP2028-3.3YN5G#C587167TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 1,545 | ₹11.48 · 1,545 in stock | View |
