TECH PUBLICDatasheet (PDF)

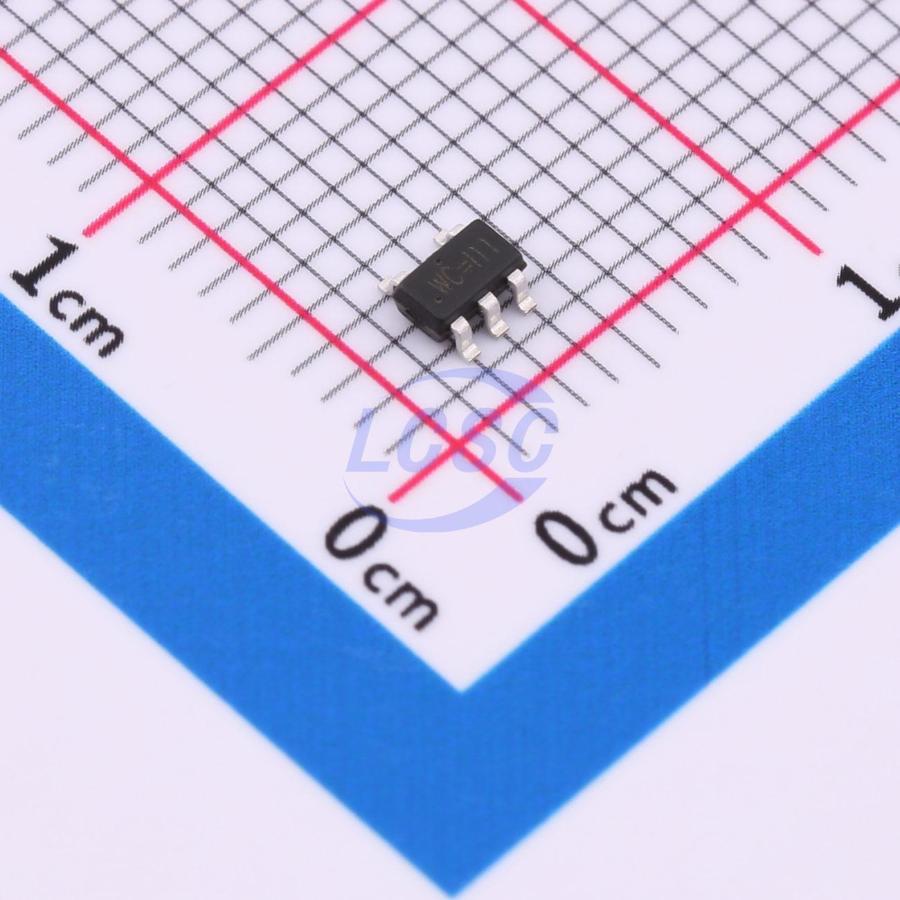

TP151C50S5
Linear Voltage Regulator IC Positive Fixed 1 Output 500mA SOT-23-5
SOT-23-5RoHSActive
500mA High PSRR Voltage Regulator
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TP151C50S5
- Store part #
- C20617282
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,560 in stock
#C20617282
Stock & price checked 21 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹11.35 | ₹56.75 |
| 50+ | ₹8.84 | ₹442.00 |
| 150+ | ₹7.58 | ₹1,137.00 |
| 500+ | ₹6.64 | ₹3,320.00 |
| 3,000+ | ₹5.89 | ₹17,670.00 |
| 6,000+ | ₹5.52 | ₹33,120.00 |
5 × ₹11.35
₹56.75
excl. GST
₹66.97 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TP151C50S5
₹56.75 for 5 + GST
Specifications
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃@(Ta)
- Supply Current (Iq)
- 70uA
- Output Configuration
- Positive
- Output Current
- 500mA
- Operating Voltage
- 7V
- Features
- Enable control
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.037 g
Overview
The TP151C is a high-performance, 500mA LDO regulator, offering extremely high PSRR and ultra-low dropout. Ideal for portable RF and wireless applications with demanding performance and space requirements. The TP151C is available in 5pin SOT23-5 Package .the output standards of 1.2V 1.5V 1.8V 2.5V 2.8V 3.0V 3.3V
Applications
- CDM/GSM mobile phone
- PDAS/MP3
- Audio/Video equipment
Key features
- Quiescent Current: 70uA
- PSRR: 75dB@1KHz
- < 1uA current at shutdown mode
- Output voltage accuracy: tolerance ± 2%
- Output current: 500mA(Typ.)
- SOT23-5 package
