TECH PUBLICDatasheet (PDF)

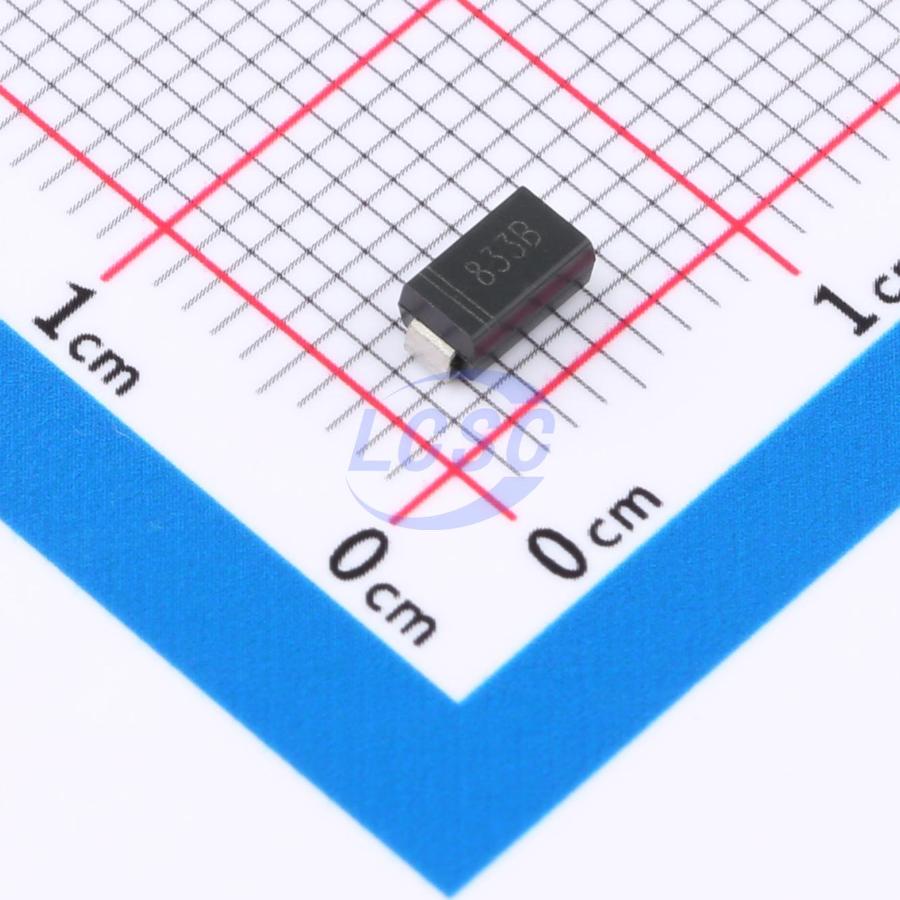

TP1SMA5933BT3G
1 Independent 20.8V~23.3V 22V SMA Single Zener Diodes RoHS
SMAROHS CompliantActive
DIODE ZENER 22V 1.5W SMA
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TP1SMA5933BT3G
- Store part #
- C49274870
- Package / case
- SMA
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,980 in stock
#C49274870
Stock & price checked 11 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹9.42 | ₹94.20 |
| 100+ | ₹7.41 | ₹741.00 |
| 300+ | ₹6.40 | ₹1,920.00 |
| 1,000+ | ₹5.65 | ₹5,650.00 |
| 5,000+ | ₹5.04 | ₹25,200.00 |
| 10,000+ | ₹4.74 | ₹47,400.00 |
10 × ₹9.42
₹94.20
excl. GST
₹111.16 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
TP1SMA5933BT3G
₹94.20 for 10 + GST
Specifications
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -55℃~+150℃
- Pd - Power Dissipation
- 1.5W
- Reverse Leakage Current (Ir)
- 1uA@16.7V
- Impedance(Zzt)
- 18Ω
- Zener Voltage(Range)
- 20.8V~23.3V
- Zener Voltage(Nom)
- 22V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.12 g
Overview
Key features
- Total power dissipation: 1.5W max.
- Wide Zener reverse voltage range: 3.6V ~ 200V.
- Small plastic package for surface mount design.
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SMAZ22-TP#C49274896TECH PUBLIC · SMA | TECH PUBLIC | SMA | 2,670 | ₹8.96 · 2,670 in stock | View |
 | TP1SMA5934BT3G#C49274871TECH PUBLIC · SMA | TECH PUBLIC | SMA | 4,750 | ₹9.42 · 4,750 in stock | View |
 | SMAZ24-TP#C49274897TECH PUBLIC · SMA | TECH PUBLIC | SMA | 8,430 | ₹8.55 · 8,430 in stock | View |
 | TP1SMA5932BT3G#C49274869TECH PUBLIC · SMA | TECH PUBLIC | SMA | 2,400 | ₹9.29 · 2,400 in stock | View |
 | SMAZ20-TP#C49274895TECH PUBLIC · SMA | TECH PUBLIC | SMA | 4,670 | ₹7.96 · 4,670 in stock | View |
