TECH PUBLICDatasheet (PDF)

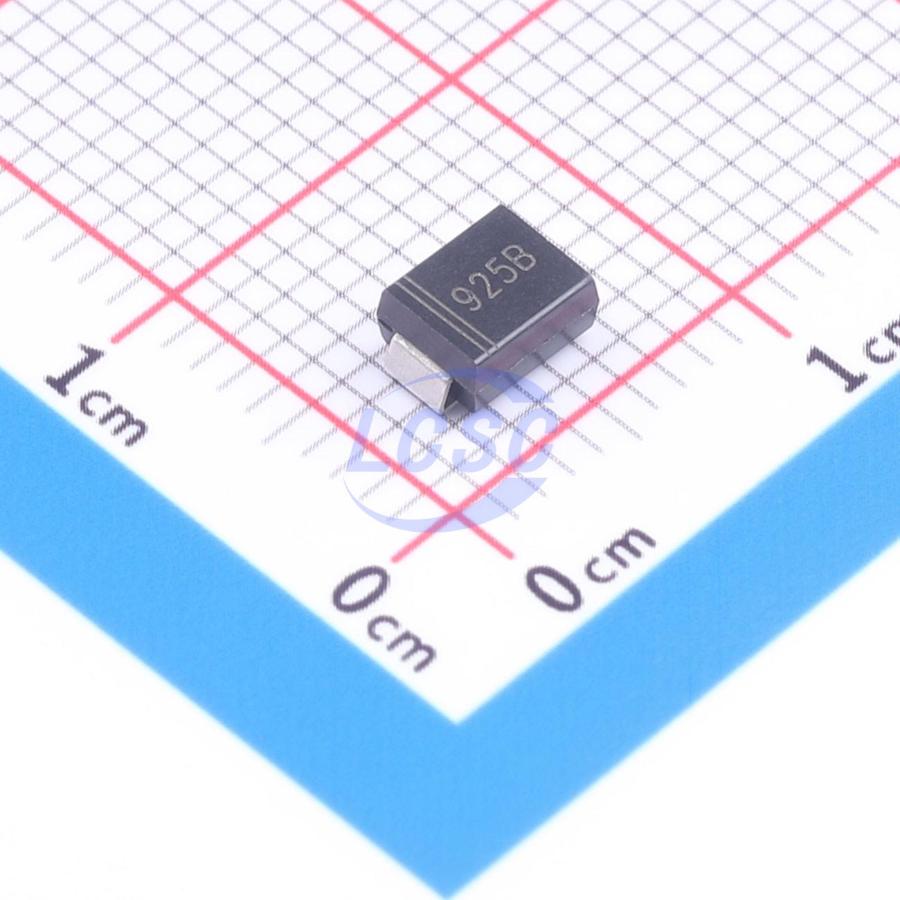

TP1SMB5925BT3G
1 Independent 9.5V~10.5V 10V SMB Single Zener Diodes RoHS
SMBROHS CompliantActive
DIODE ZENER 10V 3W SMB
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TP1SMB5925BT3G
- Store part #
- C49452359
- Package / case
- SMB
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,575 in stock
#C49452359
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹14.53 | ₹72.65 |
| 50+ | ₹11.42 | ₹571.00 |
| 150+ | ₹9.87 | ₹1,480.50 |
| 500+ | ₹8.71 | ₹4,355.00 |
| 3,000+ | ₹7.78 | ₹23,340.00 |
| 6,000+ | ₹7.32 | ₹43,920.00 |
5 × ₹14.53
₹72.65
excl. GST
₹85.73 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TP1SMB5925BT3G
₹72.65 for 5 + GST
Specifications
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -55℃~+150℃
- Pd - Power Dissipation
- 3W
- Reverse Leakage Current (Ir)
- 5uA@8V
- Impedance(Zzt)
- 4.5Ω
- Zener Voltage(Range)
- 9.5V~10.5V
- Zener Voltage(Nom)
- 10V
- Impedance(Zzk)
- 500Ω
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.192 g
Overview
Applications
- Voltage regulation
Key features
- Power Dissipation 3.0W
- Zener Voltage 3.3V~200V
- Glass Passivated Die
- Cathode Indicated by Color Band
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TP1SMB5924BT3G#C49452358TECH PUBLIC · SMB | TECH PUBLIC | SMB | 2,920 | ₹14.90 · 2,920 in stock | View |
 | TP1SMB5926BT3G#C49452360TECH PUBLIC · SMB | TECH PUBLIC | SMB | 2,165 | ₹14.90 · 2,165 in stock | View |
