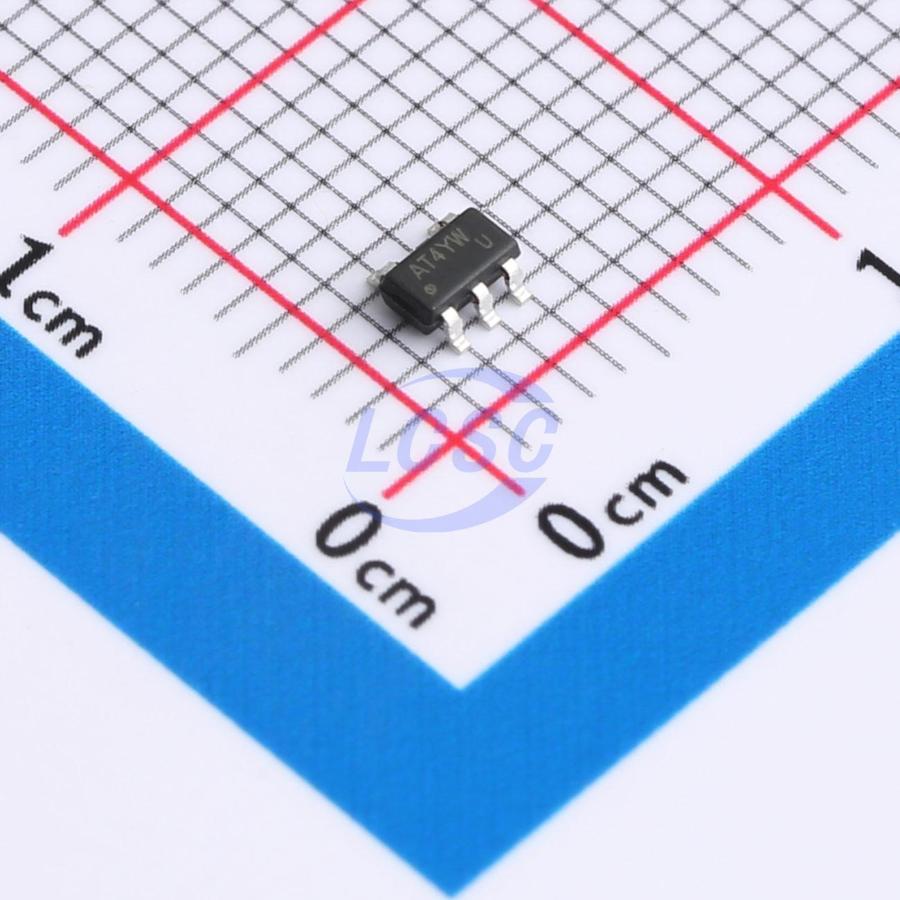

TP321-TR(UMW)

40mA 1 5mV 1V/us 90dB 10pA 1MHz 45uA Rail-to-Rail Input, Rail-to-Rail Output SOT-23-5 Instrumentation, Op Amps, Buffer Amps RoHS

SOT-23-5ROHS CompliantActive

General Purpose, 1MHz, Micro-Power CMOS Op-Amps

Manufacturer: UMW
Manufacturer part #: TP321-TR(UMW)
Store part #: C20754794
Package / case: SOT-23-5
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,870 in stock

#C20754794

Stock & price checked 3 days ago

Quantity	Unit price	Pack price
5+	₹12.95	₹64.75
50+	₹10.13	₹506.50
150+	₹8.73	₹1,309.50
500+	₹7.69	₹3,845.00
3,000+	₹6.84	₹20,520.00
6,000+	₹6.42	₹38,520.00

Quantity (min 5, multiples of 5)

5 × ₹12.95

₹64.75

excl. GST

₹76.41 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

TP321-TR(UMW)

₹64.75 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Output Current: 40mA
Number of Channels: 1
Vos - Input Offset Voltage: 5mV
Slew Rate: 1V/us
Input Offset Current(Ios): 1pA
Operating Temperature: -40℃~+125℃
Common Mode Rejection Ratio(CMRR): 90dB
Ib - Input Bias Current: 10pA
Input Offset Voltage Drift(Vos TC): 2uV/℃
Gain Bandwidth Product: 1MHz
Quiescent Current: 45uA
Input Voltage Noise Density: 45nV/√Hz@1kHz
Rail to Rail: Rail-to-Rail Input, Rail-to-Rail Output
Single Supply: 2.1V~6V

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Moisture sensitivity: MSL 1 (unlimited)
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.042 g

Overview

UMW TP321/358 are general-purpose single, dual, and quad CMOS op-amps featuring low offset, wide bandwidth, low power consumption, low supply voltage, and rail-to-rail input and output characteristics. These op-amps are stable at unity gain, with a constant 1MHz gain-bandwidth product and 1V/μs slew rate, while each amplifier consumes only 45μA of supply current. The rail-to-rail input and output characteristics allow full utilization of the supply voltage range for signal processing. This combination of features makes the UMW TP321/358 outstanding and cost-effective among RRIO CMOS op-amps. Their ability to minimize errors caused by supply voltage variations over battery life while maintaining high common-mode rejection ratio makes them ideal for battery-powered applications.

Applications

Audio output
Battery and power control
Smoke/gas/environmental sensors
Medical devices
Portable instruments and mobile devices

Key features

General purpose, low cost
Gain bandwidth product: 1MHz
Low quiescent current: 45μA/amplifier
Offset voltage: 5.0mV max
Offset voltage temperature drift: 2uV/℃
Input bias current: 10pA
CMRR/PSRR: 90dB
Unity-gain stable
Rail-to-rail input and output
No phase reversal under input overdrive
Supply voltage range: 2.1V to 6.0V
Operating temperature range: -40℃ to 125℃
ESD rating: 8kV - HBM, 2kV - CDM, 500V - MM
