3PEAKDatasheet (PDF)

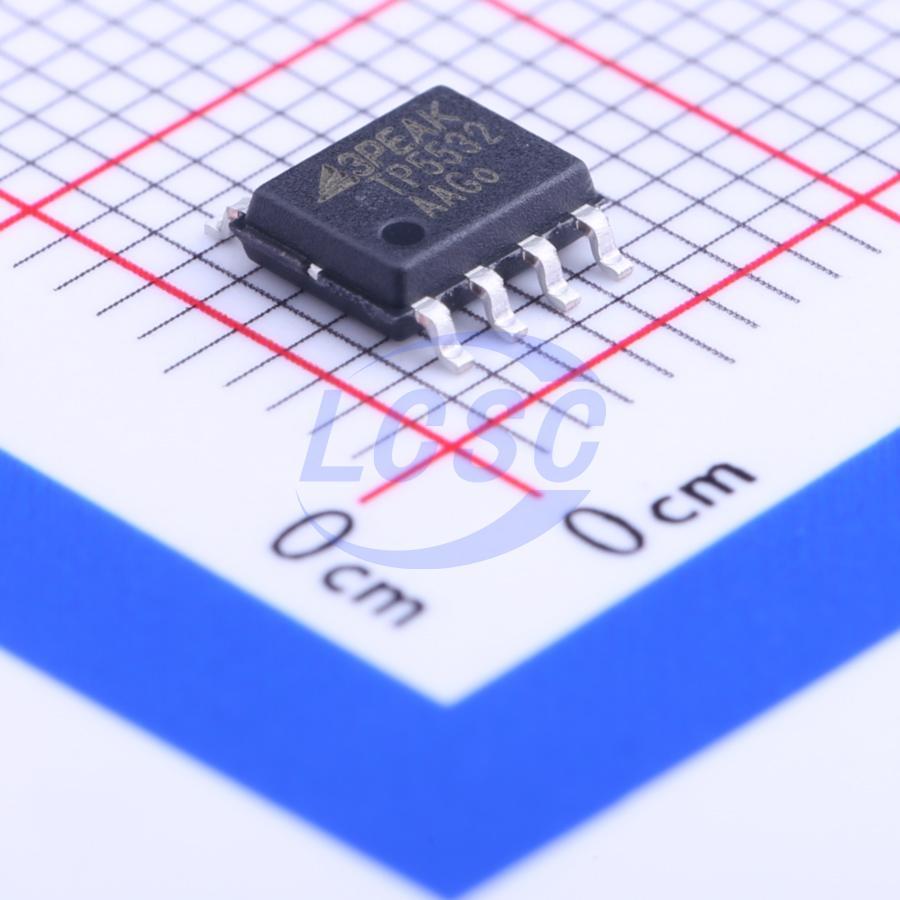

TP5532-SR
1 2uV 0.16V/us 130dB 50pA 40uA 350kHz Rail-to-Rail Input, Rail-to-Rail Output SOIC-8 Instrumentation, Op Amps, Buffer Amps RoHS
SOIC-8ROHS3 CompliantActive
RRIO, Zero Drift Op-amps
- Manufacturer
- 3PEAK
- Manufacturer part #
- TP5532-SR
- Store part #
- C126444
- Package / case
- SOIC-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,610 in stock
#C126444
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹174.11 | ₹870.55 |
| 50+ | ₹133.99 | ₹6,699.50 |
| 150+ | ₹116.65 | ₹17,497.50 |
| 500+ | ₹95.19 | ₹47,595.00 |
| 2,500+ | ₹85.65 | ₹2,14,125.00 |
| 4,000+ | ₹79.79 | ₹3,19,160.00 |
5 × ₹174.11
₹870.55
excl. GST
₹1,027.25 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
TP5532-SR
₹870.55 for 5 + GST
Specifications
- Number of Channels
- 1
- Vos - Input Offset Voltage
- 2uV
- Slew Rate
- 0.16V/us
- Input Offset Current(Ios)
- 100pA
- Operating Temperature
- -40℃~+125℃
- Common Mode Rejection Ratio(CMRR)
- 130dB
- Ib - Input Bias Current
- 50pA
- Input Offset Voltage Drift(Vos TC)
- 8nV/℃
- Quiescent Current
- 40uA
- Gain Bandwidth Product
- 350kHz
- Features
- Zero drift / auto-zero;Built-in compensation;ESD protection
- Input Voltage Noise Density
- 55nV/√Hz@1kHz
- Rail to Rail
- Rail-to-Rail Input, Rail-to-Rail Output
- Single Supply
- 1.8V~5.5V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.197 g
Overview
The 3PEAK TP5531/2/4 low-power chopper stabilized operational amplifiers provide input offset voltage correction for very low offset and offset drift over time and temperature. The devices operate with a single supply voltage as low as 1.8V, while drawing 34μA per amplifier of quiescent current with a gain bandwidth product of 350kHz. They are unity gain stable, have no 1/f noise, have good Power Supply Rejection Ratio (PSRR) and Common Mode Rejection Ratio (CMRR), and feature rail-to-rail input and output swing. The devices were designed using an advanced CMOS process. The TP5531 (single version) is available in SC70-5, SOT23-5 and SO-8 packages. The TP5532 (dual version) is offered in MSOP-8 and SO-8 package. The TP5534 (quad version) is available in TSSOP-14 and SOIC-14 package. All versions are specified for operation from -40°C to 125°C.
Applications
- Transducer Amplifier
- Bidirectional Current Sense
- DC Offset Correction
- Temperature Measurement
- Remote Located Sensors
- Battery-Powered Instruments
- Electronic Weigh Scales
Key features
- LOW OFFSET VOLTAGE: 10 μV (Max)
- ZERO DRIFT: 0.008 μV/°C
- 0.1Hz to 10Hz Noise: 1.1 μVpp
- Low Supply Current: 34 μA per Amplifier
- Bandwidth: 350 kHz
- Slew Rate: 0.16 V/μs
- High Gain, 130 dB High CMRR and PSRR
- Rail-to-rail Input and Output Swing
- -40°C to 125°C Operation Range
- Small Packages: SC70 and SOT23 (TP5531)
