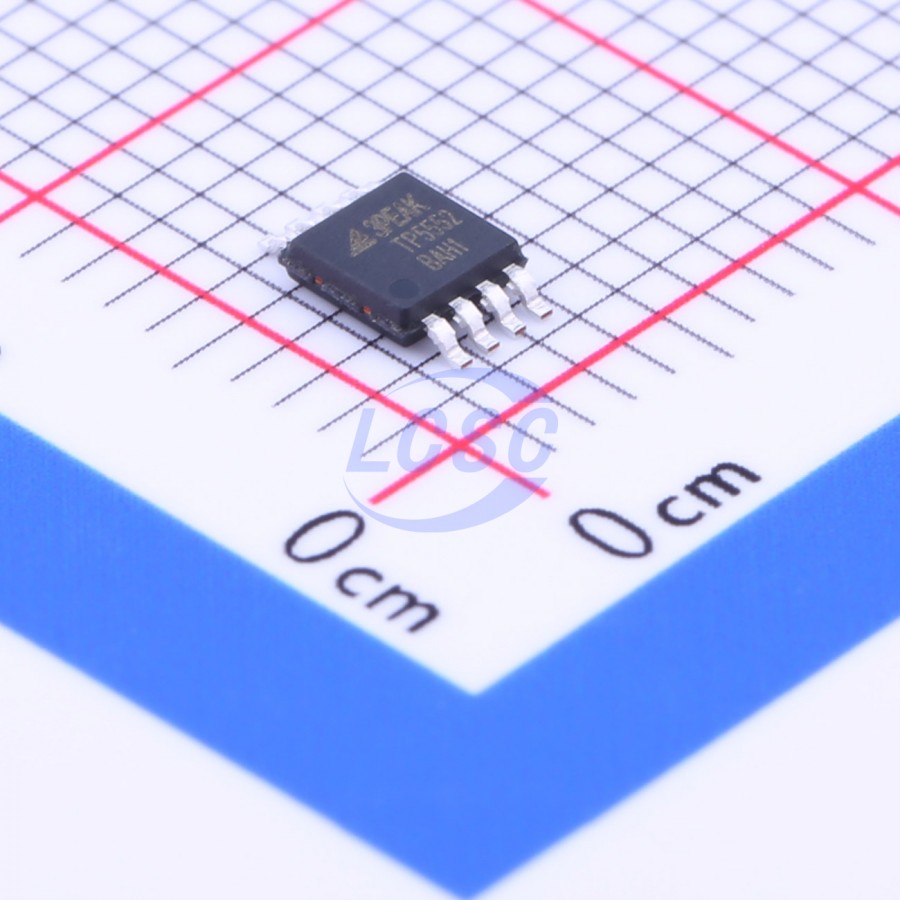

TP5552-VR

60mA 2 5uV 2.5V/us 130dB 50pA 500uA 3.5MHz Rail-to-Rail Input, Rail-to-Rail Output MSOP-8 Instrumentation, Op Amps, Buffer Amps RoHS

MSOP-8ROHS3 CompliantActive

Ultra Low Noise, 3.5MHz, RRIO Zero-Drift Op-amps

Manufacturer: 3PEAK
Manufacturer part #: TP5552-VR
Store part #: C248604
Package / case: MSOP-8
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

4,237 in stock

#C248604

Stock & price checked 3 days ago

Quantity	Unit price	Pack price
1+	₹249.35	₹249.35
10+	₹196.88	₹1,968.80
30+	₹170.85	₹5,125.50
100+	₹144.84	₹14,484.00
500+	₹129.23	₹64,615.00
1,000+	₹121.20	₹1,21,200.00

Quantity (min 1)

1 × ₹249.35

₹249.35

excl. GST

₹294.23 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

TP5552-VR

₹249.35 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Output Current: 60mA
Number of Channels: 2
Vos - Input Offset Voltage: 5uV
Slew Rate: 2.5V/us
Input Offset Current(Ios): 400pA
Operating Temperature: -40℃~+125℃
Common Mode Rejection Ratio(CMRR): 130dB
Ib - Input Bias Current: 50pA
Input Offset Voltage Drift(Vos TC): 50nV/℃
Quiescent Current: 500uA
Gain Bandwidth Product: 3.5MHz
Features: Zero drift / auto-zero;ESD protection
Input Voltage Noise Density: 15nV/√Hz@1kHz
Rail to Rail: Rail-to-Rail Input, Rail-to-Rail Output
Dual Supply: -2.75V~-900mV;900mV~2.75V
Single Supply: 1.8V~5.5V

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
Moisture sensitivity: MSL 3 (168 hours)
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.08 g

Overview

The TP555x op-amps are single/dual/quad chopper stabilized zero-drift operational amplifier optimized for single or dual supply operation from 1.8V to 5.5V and ±0.9V to ±2.75V. The TP555x features very low input offset voltage and low noise with 1/f noise corner down to 0.1Hz. The TP555x is designed to have ultra low offset voltage and offset temperature drift, wide gain bandwidth and rail-to-rail input/output swing while minimizing power consumption. The TP555x family can provide very low offset voltage (5μv Max.) and near-zero drift over time and temperature with excellent CMRR and PSRR.

Applications

Medical Instrumentation
Temperature Measurements
Precision Current Sensing
ADC Drivers
Process Control Systems
Precision Voltage Reference Buffers

Key features

Low Offset Voltage: 5μv (Max)
Zero Drift: 0.05μV/°C (Max)
1/f Noise Corner Down to 0.1Hz: - 15 nV/√Hz Input Noise Voltage @1kHz - 350 nVₚ₋ₚ Noise Voltage @.1Hz to ~
Slew Rate: 2.5V/μs
Bandwidth: 3.5 MHz
Low Supply Current: 500 μA per Amplifier
Low Input Bias Current: 50 pA Typical
Rail-to-Rail Output Voltage Range
High Gain, CMRR, PSRR: 130 dB
7 kV HBM ESD Rating
-40°C to 125°C Operation Range
