3PEAKDatasheet (PDF)

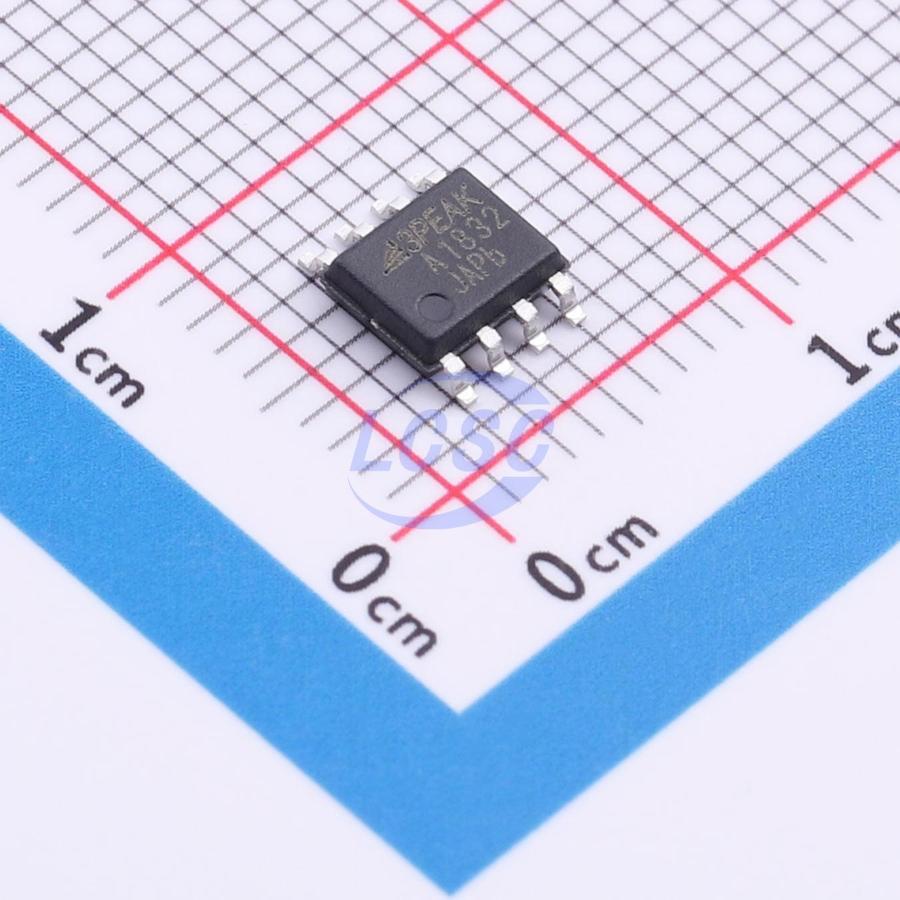

TPA1832-SO1R
62mA 1uV 0.7V/us 160dB 20pA 140uA 1.1MHz Rail-to-Rail Input, Rail-to-Rail Output SOP-8 Instrumentation, Op Amps, Buffer Amps RoHS
SOP-8ROHS3 CompliantActive
- Manufacturer
- 3PEAK
- Manufacturer part #
- TPA1832-SO1R
- Store part #
- C38003712
- Package / case
- SOP-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,746 in stock
#C38003712
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹85.52 | ₹85.52 |
| 10+ | ₹65.71 | ₹657.10 |
| 30+ | ₹57.44 | ₹1,723.20 |
| 100+ | ₹46.79 | ₹4,679.00 |
| 500+ | ₹42.01 | ₹21,005.00 |
| 1,000+ | ₹39.17 | ₹39,170.00 |
1 × ₹85.52
₹85.52
excl. GST
₹100.91 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
TPA1832-SO1R
₹85.52 for 1 + GST
Specifications
- Output Current
- 62mA
- Vos - Input Offset Voltage
- 1uV
- Slew Rate
- 0.7V/us
- Input Offset Current(Ios)
- 20pA
- Operating Temperature
- -40℃~+125℃
- Common Mode Rejection Ratio(CMRR)
- 160dB
- Ib - Input Bias Current
- 20pA
- Input Offset Voltage Drift(Vos TC)
- 10nV/℃
- Quiescent Current
- 140uA
- Gain Bandwidth Product
- 1.1MHz
- Features
- Zero drift / auto-zero
- Input Voltage Noise Density
- 32nV/√Hz@1kHz
- Rail to Rail
- Rail-to-Rail Input, Rail-to-Rail Output
- Single Supply
- 4V~30V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.105 g
Overview
The TPA183x is a micropower, zero-drift amplifier featuring a low offset voltage of 18 μV maximum and stable frequency response, suitable for high-precision sensing applications requiring low standby power consumption. The TPA183x family of devices offers rail-to-rail input and output. These devices deliver excellent AC performance, including 1.1-MHz bandwidth and 0.7-V/μs slew rate, while consuming only 140 μA of quiescent current per amplifier. All versions operate over the industrial temperature range of -40°C to +125°C.
Applications
- Battery test systems
- Sensor interfaces
- Instrumentation
- Motor control
- DC power supplies
Key features
- Supply voltage: 4 V to 30 V
- Low quiescent current: 140 μA typical at 25°C
- Low offset voltage: ±7 μV maximum at 25°C
- Zero drift: ±0.01 μV/°C
- Rail-to-rail output
- Gain bandwidth product: 1.1 MHz
- Slew rate: 0.7 V/μs
