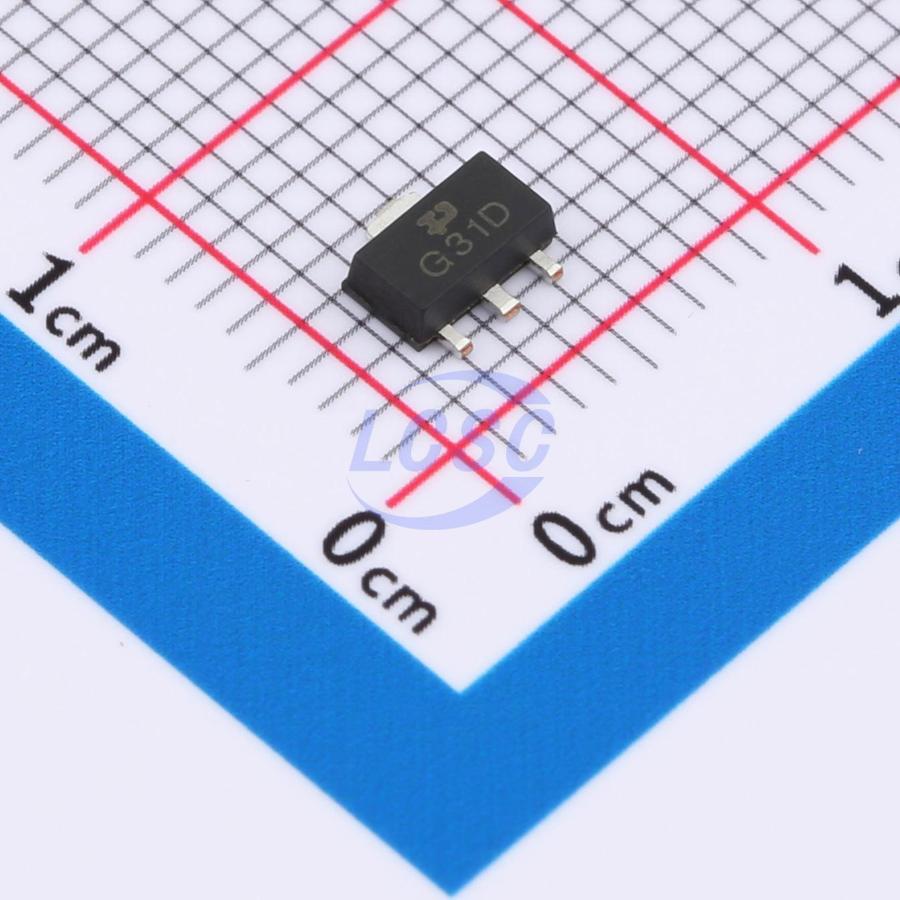

TPAP2205-33Y
Linear Voltage Regulator IC Positive Fixed 1 Output 200mA SOT-89-3
SOT-89-3RoHSActive
High PSRR Voltage Regulator
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TPAP2205-33Y
- Store part #
- C19268131
- Package / case
- SOT-89-3
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
830 in stock
#C19268131
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹18.87 | ₹94.35 |
| 50+ | ₹14.86 | ₹743.00 |
| 150+ | ₹12.85 | ₹1,927.50 |
| 1,000+ | ₹11.34 | ₹11,340.00 |
| 2,000+ | ₹10.13 | ₹20,260.00 |
| 5,000+ | ₹9.54 | ₹47,700.00 |
5 × ₹18.87
₹94.35
excl. GST
₹111.33 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
TPAP2205-33Y
₹94.35 for 5 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃
- Supply Current (Iq)
- 3uA
- Output Configuration
- Positive
- Output Current
- 200mA
- Operating Voltage
- 30V
- Features
- Over Current Protection;Thermal shutdown
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.154 g
Overview
Applications
- Portable, Battery Powered Equipment
- Low Power Microcontrollers
- Laptop, Palmtops and PDAs
- Wireless Communication Equipment
- Audio/Video Equipment
- Car Navigation Systems
- Industrial Controls
- Weighting Scales
- Meters
- Home Automation
Key features
- 1.5μA Ground Current at no Load
- ±2% Output Accuracy
- 200mA Output Current
- Wide Operating Input Voltage Range: 2V to 30V
- Dropout Voltage: 0.35V at 100mA (VOUT = 5V)
- Support Fixed Output Voltage: 3.3V, 5V
- Stable with Ceramic or Tantalum Capacitor
- Current Limit Protection
- Over-Temperature Protection
- SOT89-3 Package Available
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
