TECH PUBLICDatasheet (PDF)

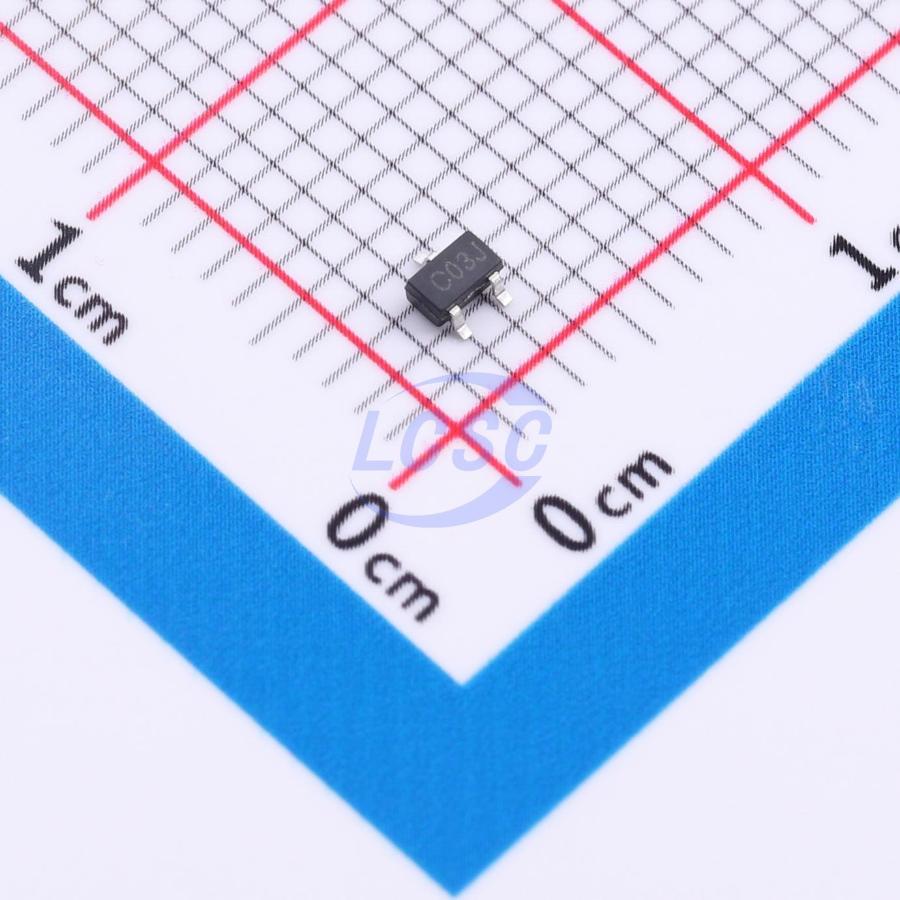

TPAPX803L20-40C3
560ms Active Low 1V~5.5V 1 SOT-323 Supervisors
SOT-323RoHSActive
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TPAPX803L20-40C3
- Store part #
- C52146036
- Package / case
- SOT-323
- Category
- Supervisors
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,535 in stock
#C52146036
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹27.31 | ₹136.55 |
| 50+ | ₹21.35 | ₹1,067.50 |
| 150+ | ₹18.81 | ₹2,821.50 |
| 500+ | ₹15.62 | ₹7,810.00 |
| 3,000+ | ₹14.21 | ₹42,630.00 |
| 6,000+ | ₹13.35 | ₹80,100.00 |
5 × ₹27.31
₹136.55
excl. GST
₹161.13 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TPAPX803L20-40C3
₹136.55 for 5 + GST
Specifications
- Reset Timeout
- 560ms
- Operating Temperature
- -40℃~+105℃
- output type
- Open-drain
- Reset Active Level
- Active Low
- standby current
- 2uA
- Voltage - Supply
- 1V~5.5V
- ChipType
- Voltage monitor
- Threshold Voltage
- 4V
- Number of Voltages Monitored
- 1
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.029 g
Overview
Applications
- Computers
- Embedded systems
- Battery-powered devices
- Smart instruments
- CPU and logic circuit reset
- Power failure detectors
- Automotive electronics
Key features
- High accuracy ±2%
- Precision VCC monitoring for +2.5V, +3V, +3.3V, and +5V supplies
- Power supply transient immunity
- Reset guaranteed valid with VCC as low as +1V
- Fully specified over full temperature range
- 2μA supply current
- One output configuration: open-drain active-low reset output
- SOT-323 package
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TPTLV803EA40DCKR#C52146038TECH PUBLIC · SOT-323 | TECH PUBLIC | SOT-323 | 3,000 | ₹27.49 · 3,000 in stock | View |
 | TPAX803JC3#C52146035TECH PUBLIC · SOT-323 | TECH PUBLIC | SOT-323 | 2,980 | ₹32.28 · 2,980 in stock | View |
 | TPMIC803-40D3VC3#C52146037TECH PUBLIC · SOT-323 | TECH PUBLIC | SOT-323 | 2,995 | ₹27.31 · 2,995 in stock | View |
 | TPADM803JAKSZ#C52146039TECH PUBLIC · SOT-323 | TECH PUBLIC | SOT-323 | 3,000 | ₹27.49 · 3,000 in stock | View |
