TECH PUBLICDatasheet (PDF)

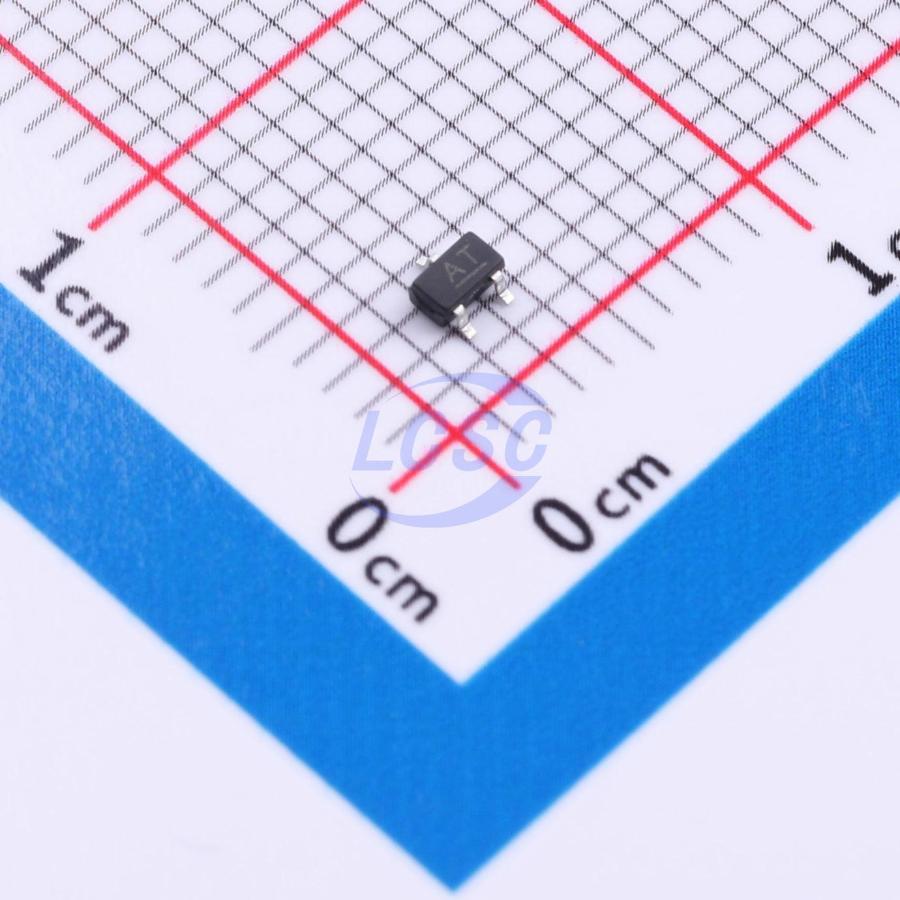

TPAPX803L20-46C3
240ms Active Low 1V~5.5V 1 SOT-323 Supervisors
SOT-323RoHSActive
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TPAPX803L20-46C3
- Store part #
- C52146023
- Package / case
- SOT-323
- Category
- Supervisors
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,980 in stock
#C52146023
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹18.57 | ₹92.85 |
| 50+ | ₹14.61 | ₹730.50 |
| 150+ | ₹12.62 | ₹1,893.00 |
| 500+ | ₹11.14 | ₹5,570.00 |
| 3,000+ | ₹9.95 | ₹29,850.00 |
| 6,000+ | ₹9.35 | ₹56,100.00 |
5 × ₹18.57
₹92.85
excl. GST
₹109.56 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TPAPX803L20-46C3
₹92.85 for 5 + GST
Specifications
- Reset Timeout
- 240ms
- Operating Temperature
- -40℃~+105℃
- output type
- Open-drain
- Reset Active Level
- Active Low
- standby current
- 2uA
- Voltage - Supply
- 1V~5.5V
- ChipType
- Voltage monitor
- Threshold Voltage
- 4.63V
- Number of Voltages Monitored
- 1
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.029 g
Overview
Applications
- Computers
- Embedded systems
- Battery-powered devices
- Smart instruments
- CPU and logic circuit reset
- Power failure detectors
- Automotive electronics
Key features
- High accuracy ±2%
- Precision VCC monitoring for +2.5V, +3V, +3.3V, and +5V supplies
- Power supply transient immunity
- Reset signal guaranteed valid with VCC as low as +1V
- Full temperature range guaranteed specifications
- 2μA supply current
- Single output configuration: open-drain, active-low RESET output
- SOT-323 package
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TPAX803LC3#C52146021TECH PUBLIC · SOT-323 | TECH PUBLIC | SOT-323 | 2,940 | ₹22.60 · 2,940 in stock | View |
 | TPMIC803-46D3VC3#C52146024TECH PUBLIC · SOT-323 | TECH PUBLIC | SOT-323 | 2,905 | ₹18.57 · 2,905 in stock | View |
 | TPTLV803EA46DCKR#C52146025TECH PUBLIC · SOT-323 | TECH PUBLIC | SOT-323 | 2,950 | ₹18.57 · 2,950 in stock | View |
 | TPADM803LAKSZ#C52146026TECH PUBLIC · SOT-323 | TECH PUBLIC | SOT-323 | 2,975 | ₹24.74 · 2,975 in stock | View |
 | MAX803SQ463T1G-TP#C52146027TECH PUBLIC · SOT-323 | TECH PUBLIC | SOT-323 | 2,985 | ₹18.71 · 2,985 in stock | View |
