TECH PUBLICDatasheet (PDF)

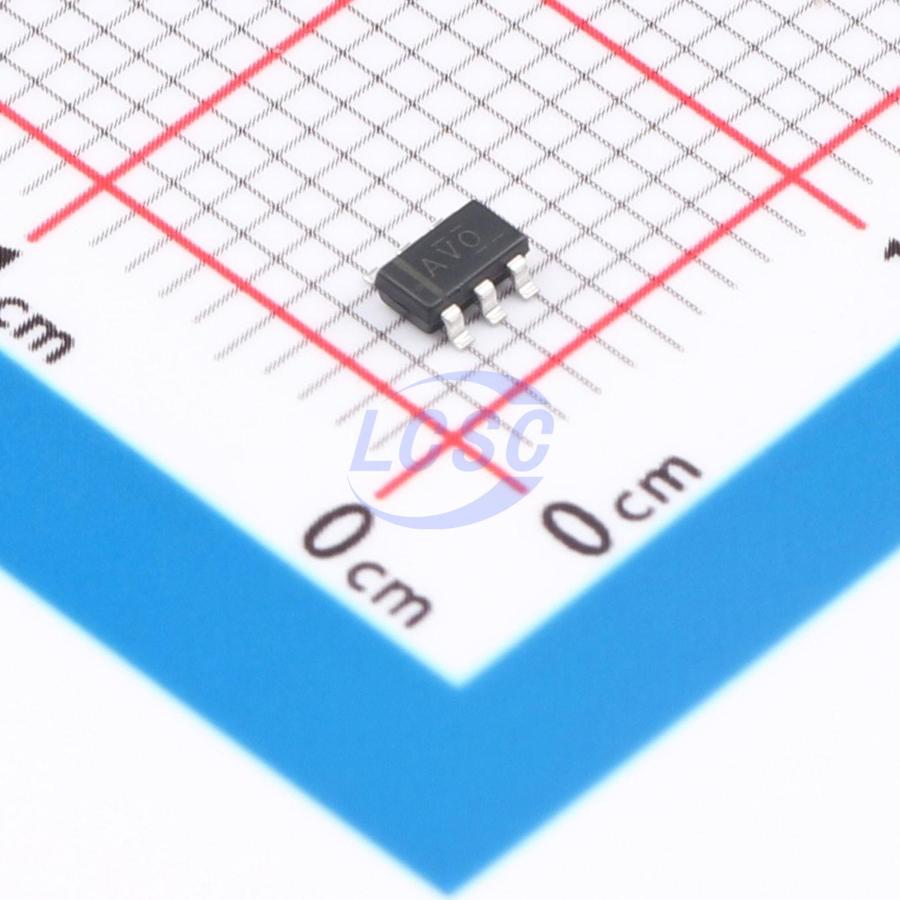

TPAX3808G33S6
Manual reset input Active Low 1.7V~6.5V 1 SOT-23-6L Supervisors
SOT-23-6LRoHSActive
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TPAX3808G33S6
- Store part #
- C51886188
- Package / case
- SOT-23-6L
- Category
- Supervisors
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,975 in stock
#C51886188
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹27.54 | ₹137.70 |
| 50+ | ₹23.97 | ₹1,198.50 |
| 150+ | ₹22.45 | ₹3,367.50 |
| 500+ | ₹20.55 | ₹10,275.00 |
| 3,000+ | ₹19.70 | ₹59,100.00 |
| 6,000+ | ₹19.18 | ₹1,15,080.00 |
5 × ₹27.54
₹137.70
excl. GST
₹162.49 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TPAX3808G33S6
₹137.70 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+125℃
- output type
- Open-drain
- Function
- Manual reset input
- Reset Active Level
- Active Low
- standby current
- 2.8uA
- Voltage - Supply
- 1.7V~6.5V
- ChipType
- Voltage monitor
- Threshold Voltage
- 3.07V
- Number of Voltages Monitored
- 1
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.036 g
Overview
This series of microprocessor supervisory circuits monitors system voltages from 0.4V to 5.0V, asserting an active-low open-drain RESET signal when the SENSE voltage falls below a preset threshold or the manual reset pin is pulled low. After both the SENSE voltage and manual reset signal return above their respective thresholds, the RESET output remains low for a user-adjustable delay period.
Applications
- DSP or microcontroller applications
- Laptop/desktop computers
- FPGA/ASIC applications
- Portable/battery-powered products
- PDA/handheld products
Key features
- Power-on reset generator with adjustable delay time (1.25ms to 10s)
- Ultra-low typical quiescent current of 2.8uA
- High threshold accuracy, typical 0.5%
- Fixed threshold voltages for standard voltage rails from 0.9V to 5V, with adjustable voltage option down to 0.4V
- Manual reset input
- Open-drain RESET output
- Operating temperature range: -40℃ to +125℃
- Package: SOT23-6L (TPAX3808xXXS6), DFN2x2-6L (TPAX3808XXXD6)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TPS3808G33DBVR-TP#C51886189TECH PUBLIC · SOT-23-6L | TECH PUBLIC | SOT-23-6L | 3,405 | ₹32.98 · 3,405 in stock | View |
 | TPNCP308SN330T1G#C51939662TECH PUBLIC · SOT-23-6L | TECH PUBLIC | SOT-23-6L | 480 | ₹32.89 · 480 in stock | View |
