TECH PUBLICDatasheet (PDF)

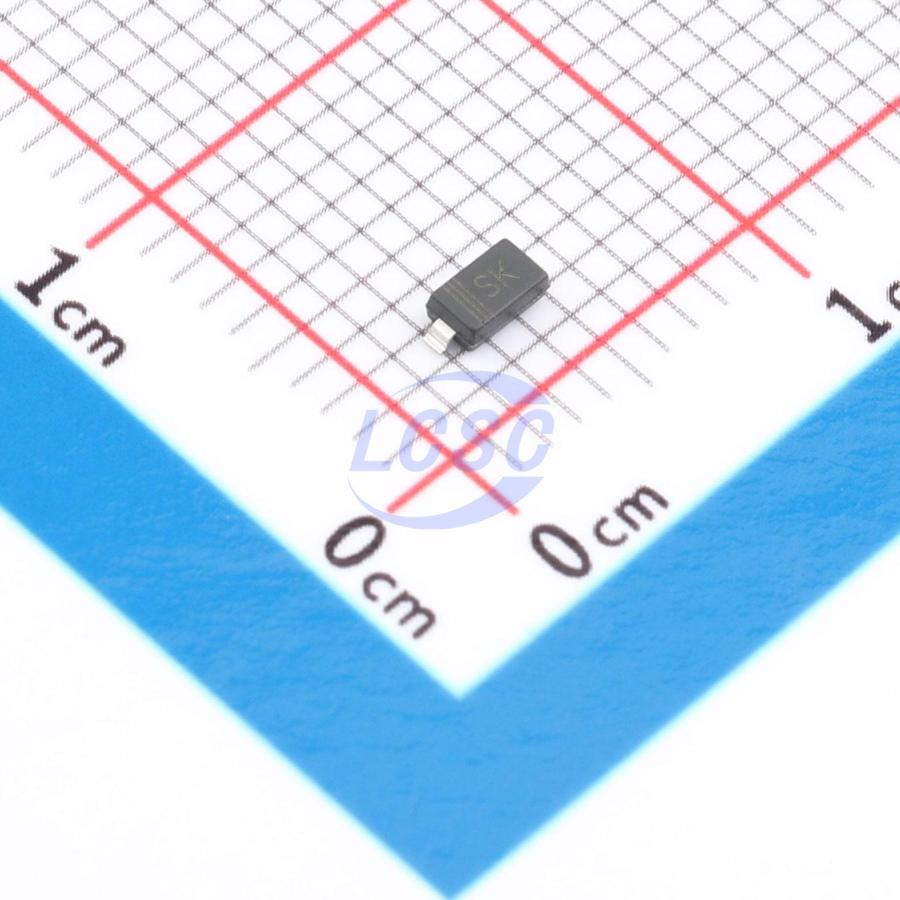

TPB1A30-123
1 Independent 30V 750mV@3A 1A SOD-123 Single Diodes
SOD-123RoHSActive
DIODE SCHOTTKY 30V SOD-123
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TPB1A30-123
- Store part #
- C51886236
- Package / case
- SOD-123
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,820 in stock
#C51886236
Stock & price checked 11 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 20+ | ₹3.35 | ₹67.00 |
| 200+ | ₹2.59 | ₹518.00 |
| 600+ | ₹2.17 | ₹1,302.00 |
| 3,000+ | ₹1.92 | ₹5,760.00 |
| 9,000+ | ₹1.71 | ₹15,390.00 |
| 21,000+ | ₹1.59 | ₹33,390.00 |
20 × ₹3.35
₹67.00
excl. GST
₹79.06 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TPB1A30-123
₹67.00 for 20 + GST
Specifications
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -40℃~+125℃
- Voltage - DC Reverse (Vr) (Max)
- 30V
- Voltage - Forward(Vf@If)
- 750mV@3A
- Reverse Leakage Current (Ir)
- 1mA@30V
- Current - Rectified
- 1A
- Non-Repetitive Peak Forward Surge Current
- 9A
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 20 (multiples of 20)
- Unit weight
- 1 g
Overview
Applications
- Surface mount Schottky barrier rectifier
- Buck and boost DC-DC converters
- Low-voltage high-frequency switching power supplies
- Low-voltage high-frequency inverter circuits
- Low-voltage freewheeling and protection circuits
Key features
- Low forward voltage drop
- Guard ring structure for transient protection
- Fast switching
- Low leakage current
- RoHS compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | B5819W#C2890313TECH PUBLIC · SOD-123 | TECH PUBLIC | SOD-123 | 2,620 | ₹4.05 · 2,620 in stock | View |
 | 1N5819HW#C2905649TECH PUBLIC · SOD-123 | TECH PUBLIC | SOD-123 | 12,340 | ₹3.35 · 12,340 in stock | View |
 | 1N5819W#C2905650TECH PUBLIC · SOD-123 | TECH PUBLIC | SOD-123 | 38,800 | ₹3.02 · 38,800 in stock | View |
 | B5818W#C51886234TECH PUBLIC · SOD-123 | TECH PUBLIC | SOD-123 | 980 | ₹2.84 · 980 in stock | View |
 | TPB1A40-123#C18197833TECH PUBLIC · SOD-123 | TECH PUBLIC | SOD-123 | 2,220 | ₹3.76 · 2,220 in stock | View |
