TECH PUBLICDatasheet (PDF)

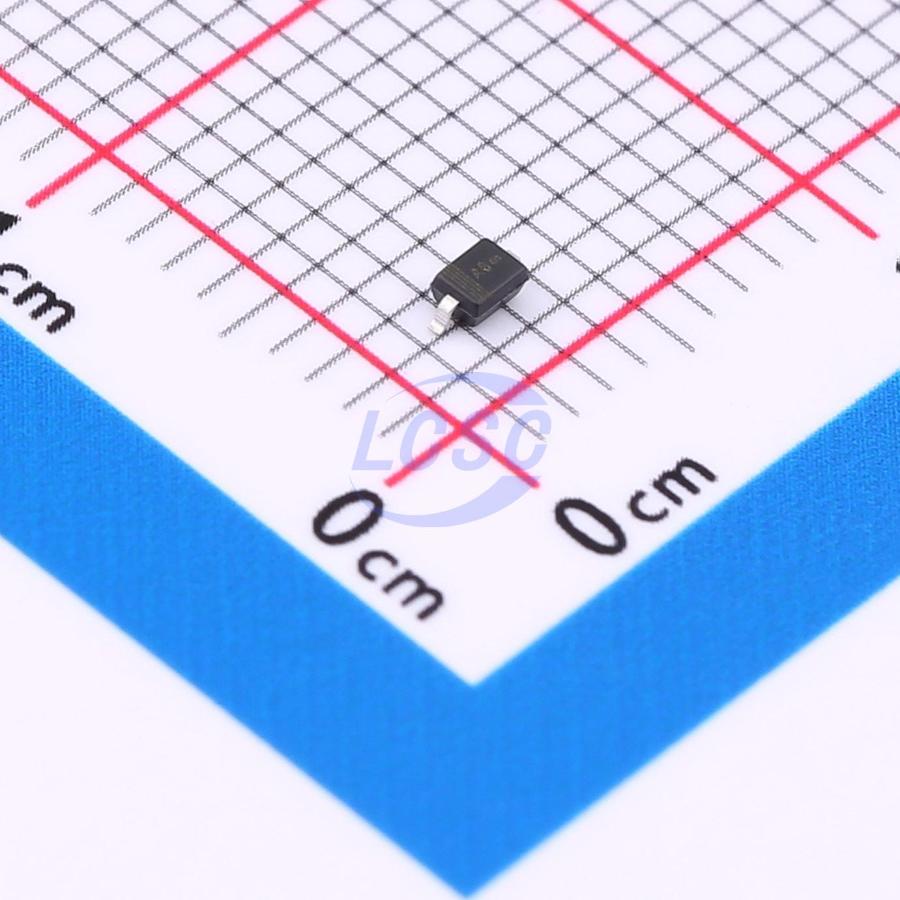

TPBAS16WS
Diode 75V 150mA Surface Mount SOD-323
SOD-323RoHSActive
DIODE GP 75V 150mA SOD-323
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TPBAS16WS
- Store part #
- C41408054
- Package / case
- SOD-323
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,900 in stock
#C41408054
Stock & price checked 15 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 20+ | ₹1.64 | ₹32.80 |
| 200+ | ₹1.60 | ₹320.00 |
| 600+ | ₹1.57 | ₹942.00 |
| 3,000+ | ₹1.56 | ₹4,680.00 |
20 × ₹1.64
₹32.80
excl. GST
₹38.70 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TPBAS16WS
₹32.80 for 20 + GST
Specifications
- Reverse Recovery Time (trr)
- 6ns
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -55℃~+150℃
- Voltage - DC Reverse (Vr) (Max)
- 75V
- Pd - Power Dissipation
- 250mW
- Voltage - Forward(Vf@If)
- 1.25V@150mA
- Reverse Leakage Current (Ir)
- 1uA@75V
- Non-Repetitive Peak Forward Surge Current
- 2A
- Current - Rectified
- 150mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 20 (multiples of 20)
- Unit weight
- 0.026 g
Overview
Applications
- High-speed switching
- General-purpose switching
- Polarity protection applications
- Freewheeling diode
- Voltage protection
Key features
- Surface mount application
- Low capacitance
- Low leakage current
- RoHS compliant
- Compact package: SOD-323
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | BAV20WS#C53477657TECH PUBLIC · SOD-323 | TECH PUBLIC | SOD-323 | 2,250 | ₹1.97 · 2,250 in stock | View |
 | 1N4148WS#C41348066TECH PUBLIC · SOD-323 | TECH PUBLIC | SOD-323 | 19,900 | ₹1.01 · 19,900 in stock | View |
 | BAS20HT1G#C54194930TECH PUBLIC · SOD-323 | TECH PUBLIC | SOD-323 | 6,700 | ₹2.00 · 6,700 in stock | View |
 | 1N4148WX#C53100330TECH PUBLIC · SOD-323 | TECH PUBLIC | SOD-323 | 2,850 | ₹1.43 · 2,850 in stock | View |
 | 1N4148WX-TP#C53100331TECH PUBLIC · SOD-323 | TECH PUBLIC | SOD-323 | 2,800 | ₹1.43 · 2,800 in stock | View |
