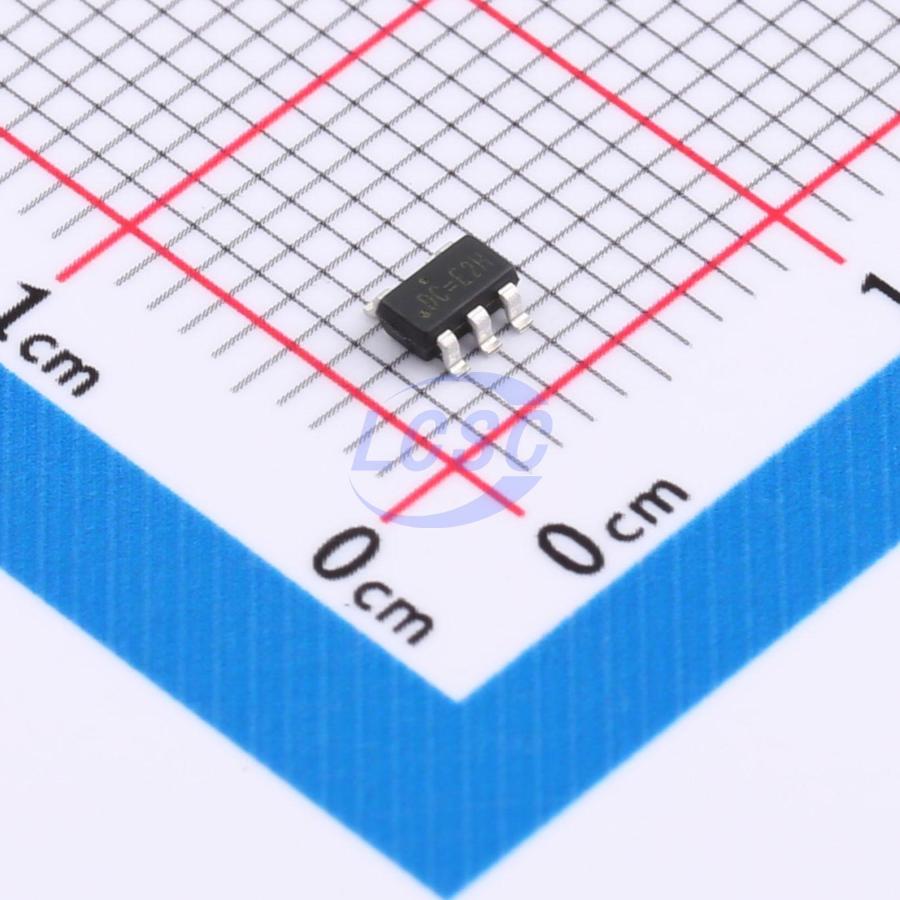

TPBL9198-18BAPRN
1.8V Positive Fixed SOT-23-5 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
SOT-23-5RoHSActive
300mA Ultra-Low Noise CMOS LDO Regulator
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TPBL9198-18BAPRN
- Store part #
- C7603381
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
580 in stock
#C7603381
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹9.58 | ₹95.80 |
| 100+ | ₹7.58 | ₹758.00 |
| 300+ | ₹6.58 | ₹1,974.00 |
| 3,000+ | ₹5.82 | ₹17,460.00 |
| 6,000+ | ₹5.23 | ₹31,380.00 |
| 9,000+ | ₹4.92 | ₹44,280.00 |
10 × ₹9.58
₹95.80
excl. GST
₹113.04 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TPBL9198-18BAPRN
₹95.80 for 10 + GST
Specifications
- Output Voltage
- 1.8V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃
- Supply Current (Iq)
- 70uA
- Output Configuration
- Positive
- Output Current
- 300mA
- Operating Voltage
- 6V
- Features
- Enable control
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.04 g
Overview
TPBL9198 is a high-performance, 300mA LDO regulator, offering extremely high PSRR and ultra-low dropout. Ideal for portable RF and wireless applications with demanding performance and space requirements. The TPBL9198 is available in 5pin SOT23-5 Package. The output standards of 1.2V, 1.5V, 1.8V, 2.5V, 2.8V, 2.9V, 3.0V, 3.3V, 3.6V
Applications
- CDM/GSM mobile phone
- PDAS
- MP3 Audio/Video equipment
Key features
- Quiescent Current: 70uA
- PSRR: 70dB@1KHz
- < 1uA current at shutdown mode
- Output current: 300mA(Typ.)
- SOT23-5 package
