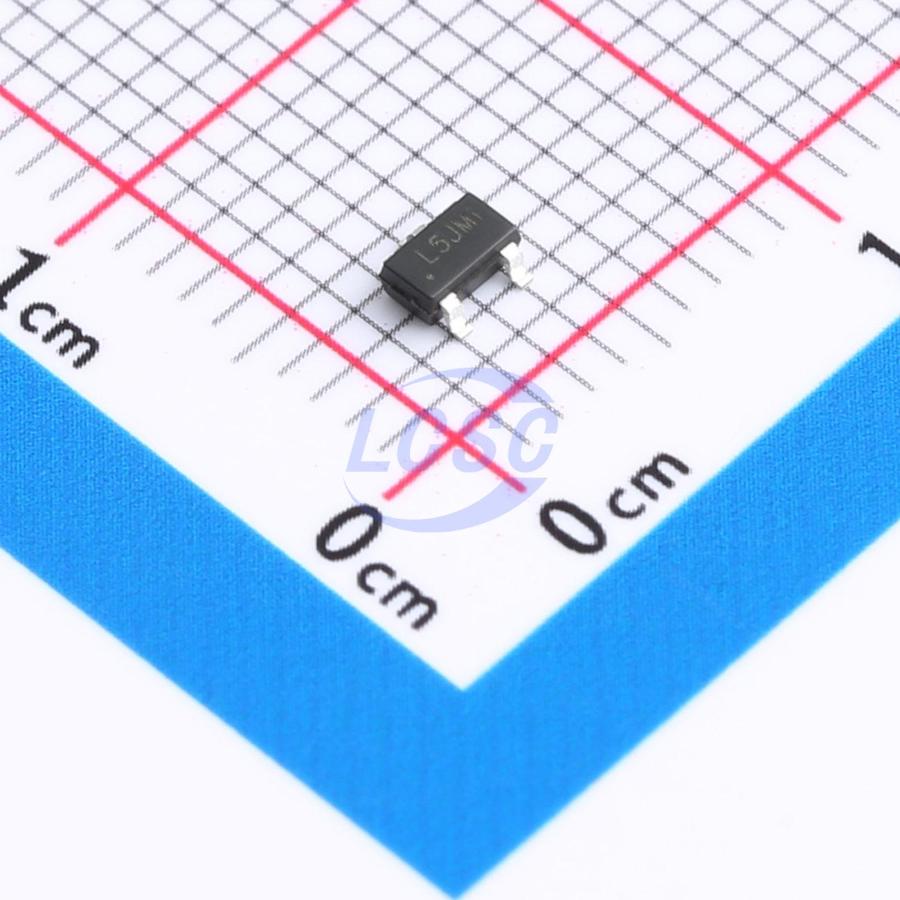

TPL820F33-3TR

The TPL820 is a series of high-performance and lowdropout linear regulators. The TPL820 series supports a maximum 42-V input voltage and a 180-mA output current with low quiescent current and high PSRR. The TPL820 series is stable with a 2.2-μF to 22-μF output capacitor, and a 4.7-μF ceramic capacitor is recommended. The TPL820 series has a high PSRR with 73 dB at 100 Hz. This feature makes the TPL820 series very suitable for power-sensitive applications with high noise from the previous stage power supply. A 2-μA ultra-low quiescent current makes the TPL820 series ideal for portable devices with a battery power supply. Current-limit and thermal overload protection circuits improve reliability under heavy load conditions. The TPL820 series provides fixed output voltage options from 3.0 V to 5 V with ±2% voltage accuracy over operating conditions. The TPL820 series is guaranteed over the junction temperature range from -40°C to +125°C.

Applications

• Handheld Devices with Battery Power Supply
• POS and Power Tools
• Meters and Smoke Detector
• Industrial Control
• Wireless and IoT Modules

Key features

• Wide Input Voltage Range: 3.6 V to 42 V
• Fixed Output: 3 V, 3.3 V, and 5 V
• ±1% Output Accuracy Under Room Temperature
• Ultra-Low Quiescent Current: 2 μA
• Maximum Output Current: 180 mA
• Low Dropout Voltage: 200 mV at 50 mA
• High PSRR: 73 dB at 100 Hz
• Current Limit and Thermal Protection
• Stable with 2.2 μF to 22-μF Low ESR Ceramic Capacitor
• Soft Start Limits Input Current Surge During Enable
• Thermal Shutdown Protection
• Junction Temperature Range: -40°C to +125°C
• Packages: SOT89-3, SOT23-5, SOT23-3, SOT223-3
