TECH PUBLICDatasheet (PDF)

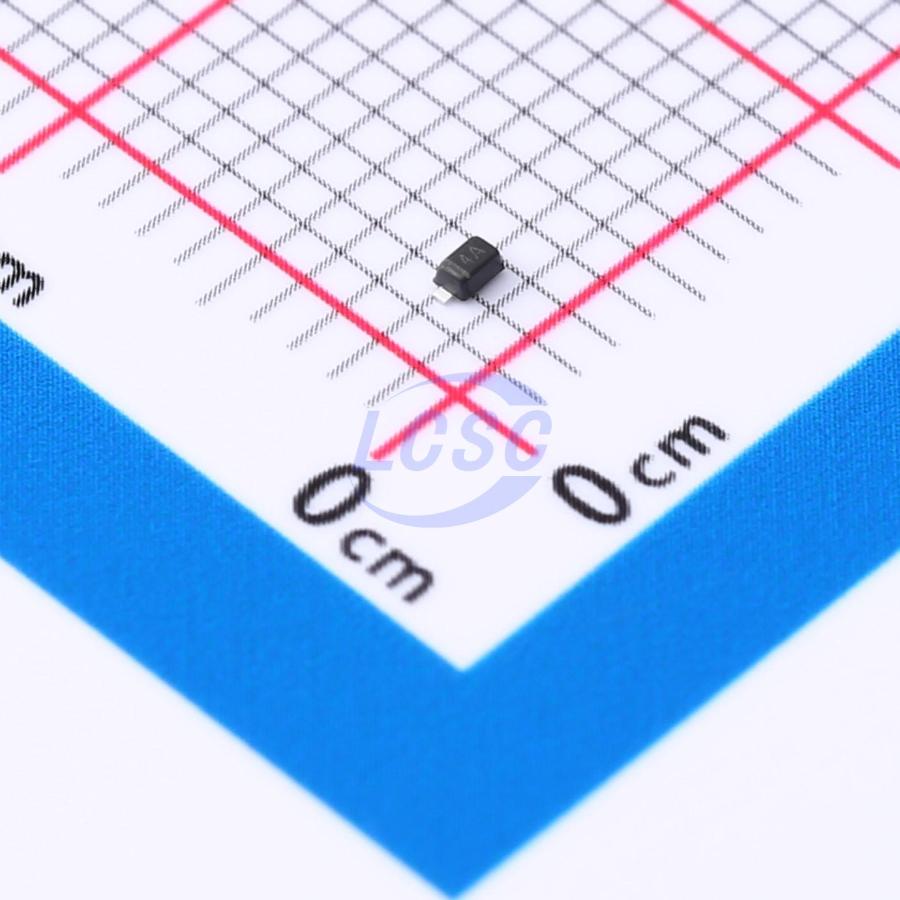

TPMEG2010AEB
Diode 40V Surface Mount SOD-523
SOD-523RoHSActive
DIODE SCHOTTKY 40V SOD-523
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TPMEG2010AEB
- Store part #
- C5310953
- Package / case
- SOD-523
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,600 in stock
#C5310953
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 20+ | ₹5.49 | ₹109.80 |
| 200+ | ₹4.33 | ₹866.00 |
| 600+ | ₹3.69 | ₹2,214.00 |
| 3,000+ | ₹3.02 | ₹9,060.00 |
| 9,000+ | ₹2.69 | ₹24,210.00 |
| 21,000+ | ₹2.50 | ₹52,500.00 |
20 × ₹5.49
₹109.80
excl. GST
₹129.56 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TPMEG2010AEB
₹109.80 for 20 + GST
Specifications
- Diode Configuration
- 1 Independent
- Voltage - DC Reverse (Vr) (Max)
- 40V
- Operating Junction Temperature Range
- -40℃~+125℃
- Pd - Power Dissipation
- 0.5W
- Voltage - Forward(Vf@If)
- 610mV@1A
- Reverse Leakage Current (Ir)
- 40uA@40V
- Non-Repetitive Peak Forward Surge Current
- 7A
- Current - Rectified
- 1A
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 20 (multiples of 20)
- Unit weight
- 0.027 g
Overview
Applications
- Low-current rectification
Key features
- Low forward voltage drop
- Ultra-compact SMD package
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | B1040X#C41348141TECH PUBLIC · SOD-523 | TECH PUBLIC | SOD-523 | 2,140 | ₹3.66 · 2,140 in stock | View |
 | TPMEG2005EB#C47117627TECH PUBLIC · SOD-523 | TECH PUBLIC | SOD-523 | 400 | ₹4.37 · 400 in stock | View |
 | ZLLS350TA-TP#C48886845TECH PUBLIC · SOD-523 | TECH PUBLIC | SOD-523 | 2,960 | ₹4.58 · 2,960 in stock | View |
 | B5819WT#C5310950TECH PUBLIC · SOD-523 | TECH PUBLIC | SOD-523 | 30,300 | ₹5.07 · 30,300 in stock | View |
 | TPMEG3005EB#C5310951TECH PUBLIC · SOD-523 | TECH PUBLIC | SOD-523 | 23,910 | ₹6.02 · 23,910 in stock | View |
