TECH PUBLICDatasheet (PDF)

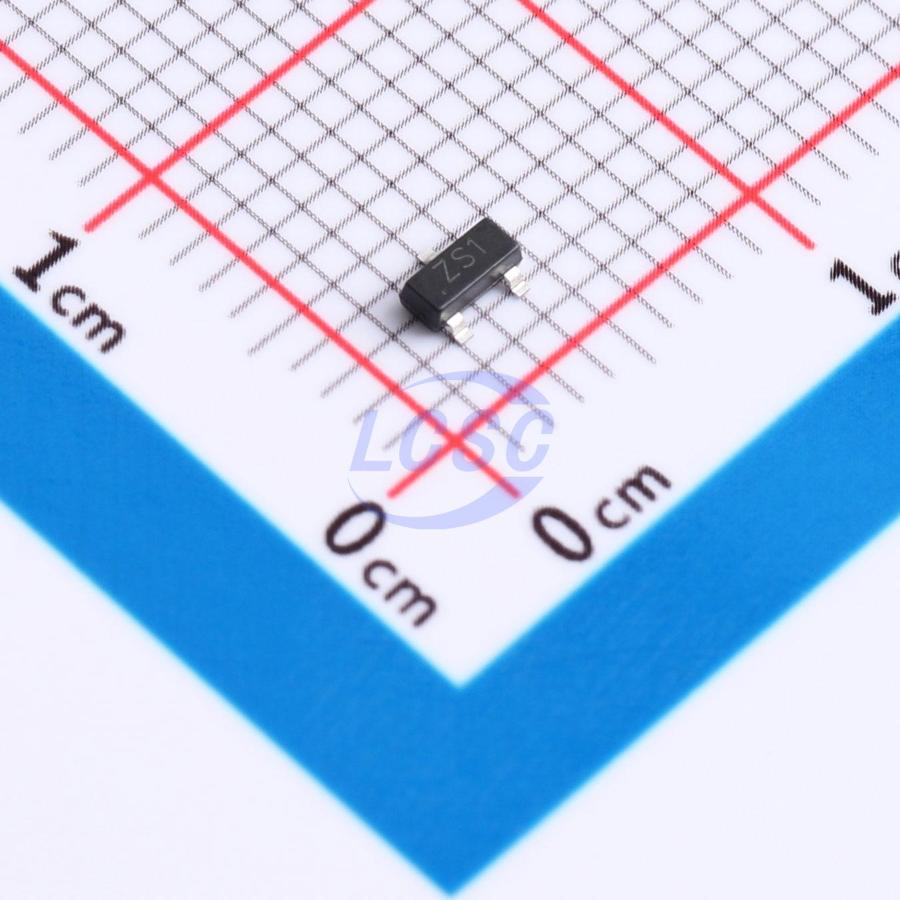

TPMEG3005ET
1 Independent 30V 520mV@500mA 500mA SOT-23 Single Diodes
SOT-23RoHSActive
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TPMEG3005ET
- Store part #
- C52817250
- Package / case
- SOT-23
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,845 in stock
#C52817250
Stock & price checked 15 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹13.27 | ₹66.35 |
| 50+ | ₹10.44 | ₹522.00 |
| 150+ | ₹9.02 | ₹1,353.00 |
| 500+ | ₹7.95 | ₹3,975.00 |
| 3,000+ | ₹7.10 | ₹21,300.00 |
| 6,000+ | ₹6.68 | ₹40,080.00 |
5 × ₹13.27
₹66.35
excl. GST
₹78.29 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TPMEG3005ET
₹66.35 for 5 + GST
Specifications
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -55℃~+150℃
- Voltage - DC Reverse (Vr) (Max)
- 30V
- Voltage - Forward(Vf@If)
- 520mV@500mA
- Reverse Leakage Current (Ir)
- 100uA@30V
- Non-Repetitive Peak Forward Surge Current
- 2A
- Current - Rectified
- 500mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.032 g
Overview
Applications
- Low-voltage rectification
- Reverse polarity protection
- Low-power applications
Key features
- Ultra-low forward voltage, low power dissipation
- Surface mount package
- Ultra-thin profile package for space-constrained applications
- Lead-free process compliant with EU RoHS 2.0
- Green molding compound compliant with IEC 61249
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | BAT750TA(TP)#C53340704TECH PUBLIC · SOT-23 | TECH PUBLIC | SOT-23 | 3,260 | ₹5.13 · 3,260 in stock | View |
 | SB07-03C(TP)#C53340841TECH PUBLIC · SOT-23 | TECH PUBLIC | SOT-23 | 1,620 | ₹3.41 · 1,620 in stock | View |
 | BAT720#C53340858TECH PUBLIC · SOT-23 | TECH PUBLIC | SOT-23 | 2,960 | ₹3.41 · 2,960 in stock | View |
 | TPFYV0704SMTF#C53340947TECH PUBLIC · SOT-23 | TECH PUBLIC | SOT-23 | 2,640 | ₹3.41 · 2,640 in stock | View |
 | TPZLLS500TA#C53340967TECH PUBLIC · SOT-23 | TECH PUBLIC | SOT-23 | 2,980 | ₹3.41 · 2,980 in stock | View |
