TECH PUBLICDatasheet (PDF)

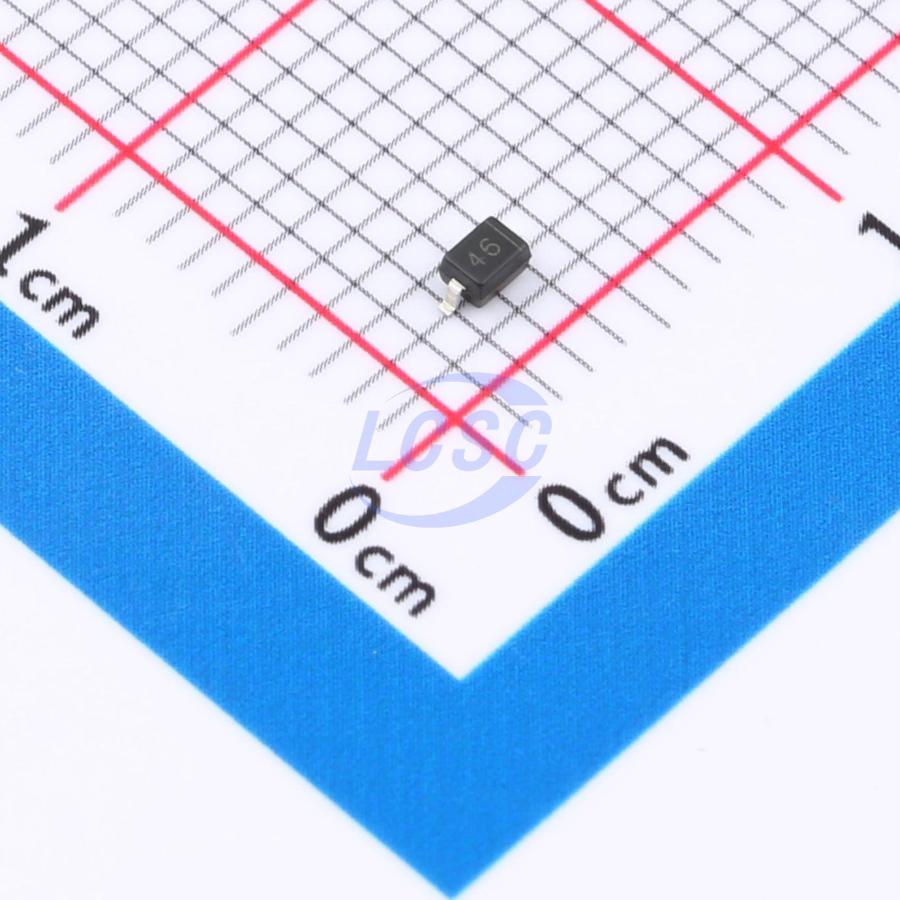

TPNSR02100HT1G
1 Independent 100V 1V@250mA 150mA SOD-323 Single Diodes
SOD-323RoHSActive
Schottky Barrier Rectifiers
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TPNSR02100HT1G
- Store part #
- C49190790
- Package / case
- SOD-323
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,860 in stock
#C49190790
Stock & price checked 11 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 20+ | ₹4.14 | ₹82.80 |
| 200+ | ₹3.23 | ₹646.00 |
| 600+ | ₹2.73 | ₹1,638.00 |
| 3,000+ | ₹2.42 | ₹7,260.00 |
| 9,000+ | ₹2.17 | ₹19,530.00 |
| 21,000+ | ₹2.02 | ₹42,420.00 |
20 × ₹4.14
₹82.80
excl. GST
₹97.70 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TPNSR02100HT1G
₹82.80 for 20 + GST
Specifications
- Diode Configuration
- 1 Independent
- Voltage - DC Reverse (Vr) (Max)
- 100V
- Voltage - Forward(Vf@If)
- 1V@250mA
- Reverse Leakage Current (Ir)
- 5uA@75V
- Non-Repetitive Peak Forward Surge Current
- 750mA
- Current - Rectified
- 150mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 20 (multiples of 20)
- Unit weight
- 0.028 g
Overview
Applications
- Surface mount Schottky barrier rectifier
- Buck and boost DC-DC converters
- Low-voltage high-frequency switching power supplies
- Low-voltage high-frequency inverter circuits
- Low-voltage freewheeling and protection circuits
Key features
- Multi-layer metal-silicon barrier structure
- High current capability, high efficiency
- High junction temperature capability
- Low leakage current
- RoHS compliant
