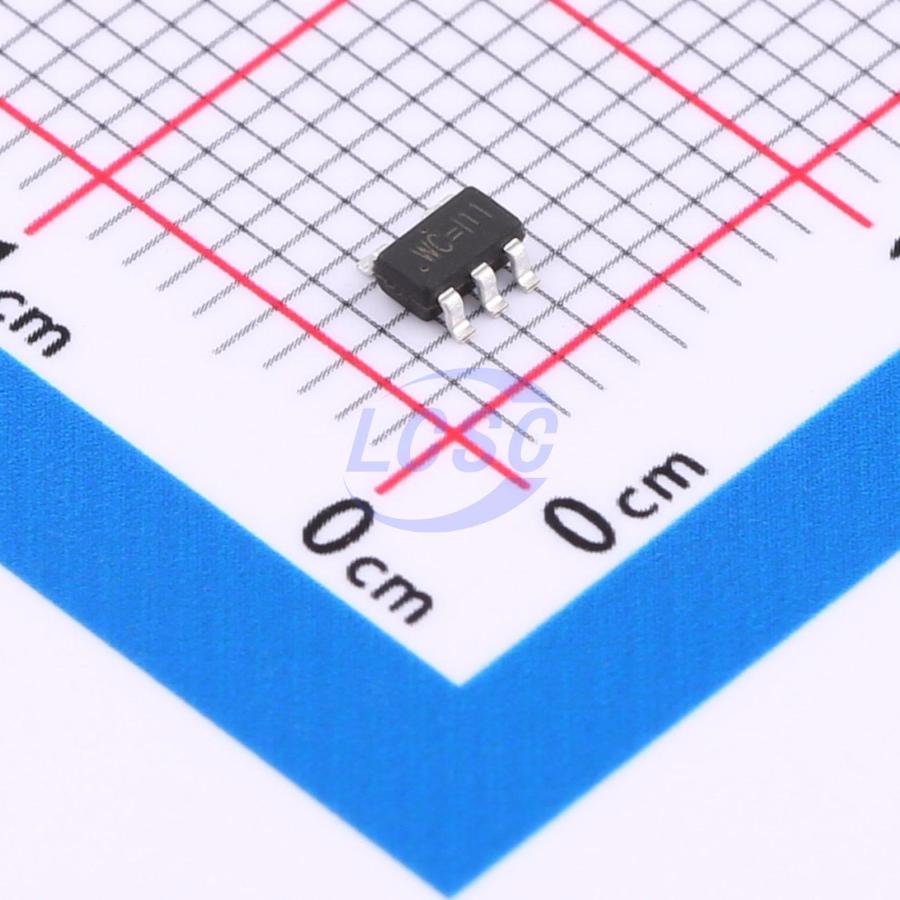

TPRT9013-50GB
5V Positive Fixed SOT-23-5 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
SOT-23-5RoHSActive
500mA High PSRR Voltage Regulator
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TPRT9013-50GB
- Store part #
- C20617298
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5,160 in stock
#C20617298
Stock & price checked 12 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹11.91 | ₹59.55 |
| 50+ | ₹9.30 | ₹465.00 |
| 150+ | ₹8.00 | ₹1,200.00 |
| 500+ | ₹7.03 | ₹3,515.00 |
| 3,000+ | ₹6.24 | ₹18,720.00 |
| 6,000+ | ₹5.85 | ₹35,100.00 |
5 × ₹11.91
₹59.55
excl. GST
₹70.27 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TPRT9013-50GB
₹59.55 for 5 + GST
Specifications
- Output Voltage
- 5V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃@(Ta)
- Supply Current (Iq)
- 60uA
- Output Configuration
- Positive
- Output Current
- 500mA
- Operating Voltage
- 7V
- Features
- Enable control
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.037 g
Overview
The RT9013 is a high-performance, 500mA LDO regulator, offering extremely high PSRR and ultra-low dropout. Ideal for portable RF and wireless applications with demanding performance and space requirements.
Applications
- CDM/GSM mobile phone
- PDAS
- MP3 Audio/Video equipment
Key features
- Quiescent Current: 60uA
- PSRR: 75dB@1KHz
- < 1uA current at shutdown mode
- Output voltage accuracy: tolerance ±2%
- Output current: 500mA(Typ.)
- SOT23-5 package
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SPX3819M5-L-5-0#C20617302TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 875 | ₹18.02 · 875 in stock | View |
 | TPSPX3819M5-L-5-0#C5370987TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 15,015 | ₹16.75 · 15,015 in stock | View |
 | TPMIC5219-5.0YM5#C5370984TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 1,960 | ₹26.17 · 1,960 in stock | View |
