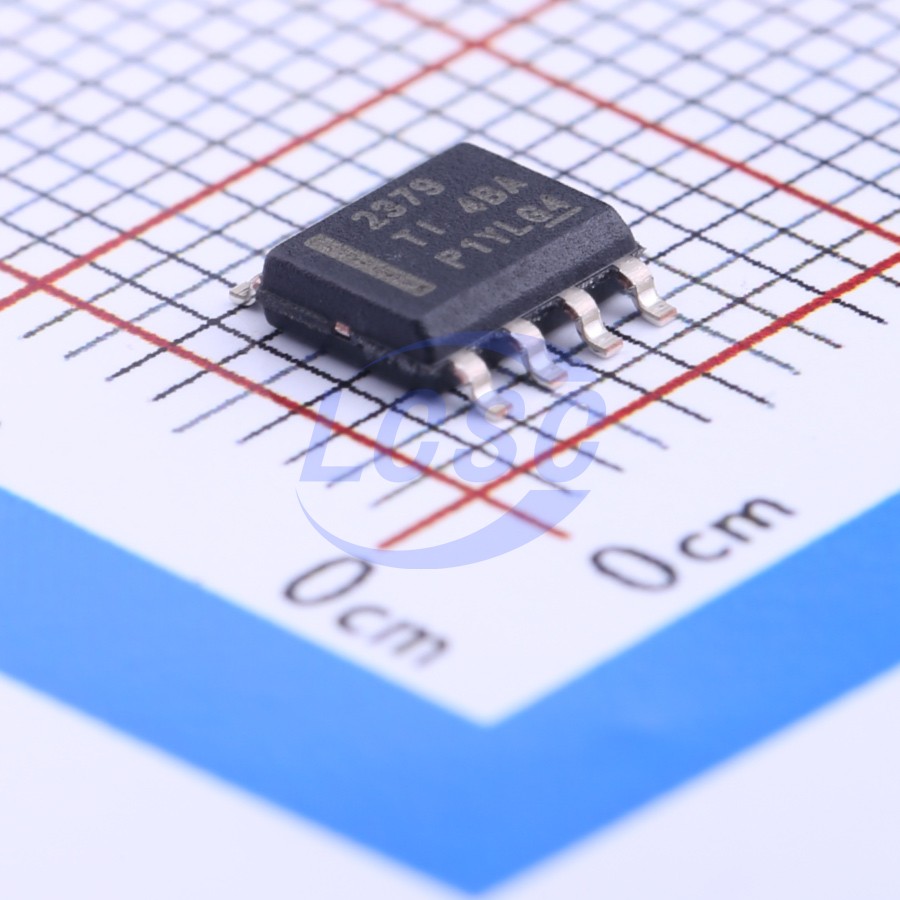

TPS2379DDAR

The TPS2379 device is an 8-pin integrated circuit that contains all of the features needed to implement an IEEE802.3at type-2 powered device (PD) such as Detection, Classification, Type 2 Hardware Classification, and 140 mA inrush current limit during startup. The low 0.5-Ω internal switch resistance, combined with the enhanced thermal dissipation of the PowerPAD package, enables this controller to continuously handle up to 0.85 A. The TPS2379 integrates a low 0.5-Ω internal switch to allow for up to 0.85 A of continuous current through the PD during normal operation. The TPS2379 device supports higher-power applications through an external pass transistor. The TPS2379 contains several protection features such as thermal shutdown, current limit foldback, and a robust 100-V internal switch.

Applications

• IEEE 802.3at-compliant Devices
• Universal Power Over Ethernet (UPOE) Compliant Devices
• Video and VoIP Telephones
• Multiband Access Points
• Security Cameras
• Pico-Base Stations

Key features

• IEEE 802.3at Type-2 Hardware Classification With Status Flag
• Auxiliary Gate Driver for High-Power Expansion
• Robust 100-V, 0.5-Ω Hotswap MOSFET
• 1A (Typical) Operating Current Limit
• 140 mA (Typical) Inrush Current Limit
• DC-DC Converter Enable
• 15 kV/8 kV System-level ESD Capability
• PowerPAD HSOP Package
