TIDatasheet (PDF)

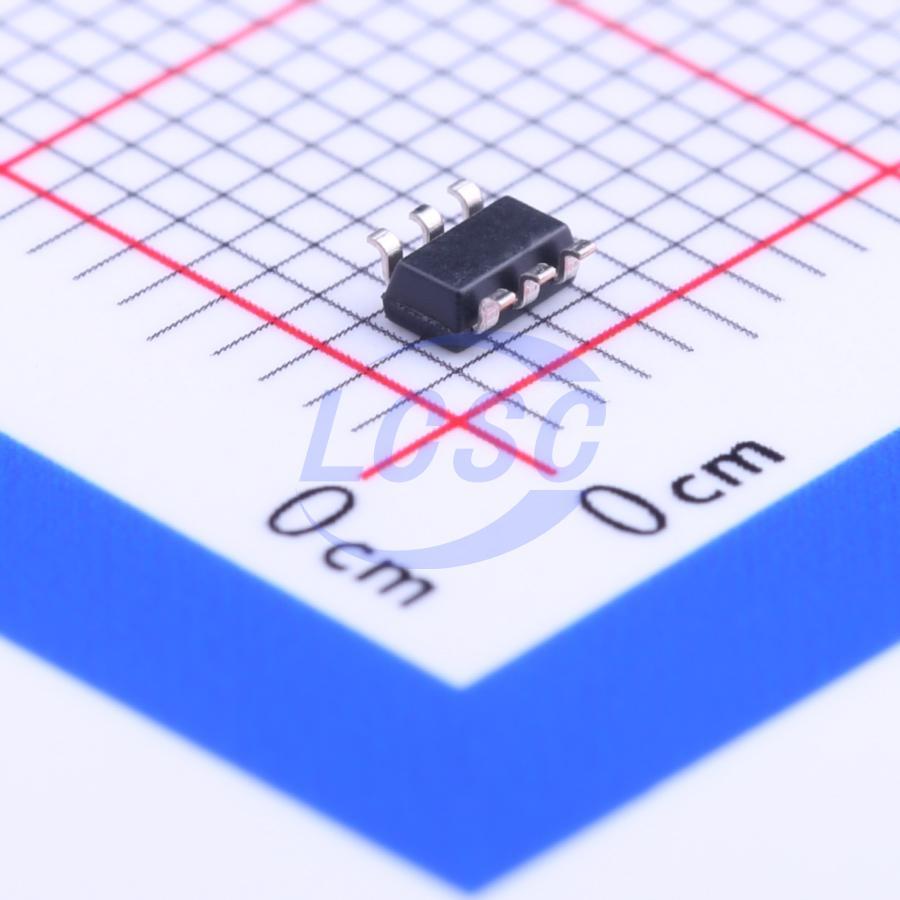

TPS3106K33DBVR
130ms Manual reset input Active Low 900mV~3.6V 2 SOT-23-6 Supervisors RoHS
SOT-23-6ROHS3 CompliantActive
Ultralow Supply-Current Voltage Monitor With Optional Watchdog
- Manufacturer
- TI
- Manufacturer part #
- TPS3106K33DBVR
- Store part #
- C129324
- Package / case
- SOT-23-6
- Category
- Supervisors
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
19,582 in stock
#C129324
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹117.03 | ₹117.03 |
| 10+ | ₹95.07 | ₹950.70 |
| 30+ | ₹83.97 | ₹2,519.10 |
| 100+ | ₹66.14 | ₹6,614.00 |
| 500+ | ₹59.61 | ₹29,805.00 |
| 1,000+ | ₹56.12 | ₹56,120.00 |
1 × ₹117.03
₹117.03
excl. GST
₹138.10 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TPS3106K33DBVR
₹117.03 for 1 + GST
Specifications
- Reset Timeout
- 130ms
- Operating Temperature
- -40℃~+125℃
- output type
- Open-drain
- Function
- Manual reset input
- Reset Active Level
- Active Low
- standby current
- 1.2uA
- Voltage - Supply
- 900mV~3.6V
- ChipType
- Voltage monitor
- Threshold Voltage
- 2.941V
- Number of Voltages Monitored
- 2
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.057 g
Overview
The TPS310x and TPS311x families of supervisory circuits provide circuit initialization and timing supervision, primarily for DSP and processor-based systems.
Applications
- Applications Using Low-Power DSPs, Microcontrollers, or Microprocessors
- Portable and Battery-Powered Equipment
- Intelligent Instruments
- Wireless Communication Systems
- Industrial Equipment
- Notebook and Desktop Computers
Key features
- Precision Supply Voltage Supervision Range: 0.9 V, 1.2 V, 1.5 V, 1.6 V, 2 V, and 3.3 V
- High Trip-Point Accuracy: 0.75%
- Supply Current of 1.2 μA (Typical)
- RESET Defined With Input Voltages as Low as 0.4 V
- Power-On Reset Generator With a Delay Time of 130 ms
- Push/Pull or Open-Drain RESET Outputs
- Package Temperature Range: -40°C to 125°C
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| SGM814-3.3XN6G/TR#C5152477SGMICRO · SOT-23-6 | SGMICRO | SOT-23-6 | On request | ₹97.98 · 0 in stock | View | |
| SGM815-3.3XN6G/TR#C5152479SGMICRO · SOT-23-6 | SGMICRO | SOT-23-6 | On request | ₹97.98 · 0 in stock | View | |
