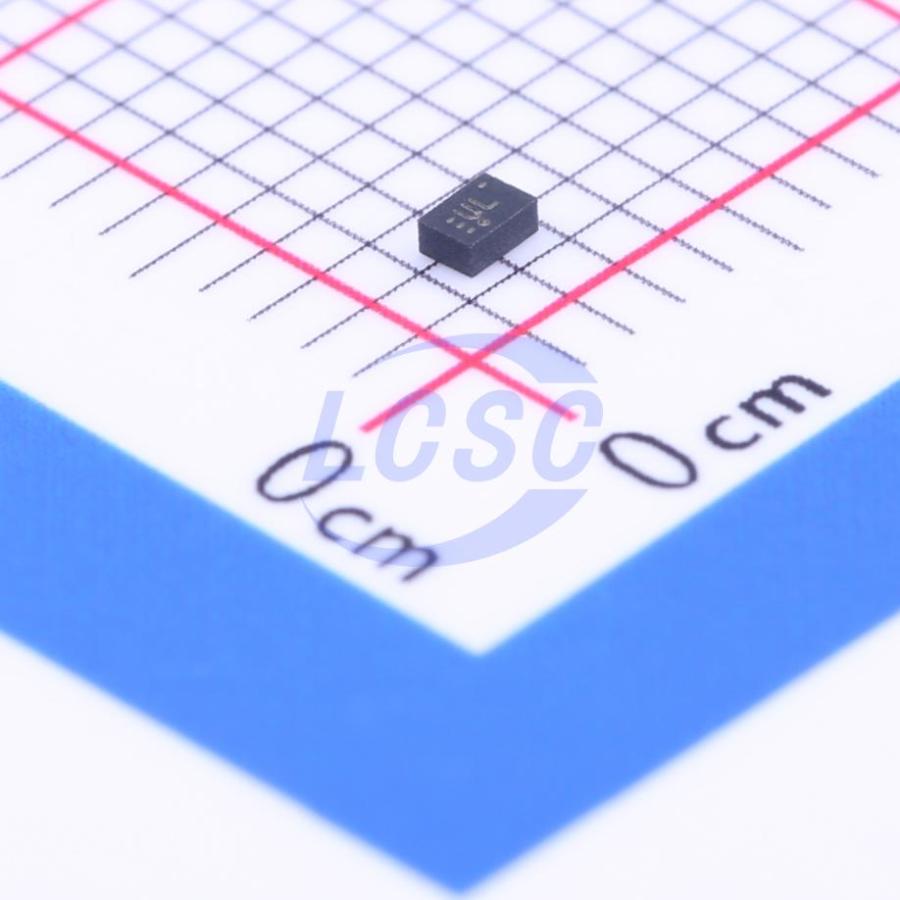

TPS3897ADRYR

The TPS3895, TPS3896, TPS3897, and TPS3898 devices (TPS389x) are a family of very small supervisory circuits that monitor voltages greater than 500 mV with a 0.25% (typical) threshold accuracy and offer adjustable delay time using external capacitors. The TPS389x family also has a logic enable pin (ENABLE or ENABLE) to power on and off the output. All devices operate from 1.7 V to 6.5 V and have a typical quiescent current of 6 μA with an open-drain output rated at 18 V. The TPS389x is available in an ultra-small USON package and is fully specified over the temperature range of TJ = -40°C to 125°C.

Applications

• DSPs, Microcontrollers, and Microprocessors
• Notebook and Desktop Computers
• PDAs and Handheld Products
• Portable and Battery-Powered Products
• FPGAs and ASICs

Key features

• Very Small USON (1.45 mm × 1.00 mm) Package
• Adjustable Threshold Down to 500 mV
• Threshold Accuracy: 1% Over Temperature
• Capacitor-Adjustable Delay Time
• Low Quiescent Current: 6 μA (Typical)
• External Enable Input
• Open-Drain (Rated at 18 V) and Push-Pull Output Options
• Temperature Range: -40°C to 125°C
• Pin-for-Pin Compatible With MAX6895/6/7/8
