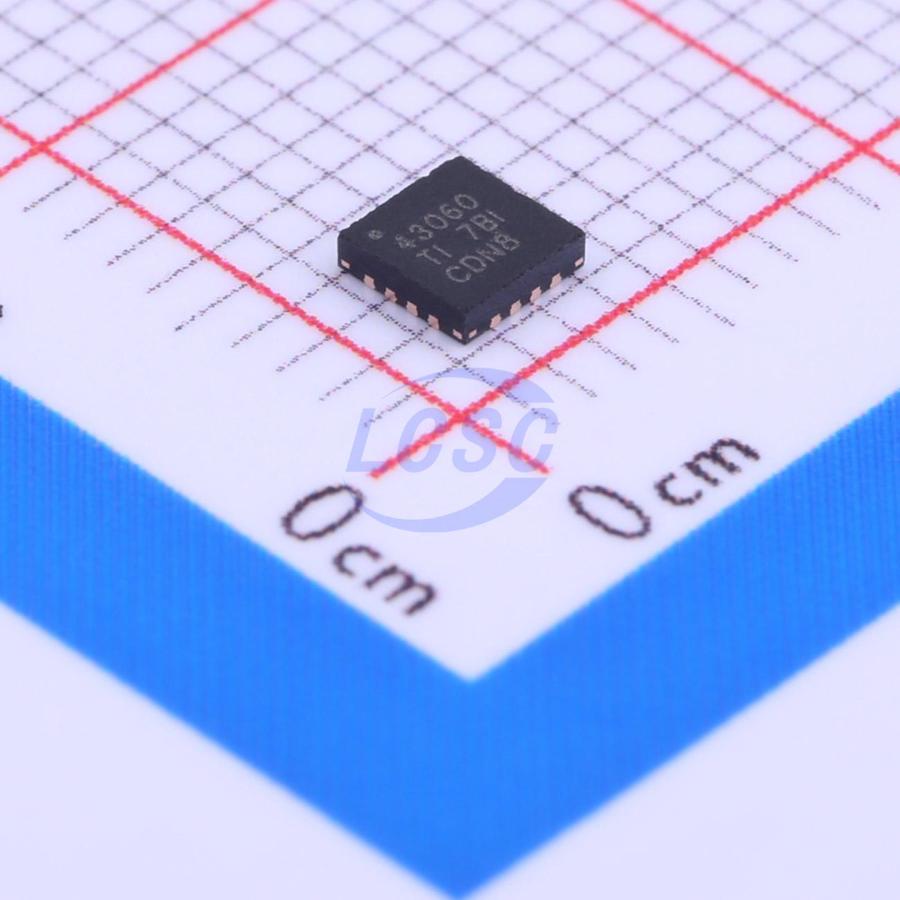

TPS43060RTER

The TPS43060 and TPS43061 are low IQ currentmode synchronous boost controllers with wide-input voltage range from 4.5 to 38 V (40 V absolute max) and boosted output range up to 58 V. Synchronous rectification enables high-efficiency for high-current applications, and lossless inductor DCR sensing further improves efficiency. The resulting low-power losses combined with a 3-mm × 3-mm WQFN-16 package with PowerPAD supports high powerdensity and high-reliability boost converter solutions over extended (-40°C to 150°C) temperature range. The TPS43060 includes a 7.5-V gate drive supply, which is suitable to drive a broad range of MOSFETs. The TPS43061 has a 5.5-V gate drive supply and driver strength optimized for low Qg NexFET power MOSFETs. Also, TPS43061 provides an integrated bootstrap diode for the high-side gate driver to reduce the external parts count.

Applications

• Thunderbolt Port for PCs
• Automotive Power Systems
• Synchronous Flyback
• GaN RF Power Amplifiers
• Tablet Computer Accessories
• Battery-Powered Systems
• 5-V, 12-V, and 24-V DC Bus Power Systems

Key features

• 58-V Maximum Output Voltage
• 4.5 to 38 V (40 V Absolute Max) VIN Range
• TPS43060: 7.5-V Gate Drive Optimized for Standard Threshold MOSFETs
• TPS43061: 5.5-V Gate Drive Optimized for Low Qg NexFET Power MOSFETs
• Current-Mode Control With Internal Slope Compensation
• Adjustable Frequency from 50 kHz to 1 MHz
• Synchronization Capability to External Clock
• Adjustable Soft-Start Time
• Inductor DCR or Resistor Current Sensing
• Output Voltage Power-Good Indicator
• ±0.8% Feedback Reference Voltage
• 5 μA Shutdown Supply Current
• 600-μA Operating Quiescent Current
• Integrated Bootstrap Diode (TPS43061)
• Cycle-by-Cycle Current Limit and Thermal Shutdown
• Adjustable Undervoltage Lockout (UVLO) and Output Overvoltage Protection
• Small 16-Pin WQFN (3 mm × 3 mm) Package With PowerPAD
• -40°C to 150°C Operating TJ Range
