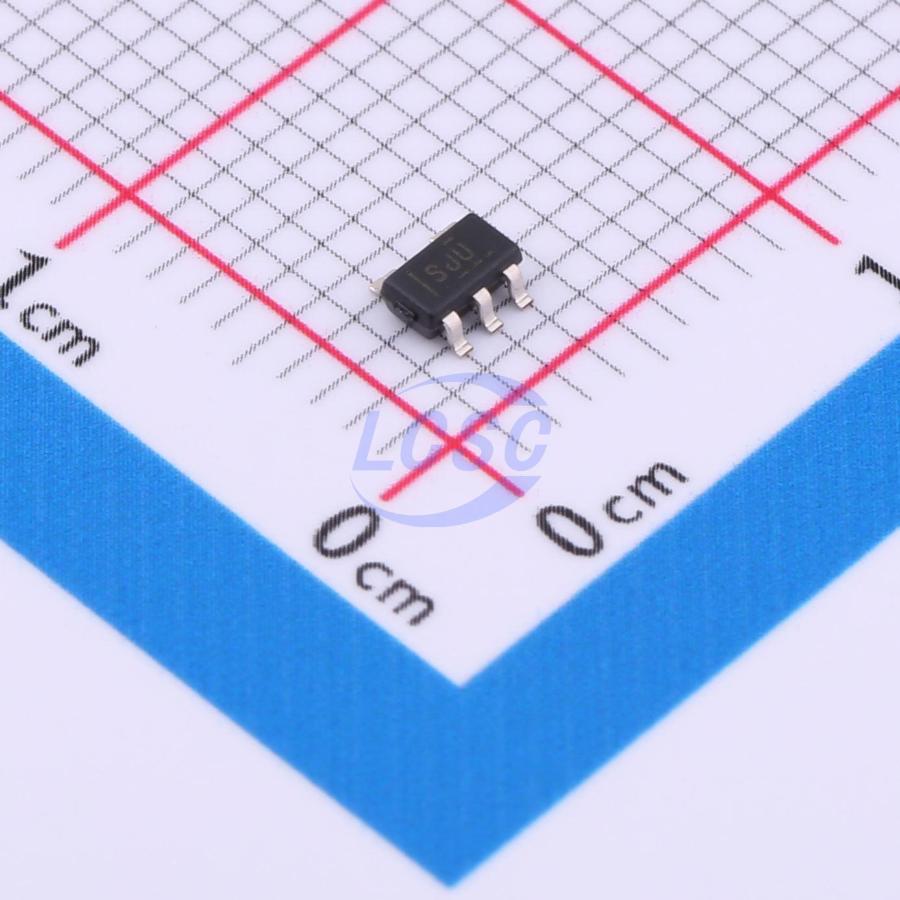

TPS70628DBVR
Linear Voltage Regulator IC Positive Fixed 1 Output 150mA SOT-23-5
SOT-23-5ROHS3 CompliantActive
150mA, ultra-low IQ, low-dropout regulator with reverse current protection and enable function
- Manufacturer
- TI
- Manufacturer part #
- TPS70628DBVR
- Store part #
- C544956
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
531 in stock
#C544956
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹67.71 | ₹67.71 |
| 10+ | ₹57.38 | ₹573.80 |
| 30+ | ₹49.88 | ₹1,496.40 |
| 100+ | ₹43.79 | ₹4,379.00 |
| 500+ | ₹41.97 | ₹20,985.00 |
| 1,000+ | ₹40.75 | ₹40,750.00 |
1 × ₹67.71
₹67.71
excl. GST
₹79.90 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TPS70628DBVR
₹67.71 for 1 + GST
Specifications
- Output Voltage
- 2.8V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Tj)
- Supply Current (Iq)
- 1uA
- Output Configuration
- Positive
- Operating Voltage
- 6.5V
- Output Current
- 150mA
- Features
- Enable control;Reverse-polarity current protection;Over Current Protection;Thermal shutdown;Input under-voltage protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 4 g
Overview
The TPS706 series linear regulators are ultra-low quiescent current devices designed for power-sensitive applications. A precision bandgap and error amplifier provides 2% accuracy over the temperature range. The 1μA quiescent current makes these devices an ideal solution for always-on, battery-powered systems that require very low idle-state power dissipation. The series also features thermal shutdown, current limiting, and reverse current protection for enhanced device safety. Pulling the EN pin low places the regulator into shutdown mode, with a shutdown current as low as 150nA (typical). The TPS706 series is available in WSON-6 and SOT-23-5 packages.
Applications
- Smartphones and tablets
- Portable and battery-powered applications
- Camera modules
- Set-top boxes
- Wearable products
- Solid-state drives
- Medical devices
Key features
- Input voltage range: 2.7V to 6.5V
- Ultra-low IQ: 1μA
- Reverse current protection
- Low ISHDN: 150nA
- 200mA peak output capable
- Low dropout: 245mV at 50mA
- 2% accuracy over temperature range
- Fixed output voltage options: 1.2V to 5V
- Thermal shutdown and overcurrent protection
- Package: SOT-23-5, WSON
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | LW3128A23E#C47018725Lewa Micro · SOT-23-5L | Lewa Micro | SOT-23-5L | 2,980 | ₹7.47 · 2,980 in stock | View |
 | GS2019-28TR5#C42385257Gainsil · SOT-23-5 | Gainsil | SOT-23-5 | 2,850 | ₹8.97 · 2,850 in stock | View |
 | SK6017S5-28#C2682753Suntek · SOT-23-5L | Suntek | SOT-23-5L | 2,905 | ₹12.58 · 2,905 in stock | View |
 | LP2985A-28DBVR#C2870435TI · SOT-23-5 | TI | SOT-23-5 | 20 | ₹285.58 · 20 in stock | View |
 | TPS70928DBVR-TP#C51886226TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 2,350 | ₹16.09 · 2,350 in stock | View |
