XC6206P332MRLinear Voltage Regulator IC Positive Fixed 1 Output 250mA SOT-23
From
₹2.71
17,51,550 in stock
TIDatasheet (PDF)

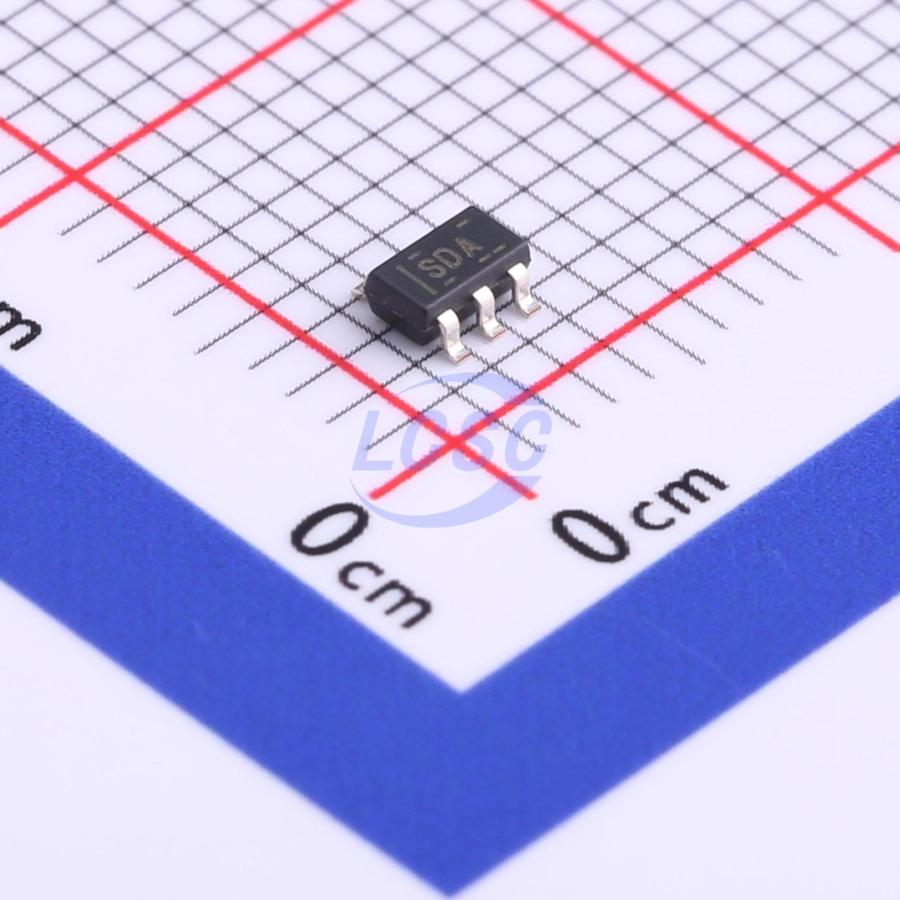

TPS70918DBVR
Linear Voltage Regulator IC Positive Fixed 1 Output 150mA SOT-23-5
SOT-23-5ROHS3 CompliantActive
150mA, 30V ultra-low IQ, low-dropout regulator with reverse current protection and enable function
- Manufacturer
- TI
- Manufacturer part #
- TPS70918DBVR
- Store part #
- C779346
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
225 in stock
#C779346
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹177.52 | ₹177.52 |
| 10+ | ₹149.19 | ₹1,491.90 |
| 30+ | ₹133.41 | ₹4,002.30 |
| 100+ | ₹115.89 | ₹11,589.00 |
| 500+ | ₹107.89 | ₹53,945.00 |
| 1,000+ | ₹104.44 | ₹1,04,440.00 |
1 × ₹177.52
₹177.52
excl. GST
₹209.47 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TPS70918DBVR
₹177.52 for 1 + GST
Specifications
- Output Voltage
- 1.8V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃
- Supply Current (Iq)
- 1uA
- Output Configuration
- Positive
- Operating Voltage
- 30V
- Output Current
- 150mA
- Features
- Enable control;Reverse-polarity current protection;Thermal shutdown;Over Current Protection;Input under-voltage protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.036 g
Overview
The TPS709 series linear regulators are ultra-low quiescent current devices designed for power-sensitive applications. A precision bandgap and error amplifier provides 2% accuracy over the temperature range. With a quiescent current of only 1μA, these devices are an ideal solution for always-on, battery-powered systems that require very low idle-state power consumption. For added safety, these devices also feature thermal shutdown, current limiting, and reverse current protection. Shutdown mode is enabled by pulling the EN pin low. The shutdown current in this mode is as low as 150nA (typical). The TPS709 series is available in WSON-6 and SOT-23-5 packages.
Applications
- Zigbee networks
- Home automation
- Metering
- Electronic scales
- Portable power tools
- Remote control devices
- Wireless headsets, smartphones, PDAs, WLANs, and other PC expansion cards
- Large home appliances
Key features
- Ultra-low IQ: 1μA
- Reverse current protection
- Low ISHUTDOWN: 150nA
- Input voltage range: 2.7V to 30V
- Supports 200mA peak output
- 2% accuracy over temperature range
- Fixed output voltage options: 1.2V to 6.5V
- Thermal shutdown and overcurrent protection
- Package: SOT-23-5, WSON-6
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TPS70918QDBVRQ1#C2877701TI · SOT-23-5 | TI | SOT-23-5 | 48 | ₹256.44 · 48 in stock | View |
 | LW6518A23E#C51953208Lewa Micro · SOT-23-5L | Lewa Micro | SOT-23-5L | 2,950 | ₹8.51 · 2,950 in stock | View |
 | TPS70918DBVR-TP#C50314381TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 9,775 | ₹12.09 · 9,775 in stock | View |
 | PJ54DM18SE#C41398496PJSEMI · SOT-23-5 | PJSEMI | SOT-23-5 | 500 | ₹16.47 · 500 in stock | View |
 | SL54M18SE#C5185895Slkor · SOT-23-5 | Slkor | SOT-23-5 | 2,545 | ₹17.20 · 2,545 in stock | View |
