TIDatasheet (PDF)

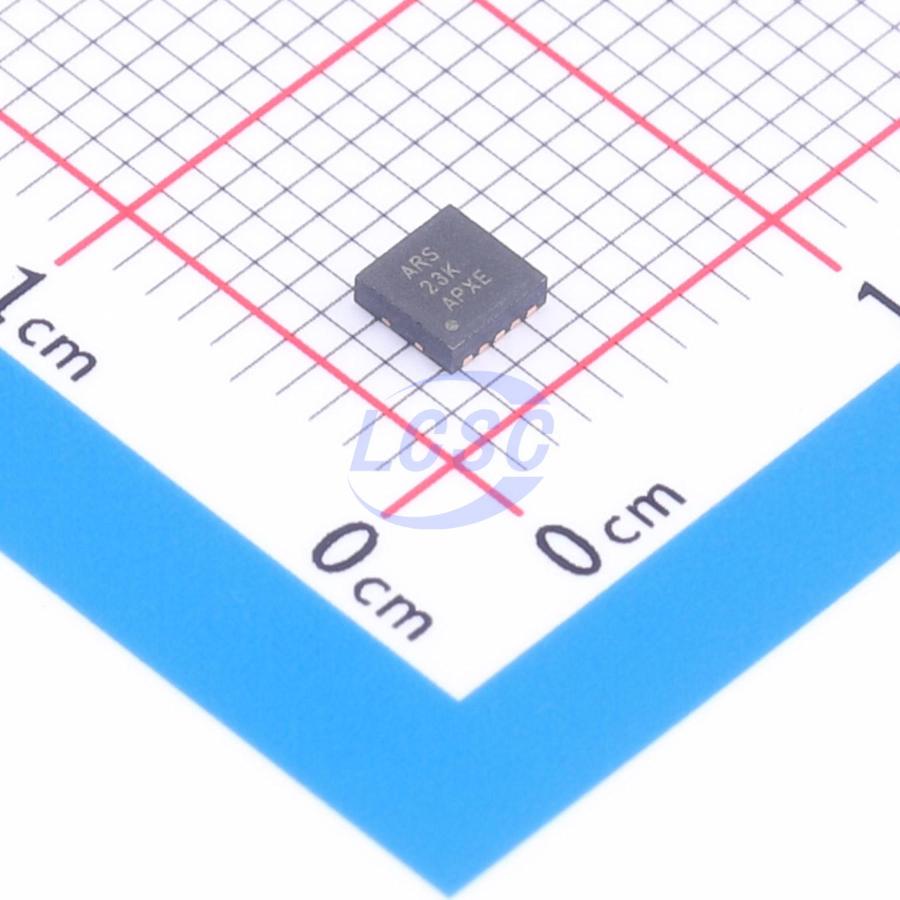

TPS71247DRCR
Positive Fixed VSON-10-EP(3x3) Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
VSON-10-EP(3x3)ROHS3 CompliantActive
250mA, dual-channel low-dropout regulator with enable functionality
- Manufacturer
- TI
- Manufacturer part #
- TPS71247DRCR
- Store part #
- C2871253
- Package / case
- VSON-10-EP(3x3)
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10 in stock
#C2871253
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹479.27 | ₹479.27 |
| 10+ | ₹468.17 | ₹4,681.70 |
| 30+ | ₹460.77 | ₹13,823.10 |
| 100+ | ₹453.38 | ₹45,338.00 |
1 × ₹479.27
₹479.27
excl. GST
₹565.54 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TPS71247DRCR
₹479.27 for 1 + GST
Specifications
- Output Voltage
- 1.8V;2.85V
- Number of Outputs
- 2
- Operating Temperature
- -40℃~+125℃@(Tj)
- Supply Current (Iq)
- 600uA
- Output Configuration
- Positive
- Operating Voltage
- 5.5V
- Output Current
- 250mA
- Output Type
- Fixed
- Features
- Enable control;Thermal shutdown;Input under-voltage protection;Noise bypass terminal;Over Current Protection
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 1.78 g
Overview
Dual ±50 mA High-Performance RF LDOs Available in Fixed and Adjustable Voltage Options (1.2 V to 5.5 V) High PSRR: 65 dB at 10 kHz • UltraLow Noise: 32 μVrms Fast Start-Up Time: 60 μs Stable with 2.2 μF Ceramic Capacitor Excellent Load/Line Transient Response Very Low Dropout Voltage: 125 mV at 250 mA Independent Enable Pins Thermal Shutdown and Independent Current Limit Available in Thermally-Enhanced SON Package: 3mm x 3mm x 1mm
Applications
- Cellular and Cordless Phones
- Wireless PDA/Handheld Products
- PCMCIA/Wireless LAN Applications
- Digital Camera/Camcorder/Internet Audio
- DSP/FPGA/ASIC/Controllers and Processors
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| TPS71247DRCT#C2876567TI · VSON-10-EP(3x3) | TI | VSON-10-EP(3x3) | On request | ₹550.62 · 0 in stock | View | |
| ISL9014IRKCZ#C3750223RENESAS · DFN-10(3x3) | RENESAS | DFN-10(3x3) | On request | ₹175.31 · 0 in stock | View | |
| ISL9014AIRKCZ-T#C7211487RENESAS · DFN-10(3x3) | RENESAS | DFN-10(3x3) | On request | ₹326.60 · 0 in stock | View | |
| ISL9000AIRKCZ-T#C3746059RENESAS · DFN-10(3x3) | RENESAS | DFN-10(3x3) | On request | ₹165.92 · 0 in stock | View | |
| ISL9000AIRKCZ#C3752423RENESAS · DFN-10(3x3) | RENESAS | DFN-10(3x3) | On request | ₹169.38 · 0 in stock | View | |
