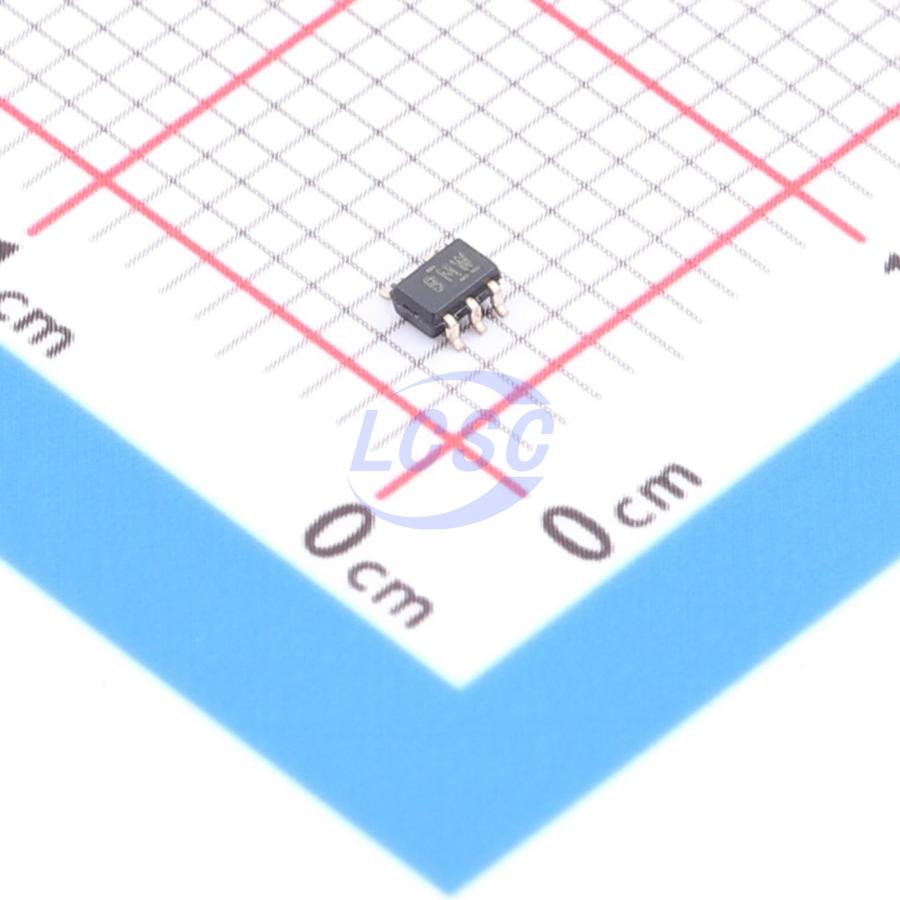

TPS71713DCKR

The TPS717xx series low-dropout (LDO), low-power linear regulators are available in an ultra-small 5-pin small-outline transistor (SOT) package, featuring very high power supply rejection ratio (PSRR) while maintaining an ultra-low ground current of 45μA. These regulators employ an advanced BiCMOS process and PMOSFET passive devices to achieve fast startup, ultra-low noise, excellent transient response, and outstanding PSRR performance. The TPS717xx devices remain stable when operating with a 1μF ceramic output capacitor, and utilize a precision voltage reference and feedback loop to achieve a minimum accuracy of 3% across all load, line, process, and temperature variations. The device series is rated for an operating temperature range of TJ = -40°C to 125°C, and is available in a small SOT (SC70-5) package, a 2mm×2mm WSON-6 package with thermal pad, and a 1.5mm×1.5mm WSON-6 package, making it ideal for compact portable devices such as wireless handhelds and PDAs.

Applications

• Camera sensor power supply
• Mobile phone headset
• PDA and smartphone
• Wireless LAN, Bluetooth

Key features

• Input voltage: +2.5V to +6.5V
• Multiple output versions available: fixed output voltage range: 0.9V to 5V, adjustable output voltage range: 0.9V to 6.2V
• Ultra-high PSRR: 70dB at 1kHz, 67dB at 100kHz, 45dB at 1MHz
• Excellent load and line transient response
• Ultra-low dropout: 170mV (typical) at 150mA
• Low noise: 30μVRMS typical (100Hz to 100kHz)
• Compact 5-pin SC-70, 2mm×2mm WSON-6, and 1.5mm×1.5mm WSON-6 packages
