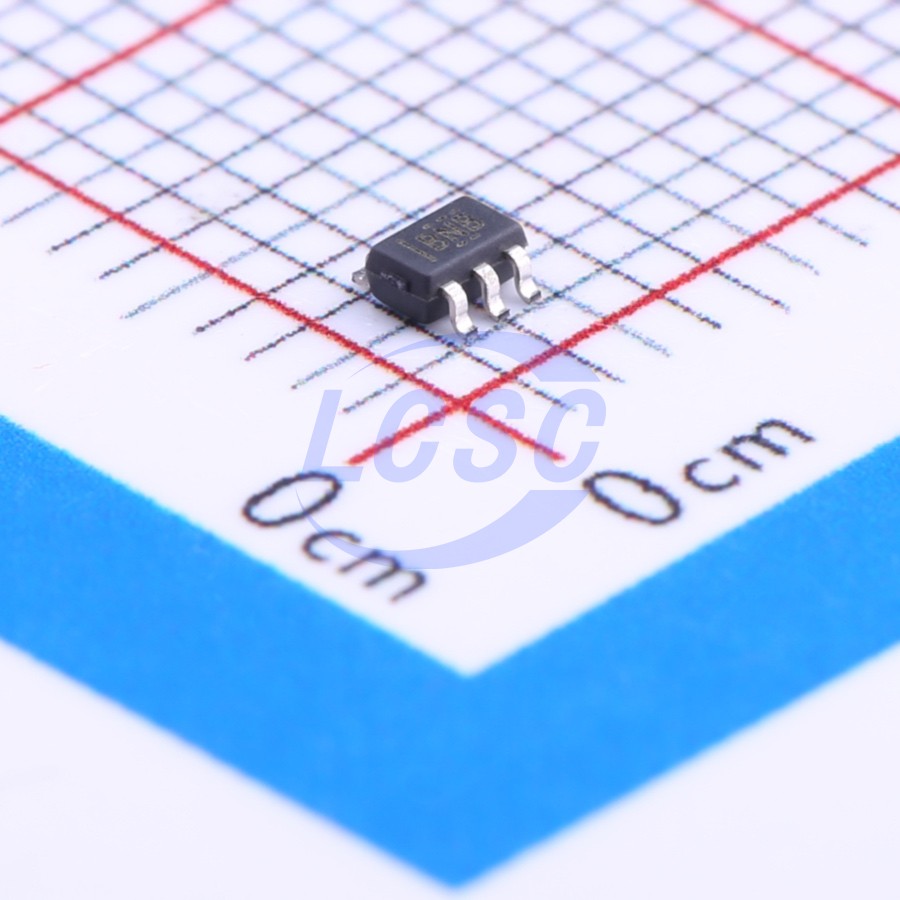

TPS71733DCKR

The TPS717 family of low-dropout (LDO), low-power linear regulators offers very high power-supply rejection (PSRR) while maintaining very low 45-μA ground current in an ultra-small, five-pin SOT package. The family uses an advanced BiCMOS process and a PMOS pass device to achieve fast start-up, very low noise, excellent transient response, and excellent PSRR performance. The TPS717 is stable with a 1-μF ceramic output capacitor and uses a precision voltage reference and feedback loop to achieve a worst-case accuracy of 3% over all load, line, process, and temperature variations. The device family is fully specified from TJ = -40℃ to 125℃ and is offered in a small SOT (SC70-5) package, a 2-mm x 2-mm WSON-6 package with a thermal pad, and a 1.5-mm x 1.5-mm WSON-6 package, which are ideal for small form factor portable equipment (such as wireless handsets and PDAs).

Applications

• Camera Sensor Power
• Mobile Phone Handsets
• PDAs and Smartphones
• Wireless LAN
• Bluetooth

Key features

• Input Voltage: 2.5 V to 6.5 V
• Available in Multiple Output Versions: Fixed Output with Voltages from 0.9 V to 5 V
• Adjustable Output Voltage from 0.9 V to 6.2 V
• Ultra-High PSRR: 70 dB at 1 kHz, 67 dB at 100 kHz, and 45 dB at 1 MHz
• Excellent Load and Line Transient Response
• Very Low Dropout: 170 mV typical at 150 mA
• Low Noise: 30 μV RMS typical (100 Hz to 100 kHz)
• Small 5-pin SC-70, 2 mm × 2 mm WSON-6, and 1.5-mm × 1.5-mm WSON-6 Packages
